ECHOMAP™ Ultra 2 10 Chartplotters, 102sv with GT56UHD-TM Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

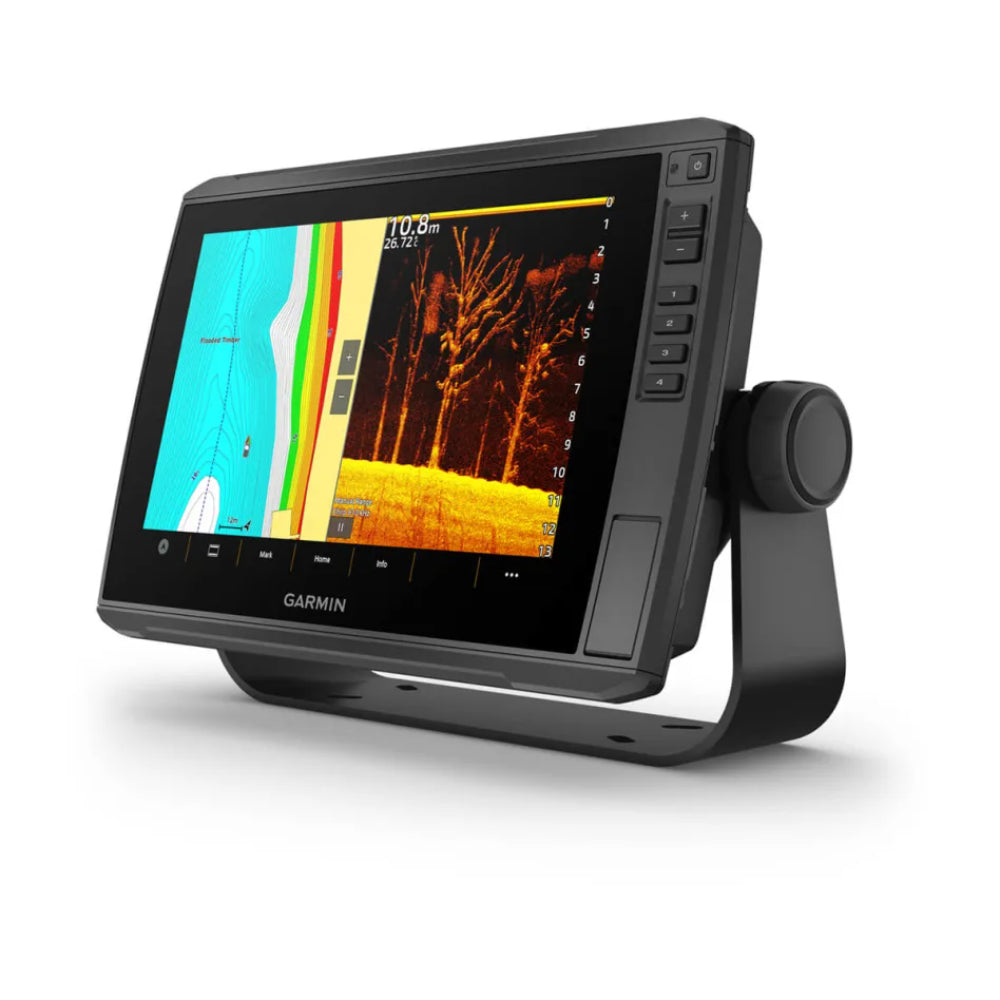

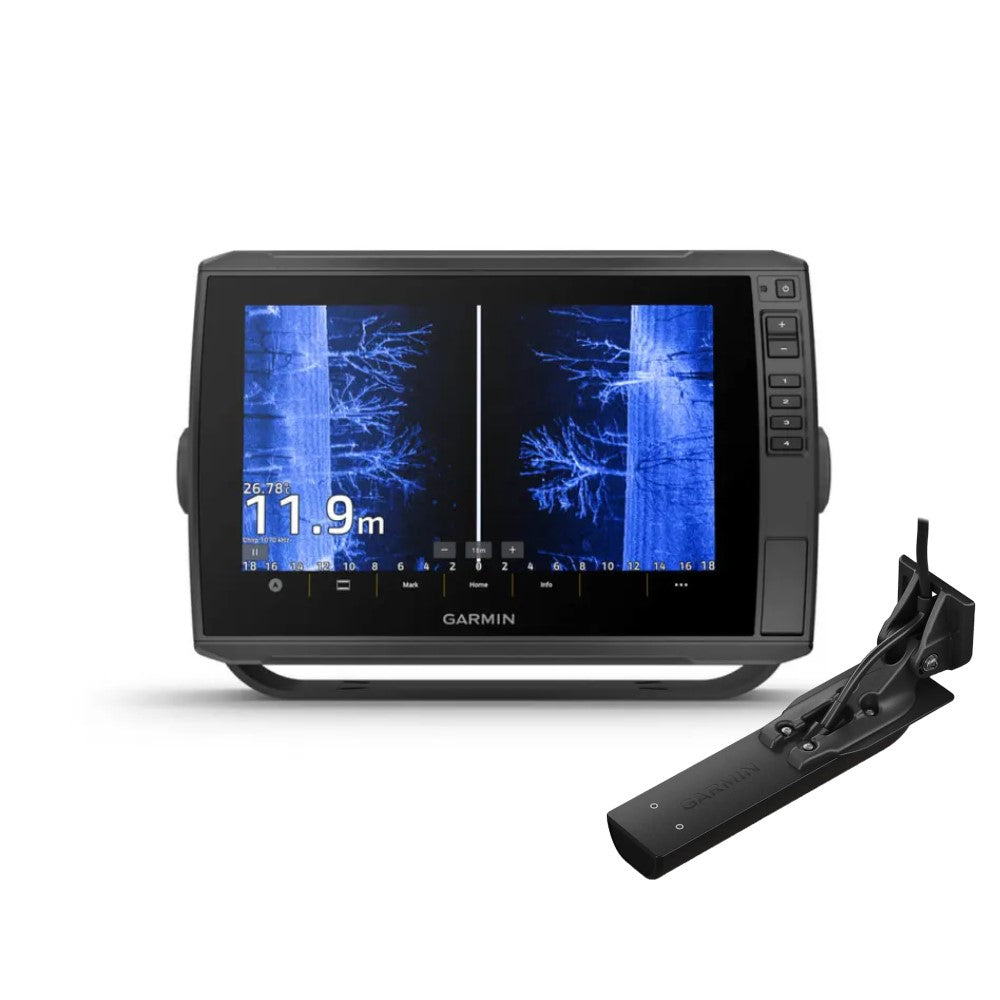

The ECHOMAP Ultra 2 102sv pairs premium big-screen performance with the included Garmin GT56UHD-TM transom-mount transducer, so it is ready to fish straight from the box. The 10-inch touchscreen with keyed assist and high-resolution WXGA display shows mapping and sonar in superb detail, and the GT56UHD-TM delivers Ultra High-Definition Garmin ClearVu and SideVu scanning sonar alongside traditional CHIRP at 600 W RMS. A dedicated Garmin network port lets you add the full LiveScope live scanning sonar range, while twin microSD slots accept cards up to 1 TB for premium charts and Quickdraw Contours mapping. Built-in high-sensitivity GPS, Wi-Fi and ActiveCaptain app connectivity keep you positioned and up to date, and NMEA 2000 connectivity supports integration with sensors and engine data. The IPX7-rated housing handles spray and rain.
PRODUCT DETAILS
- 10-inch touchscreen chartplotter with keyed assist and high-resolution WXGA (1280 x 800) display
- Supplied with the Garmin GT56UHD-TM transom-mount transducer, ready to fish out of the box
- Ultra High-Definition ClearVu and SideVu scanning sonar plus traditional CHIRP at 600 W RMS
- Compatible with the full Garmin LiveScope live scanning sonar range via the network port
- Two microSD card slots up to 1 TB; built-in GPS, Wi-Fi and ActiveCaptain app connectivity
- Compatible with Garmin Navionics+ and Navionics Vision+ premium charts
- NMEA 2000 connectivity and IPX7 waterproof rating

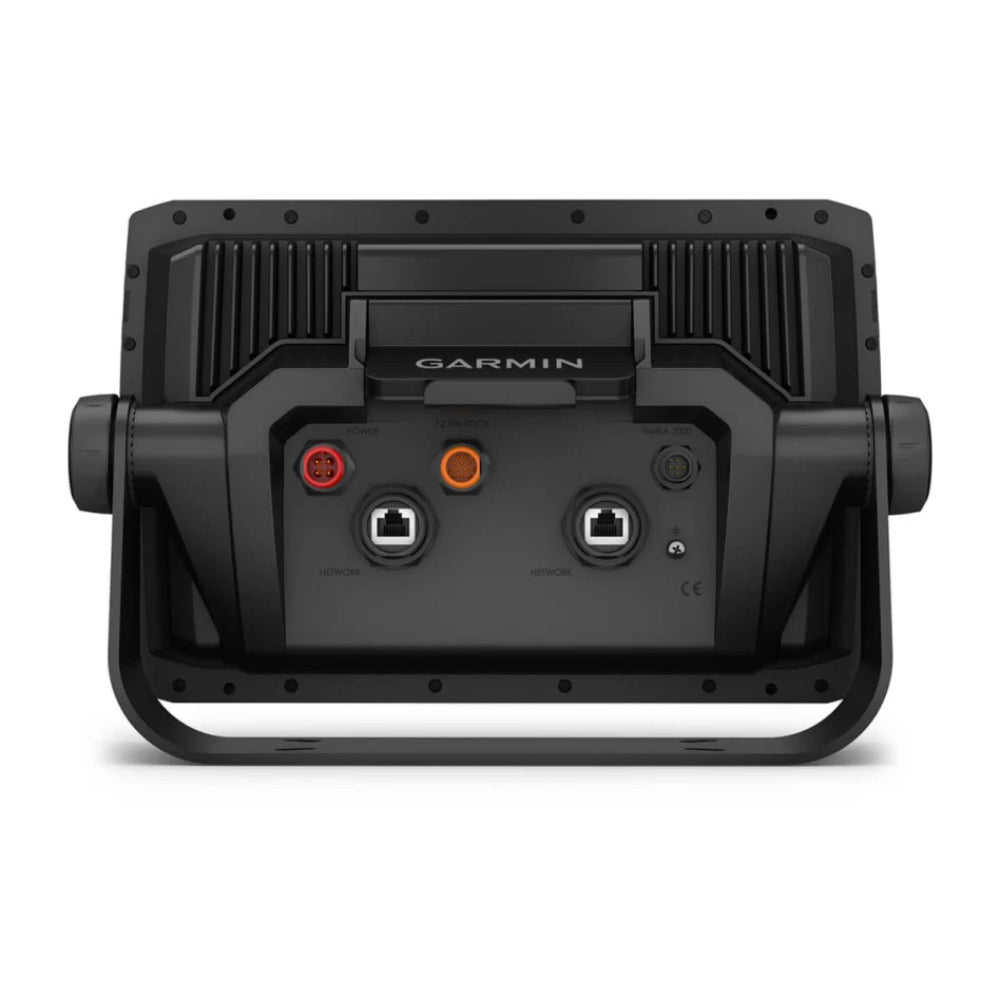

- ECHOMAP Ultra 2 102sv chartplotter

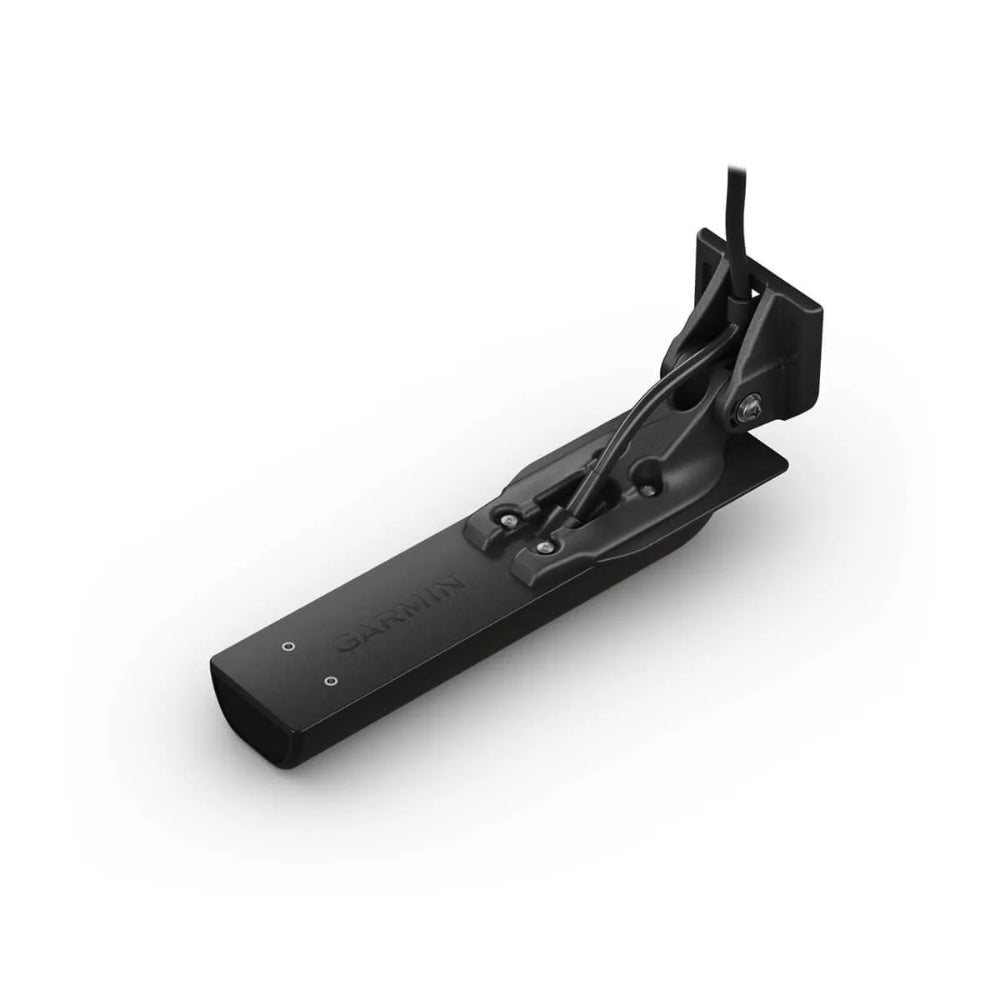

- Garmin GT56UHD-TM transom-mount transducer

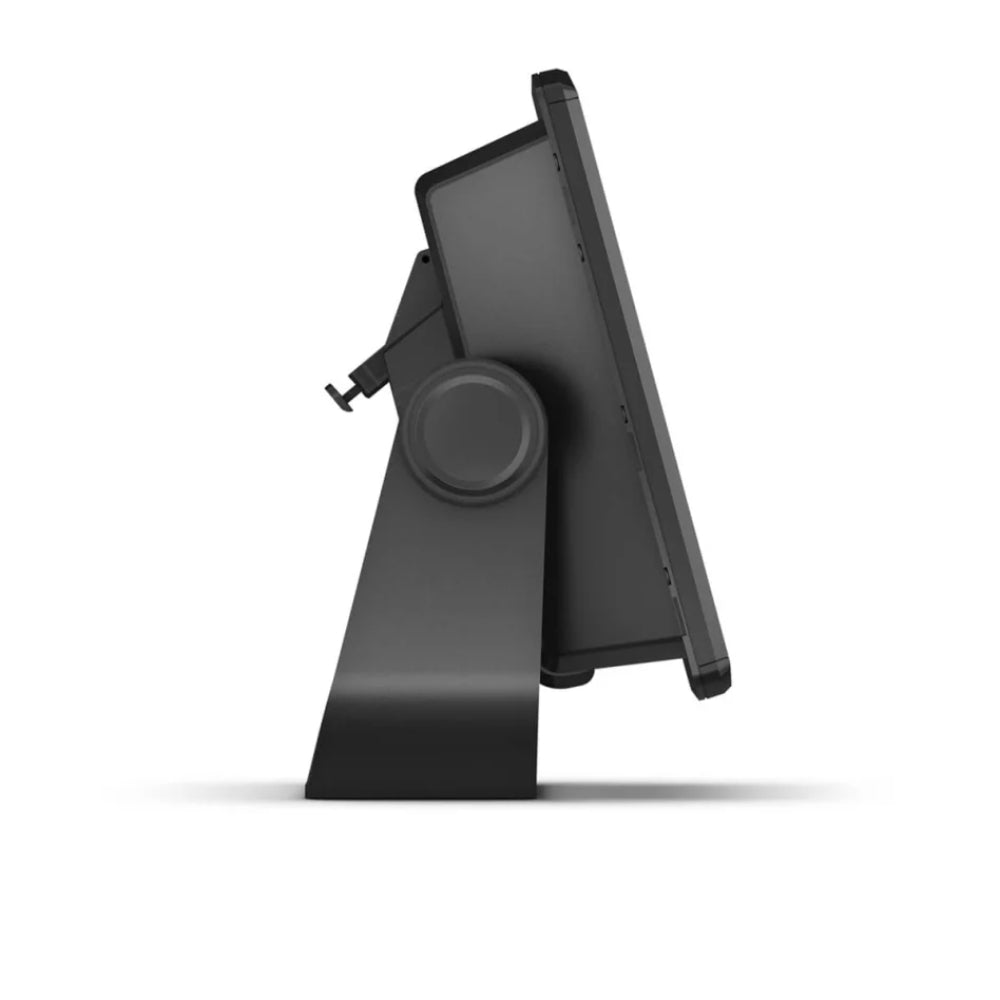

- Tilt/swivel bail mount with knobs
- Flush-mount kit and hardware
- Protective sun cover
- Power cable
- Documentation
