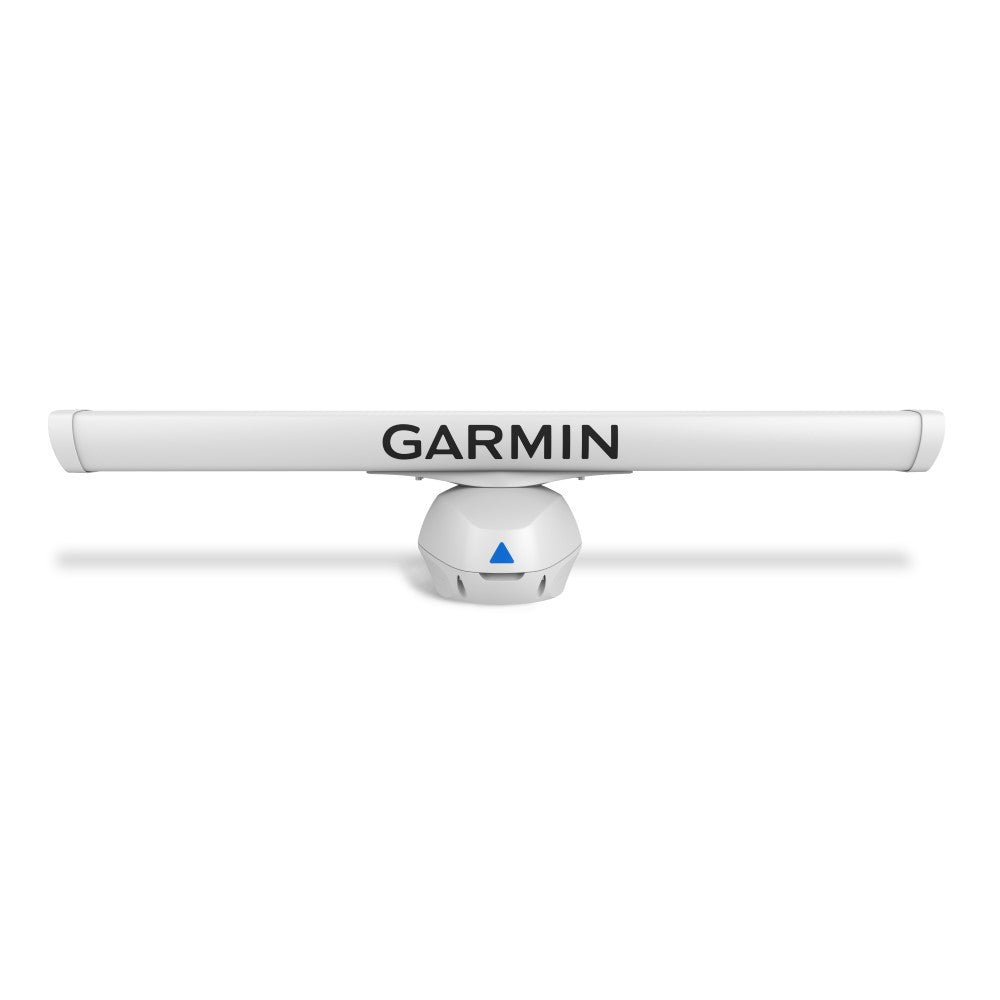

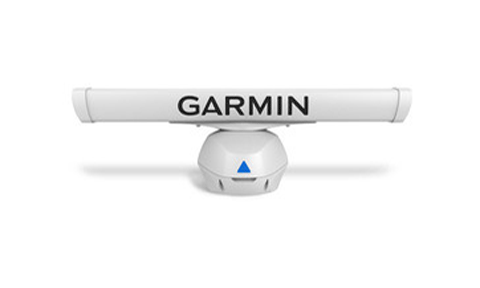

Garmin GMR Fantom 54
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The GMR Fantom 54 delivers solid-state CHIRP pulse-compression performance with 50 W of peak power, approximately equivalent to a 6 kW magnetron. This combination provides excellent close-in and long-range detection while running cooler and using less energy than a traditional magnetron radar.
MotionScope Doppler technology highlights moving targets in colour, making it easy to identify potential collision threats, flocks of birds and approaching weather at a glance. Auto Bird Gain optimises gain to reveal feeding birds, while MARPA tracks up to 10 targets simultaneously for confident situational awareness.
The open-array form factor combines a compact pedestal with a 4 ft array that rotates at up to 48 RPM for fast target updates. Dual-range scanning with overlay lets you watch near and far at once, controlled through a compatible Garmin chartplotter over BlueNet or the Garmin Marine Network. This model is supplied in a white housing and is rated to IPX6 with an 80 kn wind rating.
PRODUCT DETAILS
- Solid-state CHIRP pulse-compression radar with MotionScope Doppler technology
- 50 W solid-state power, approximately equivalent to a 6 kW magnetron
- 4 ft (1.2 m) open array with a sharp 1.8 degree horizontal beamwidth
- Detects targets out to 72 nautical miles
- Antenna rotation up to 48 RPM for rapid target updates
- MARPA target tracking of up to 10 targets simultaneously
- Dual-range scanning with radar overlay
- Garmin BlueNet and Marine Network compatible, IPX6 rated
- Open-array pedestal
- 4 ft open-array antenna
- Antenna mounting hardware
- Garmin BlueNet network cable (15 m)
- Power cable with in-line fuse (15 m)
- Grounding and mounting hardware and template
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Garmin GPSMAP® 723, Non-sonar with Worldwide Basemap
Garmin GPSMAP 723xsv, SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap
GPSMAP 923, Non-sonar with Worldwide Basemap
Garmin GPSMAP 923xsv, SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap
Garmin GPSMAP 1223, Non-sonar with Worldwide Basemap
GPSMAP 1223xsv, SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap
Garmin GPSMAP 1022 Chartplotter with 10 inch Screen and Keypad
Garmin GPSMAP 1022xsv Chartplotter Sonar Combo with 10 inch Screen and Keypad
Garmin GPSMAP 1222 Chartplotter with 12 inch Screen and Keypad
Garmin GPSMAP 1222xsv Chartplotter Sonar Combo with 12 inch Screen and Keypad
Radar
| Transmitter Type | Solid-state CHIRP pulse compression with MotionScope Doppler |
| Peak Power Output | 50 W (approximately equivalent to a 6 kW magnetron) |
| Maximum Range | 72 nautical miles |
| Minimum Range | 6 m (20 ft) |
| Antenna Size | 4 ft (1.2 m) open array |
| Antenna Rotation Speed | 24 RPM and 48 RPM (48 RPM in single-range mode, MotionScope disabled, range 12 nmi or lower) |
| Horizontal Beamwidth | 1.8 degrees |
| Vertical Beamwidth | 22 degrees |
| Target Tracking (MARPA) | Up to 10 targets simultaneously |
| Transmitter Centre Frequency | 9335 to 9455 MHz |
| Bearing Accuracy | 0.25 degrees |
Electrical
| Input Voltage | 10 to 32 Vdc |
| Power Consumption | Typical 65 W; Maximum 170 W |
| Fuse | 15 A blade-type (30 A blade-type when used with the voltage converter) |
Connectivity
| Networking | Garmin BlueNet and Garmin Marine Network compatible |
Physical
| Pedestal Weight | 15.8 kg (34.8 lb) |
| Antenna Weight | 5.2 kg (11.4 lb) |
| Antenna Type | End-fed slotted waveguide |
| Antenna Length | 132.8 cm (4 ft 4 5/16 in) |
| Pedestal Height to Top of Antenna | 40.3 cm (15 7/8 in) |
| Colour | White |
Environmental
| Operating Temperature Range | -15 to 55 C (5 to 131 F) |
| Maximum Wind Load | 80 kn |
| Humidity | 95% at 35 C (95 F) |
| Water Rating | IEC 60529 IPX6 (protected against heavy seas) |
| Compass-Safe Distance | 30 cm (11.8 in) |
| Minimum Safe Operating Distance | 100 W/m2 = 0.12 m; 50 W/m2 = 0.17 m; 10 W/m2 = 0.38 m |
