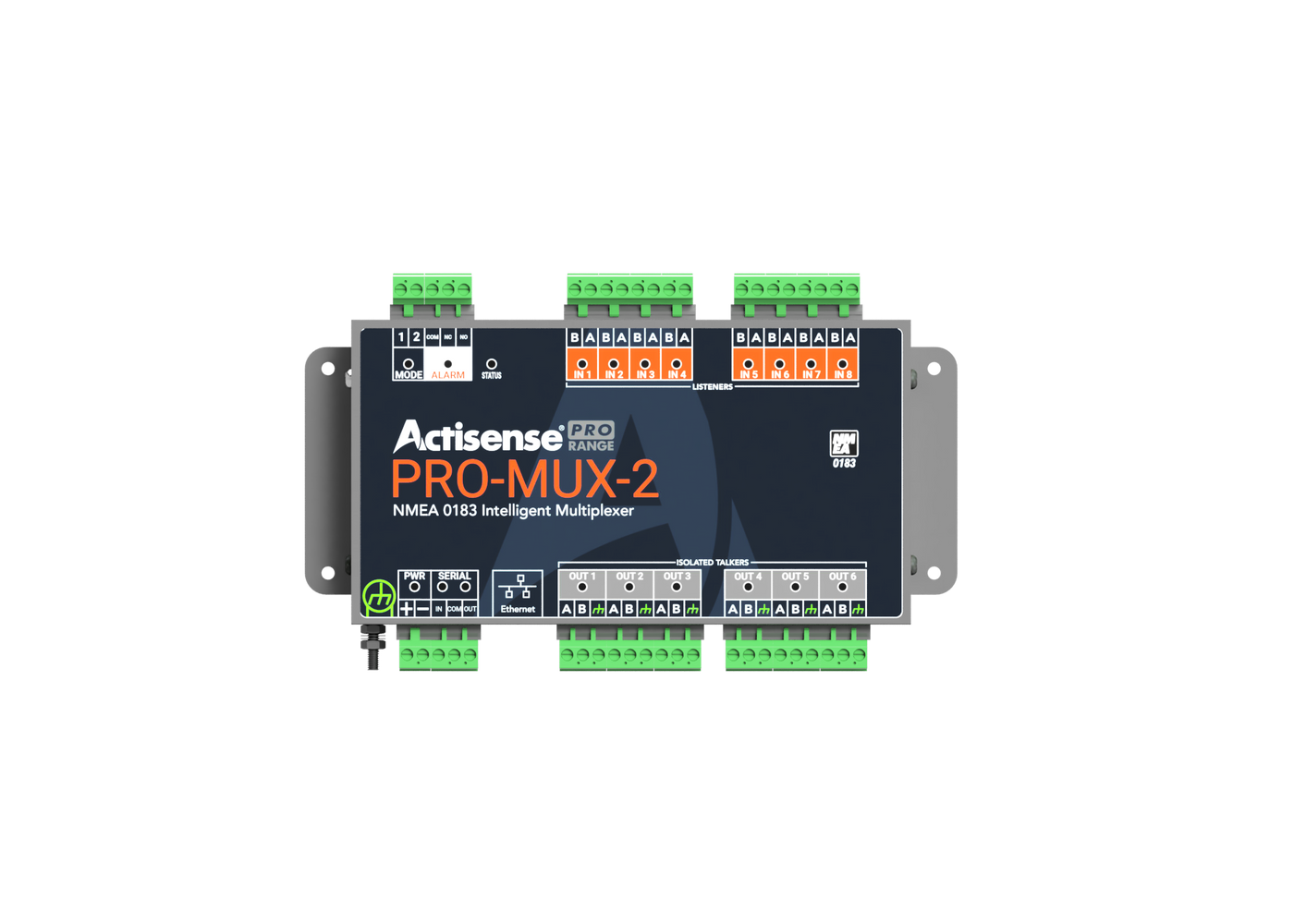

Actisense 8 OPTO inputs, 6 ISO-Drive outputs, Serial, Ethernet port, advanced data filtering and routing, pluggable screw terminals
Eight OPTO-isolated inputs and six ISO-Drive™isolated outputs. Offering device protection and excellent flexibility, all in one product.

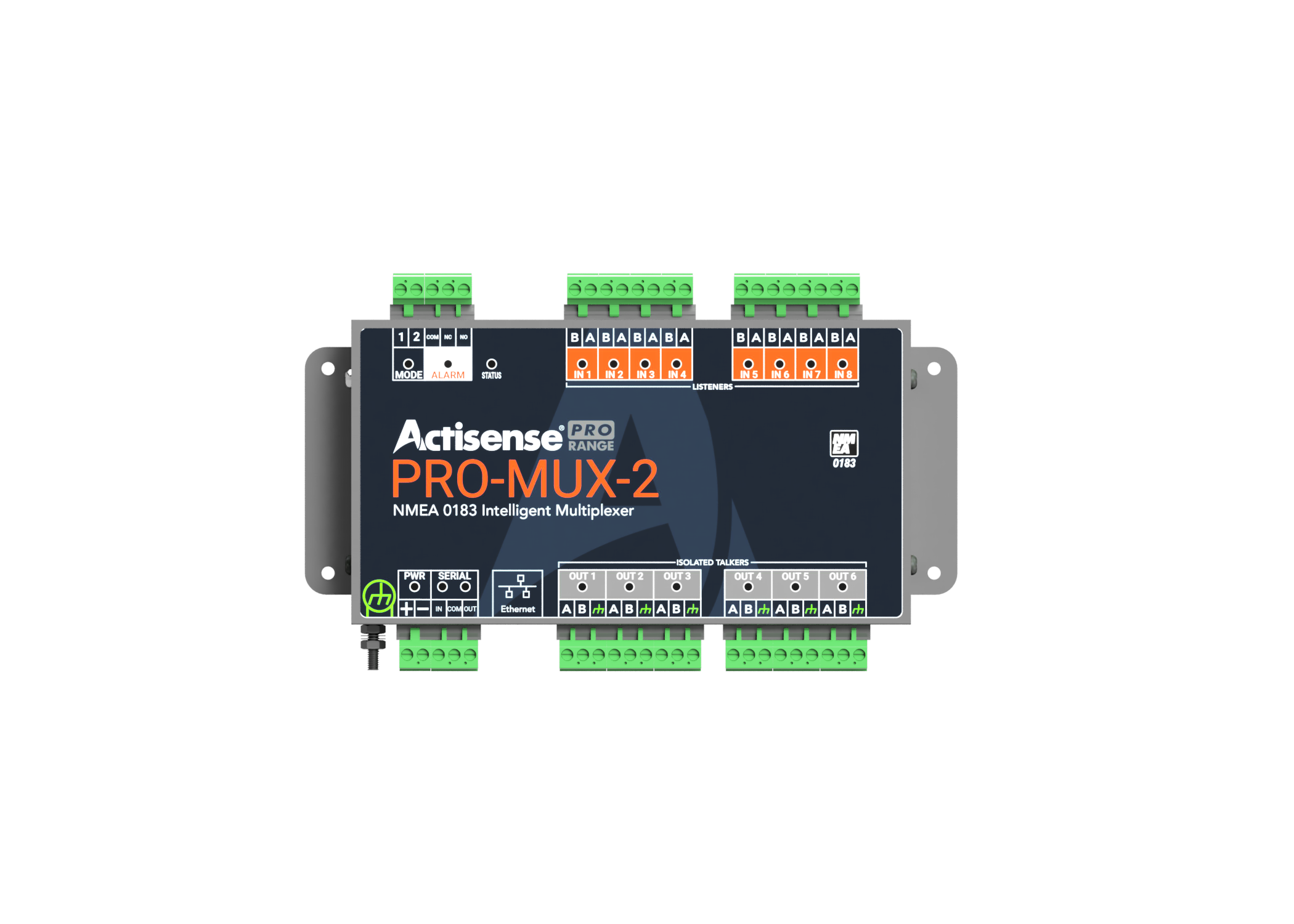

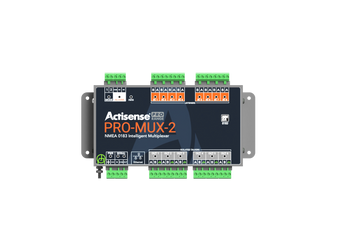

Introducing the Actisense® PRO-MUX-2, the intelligent, type-approved PRO range multiplexer.
The PRO-MUX-2 is rugged, with a stainless steel housing, and provides isolation on all inputs and outputs. With eight NMEA 0183 inputs, six NMEA 0183 outputs, a bi-directional serial port and an Ethernet port, the PRO-MUX-2 is a perfect solution for larger leisure vessels, commercial shipping and is a great addition for systems that require type-approved devices.
The PRO-MUX-2 is designed to suit the majority of NMEA 0183 systems, from leisure through to class vessels.
Multiplexers are typically used to combine multiple instruments data output into a smaller number of outputs. As you can’t connect two talkers to one listener directly, a multiplexer allows for the data to be output through one talker connection.
An example of this could be on a commercial vessel with multiple NMEA 0183 GPS, wind, AIS and depth instruments. To get all of this data combined and sent to a display or converted via an NGX to NMEA 2000, a PRO-MUX-2 can be used.
With the PRO-MUX-2, the data can be filtered, passed or blocked and monitored, giving greater flexibility and control over all instrument data.
/Actisense - 2023 Press Pack/Product Illustrations/PRO-MUX-2-Network-Diagram-768x541.png)
