Garmin Panoptix LiveScope Explore

All Seeing Sonar

New Panoptix all-seeing sonar is unlike anything you've ever seen on the water, this could be the most amazing sonar technology ever. It gives you the ability to see all around your boat in real time and in 3 dimensions. And now there's Panoptix LiveScope™ live scanning sonar, the most amazing sonar technology ever. Whether cruising or fishing, Panoptix transducers are available in Forward and Down configurations with mounting styles to suit your boating needs.



Garmin Panoptix LiveScope

Garmin LiveScope Forward

Garmin LiveScope Down

Garmin Panoptix LiveScope

Clearly, this is the most amazing sonar technology ever. You have never fished like this before. Panoptix LiveScope is live, real-time scanning sonar. You can actually see easy-to-interpret live scanning sonar images of fish swimming near clearly defined structure. You can even see your lure as you retrieve it. And your boat doesn't need to be moving. These images are so clear and precise that with a little practice, you might be able to distinguish between species of fish!


Key Features

See highly detailed, easy-to-interpret live scanning sonar images of structure, bait and fish swimming below and around your boat in real time, even when your boat is stationary

Easily adjust the transducer to fit your fishing techniques; point forward to see around your boat, or point down to see directly below your boat

See incredibly sharp, real-time scanning sonar images up to 200 feet (61 m) down and away

Attitude Heading Reference System (AHRS) stabilises sonar view on chartplotter screen, even in rough conditions

Simple plug-and-play Garmin Marine Network connector makes it easy to install and seamlessly integrate with your compatible Garmin chartplotter


Two Modes in one Transducer

You get both LiveScope™ Down and LiveScope™ Forward modes in one transducer. It's easy to adjust the transducer mode to fit your fishing techniques; use LiveScope Forward to see remarkably clear images of structure and swimming fish around your boat and use LiveScope Down to see directly below your boat. The view automatically updates on your compatible Garmin chartplotter. AHRS stabilisation keeps your sonar view steady, even in rough conditions.


Panoptix LiveScope Forward

LiveScope Forward mode is an excellent tool for scouting and fishing out ahead of your cast. You're looking at live, highly detailed and easy-to-interpret scanning sonar images of structure and fish swimming all around your boat — up to 200 feet (61 m) — even while your boat is stationary.


Panoptix LiveScope Down

LiveScope Down mode allows you to see live, easy-to-interpret scanning sonar images of structure and swimming fish in incredible detail below your boat — up to 200 feet (61 m) — even while your boat is stationary.


Garmin Marine Network

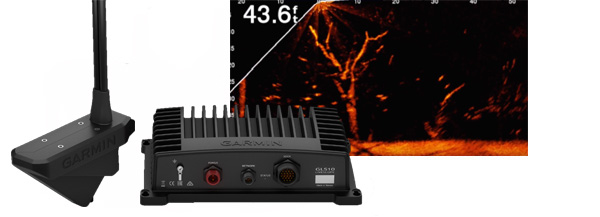

The Panoptix LiveScope scanning sonar system includes a compact GLS 10 sonar black box with LVS32 transducer and simple plug-and-play Garmin Marine Network connector, making it easy to install and seamlessly integrate with your compatible Garmin chartplotter. Use the transducer as a supplemental traditional and ClearVü sonar source to see a historical representation of structure and fish below your boat.


Transducer Mounting Options

Transom Mount

Shaft Mount

Trolling Motor Barrel Mount


2018 Manufacturer and Technology of the Year

A panel of four judges, including two media and two NMEA certificated marine electronics technician (CMET), evaluated 16 nominated products this year before awarding Panoptix LiveScope with the exclusive NMEA Technology Award honour. LiveScope, which was also recently named

“Best of Show” at the International Convention of Allied Sportfishing Trades (ICAST), is the first and only live scanning sonar for recreational fishing that gives anglers higher resolution and easierto-

interpret images of structure, bait and fish swimming below and around the boat than ever

before.
