B&G

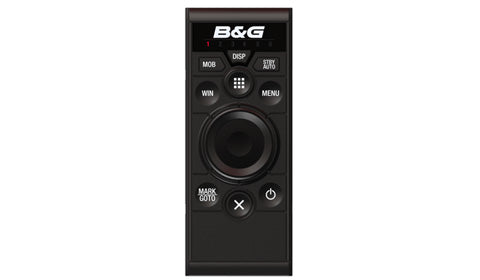

B&G ZC2 Wired Remote Controller Portrait Mount
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The B&G ZC2 controller gives fingertip command of Zeus² and Zeus² Glass Helm multifunction displays from a fixed helm position, delivering simple and precise control even when sea conditions make touchscreen operation difficult. A single ZC2 can be assigned to control up to six compatible MFDs on the network, with a rotary and joystick knob and dedicated MENU, DISP, MARK/GOTO, WIN and power/brightness keys for fast access to key functions. This portrait-mount version is supplied with a moulded 1.8 m (6 ft) Micro-C cable and a Micro-C T-joiner for plug-and-play connection to the boat's NMEA 2000 backbone, and is rated to IPX6 when dash mounted for reliable all-weather operation.
PRODUCT DETAILS
- Wired remote controller for B&G Zeus² and Zeus² Glass Helm MFD systems
- Precise tactile control when touchscreens are hard to use
- Controls up to six compatible MFDs on the network
- Rotary/joystick knob with dedicated menu, mark and display keys
- Supplied with moulded 1.8 m Micro-C cable and Micro-C T-joiner
- IPX6 environmental protection (dash mounted)
- Portrait mounting orientation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
General
| Type | Wired remote controller for Zeus² / Zeus² Glass Helm MFDs |
| Mounting | Portrait |
| MFDs Controlled | Up to 6 compatible MFDs |
| Environmental Protection | IPX6 (dash mounted only) |
Dimensions
| Dimensions (H x W) | 150 mm x 60 mm (5.9 in x 2.3 in) |
| Weight | 0.36 kg (0.8 lbs) with cable |
Electrical
| Power Supply | 12V DC (Micro-C) |
| Current Consumption | < 90 mA (2 LEN) |
Connectivity
| Network | NMEA 2000 |
| Data Connection | Integrated 1.8 m (6 ft) male Micro-C cable |
Features
| Backlight | White |
| Keypad Beeper | < 80 dBA @ 0.5 m |
In the Box
| Supplied With | Moulded 1.8 m (6 ft) Micro-C cable and Micro-C T-joiner |
