Discontinued
This product has been discontinued by Lowrance and is no longer available to buy.
Lowrance

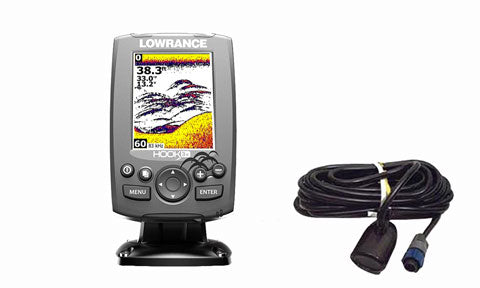

Lowrance Hook-3x - with 83 200kHz Broadband Skimmer Transducer
000-12635-001
The Lowrance Hook-3x was a compact 3.5-inch dedicated fishfinder bundled with an 83/200 kHz broadband Skimmer transom-mount transducer. It delivered Lowrance Broadband Sounder imaging with simple keypad control, ideal for small boats and as a basic depth and fish-finding aid. This model has been discontinued.
Description
The Lowrance Hook-3x was an entry-level, fishfinder-only unit built around a 3.5-inch colour display and intuitive keypad operation. Supplied here with the 83/200 kHz broadband Skimmer transom-mount transducer, it offered dual-frequency Broadband Sounder performance, adjustable sensitivity, fish ID and depth alarms in a rugged, waterproof case suited to small craft.
As a non-GPS fishfinder it concentrated on clear sonar returns and ease of use rather than charting. The Hook-3x has since been discontinued and succeeded within the current Lowrance range by the Hook Reveal series, which adds GPS plotting, Autotuning sonar and DownScan imaging.
PRODUCT DETAILS
- 3.5-inch 256-colour TFT display
- Broadband Sounder 83/200 kHz dual frequency
- Supplied with 83/200 kHz transom-mount Skimmer transducer
- Fish ID, ColorLine and depth/voltage alarms
- Simple keypad operation, IPX7 waterproof case
No exploded diagram available for this product.
No compatible transducers listed for this product.
Display
| Screen size | 3.5 in diagonal |
| Display type | 256-colour TFT LCD |
| Waterproof rating | IPX7 |
Sonar
| Frequencies | 83 / 200 kHz |
| Transmit power | 100 W RMS |
| Max depth | 800 ft (244 m) |
Power
| Supply voltage | 12 V DC (10-17 V) |
Physical
| Case size | 134 mm H x 174 mm W |
