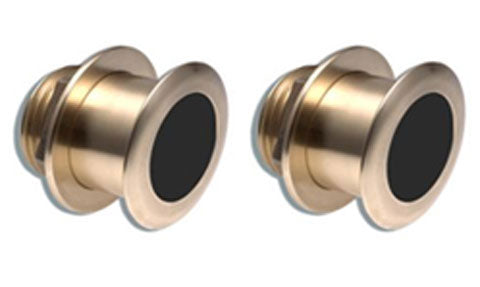

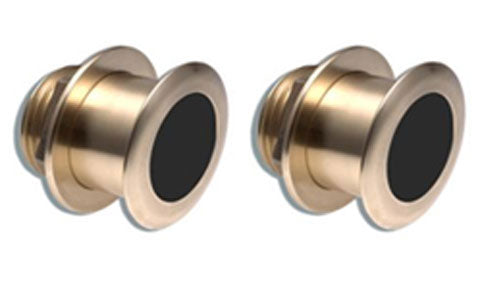

Raymarine B75M and B75H Through Hull CHIRP 20 Degree Tilt Transducers with Y cable

Raymarine B75M and B75H Through Hull CHIRP 20 Degree Tilt Transducers with Y cable

Manufacturer Part No: T70068 | £1,108.33 ex-VAT

Pack made up of 1 x B75M low profile Bronze through hull single element CHIRP transducer with 20 degree tilted element suitable for hulls with 16-24 degree deadrise. Compatible hull material: fiberglass and wood. Max Power: 600 watts. Frequency: 95-155 kHz. Beamwidth: 17-26 degrees. Cable: 30ft (9.1m), 1 x B75H low profile Bronze through hull single element CHIRP transducer with 20 degree tilted element suitable for hulls with 16-24 degree deadrise. Compatible hull material: fiberglass and wood. Max Power: 600 watts. Frequency: 130-210 kHz. Beamwidth: 9-15 degrees. Cable: 30ft (9.1m). 1 x Y Cable used to connect the two transducers to CP450C, CP470 or CP570




Paste Title

  • Depth & fast-response water-temperature sensor
  • Medium—CHIRPS from 80 kHz to 130 kHz, 24° to 16° beamwidth
  • Available in 0°, 12°, or 20° tilted versions
  • 50 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
  • Bronze transducer housing
  • Boat Size: Up to 8 m (25’)
  • Hull Type: Fiberglass or wood



Paste Title

  • Hull Deadrise: Up to 24°
  • Acoustic Window: Urethane
  • Weight: 1.4 kg (3 lb)



Features

  • Depth & fast-response water-temperature sensor
  • High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth
  • Available in 0°, 12°, or 20° tilted versions
  • 80 kHz of total bandwidth from one transducer
  • Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
  • Bronze transducer housing
  • Boat Size: Up to 8 m (25’)
  • Hull Type: Fiberglass or wood



Specifications

  • Hull Deadrise: Up to 24°
  • Acoustic Window: Urethane
  • Weight: 1.4 kg (3 lb)

Raymarine CP570 Clear Pulse CHIRP Network Fishfinder Sonar Module

CP570 Clear Pulse CHIRP Network Fishfinder Sonar Module is engineered for serious anglers, the CP570 sonar module bring best-in-class target separation and high resolution CHIRP sonar imagery to Raymarine multifunction displays. Using a wide spectrum of frequencies and greater sensitivity the CP570&...

£1,418.79 ex-VAT

Raymarine CP470 Clear Pulse CHIRP Network Fishfinder Sonar Module

CP470 Clear Pulse CHIRP Network Fishfinder Sonar Module

£968.79 ex-VAT
