Scanstrut DS16-S Mini Cable Seal - Stainless Steel
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

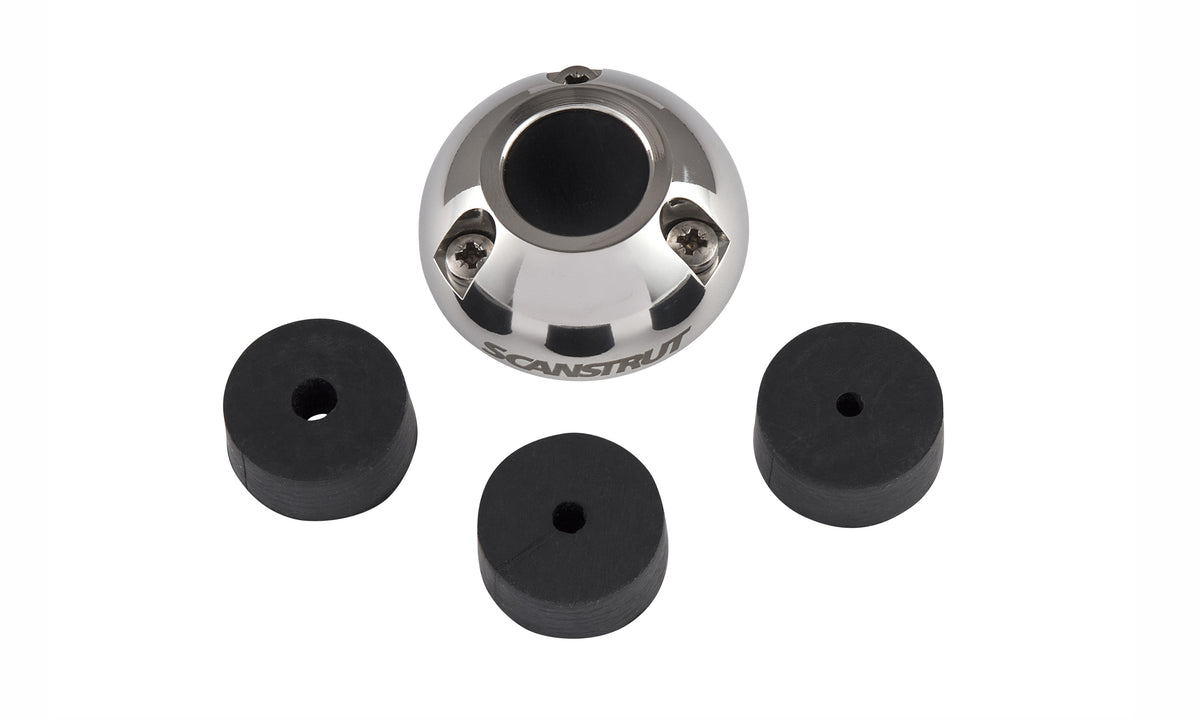

The Scanstrut DS16 Mini in 316 stainless steel brings the world's number one vertical cable seal to installations where appearance and durability are paramount. It seals a single cable of 2-8mm, and its 16mm opening lets connectors of up to 16mm pass through, ideal for instrument, network and display runs on flybridges, radar arches and exposed helm stations.
The polished 316 stainless dome resists salt-water corrosion and adds a high-end look that suits premium hardware, while the pre-drilled, blank and split bungs included let one seal adapt to cable diameters across its 2-8mm range. Captive nuts deliver fast, repeatable assembly.
As with the whole range you install it without removing the connector and without sealant, achieving a clean IP68 waterproof entry in minutes.
PRODUCT DETAILS
- Watertight cable seal for routing a single cable through a deck or panel
- 316 stainless steel trim for a premium, corrosion-resistant finish
- Suits cable diameters from 2 to 8 mm (0.08-0.31 in)
- 39 mm flange with a 36.5 mm cut-out
- Graduated bungs to match the exact cable size
- No messy sealant needed on the bungs
- Cable seal shell x1 (316 stainless steel)
- Base x1
- Gasket x1
- Sealing bungs x4
- No. 4 x 16 self-tapping screws x3
- M3 x 10 bolts x3
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Cable type | Single cable |
| Cable diameter range | 2-8 mm (0.08-0.31 in) |
| Orientation | Vertical (deck / top entry) |
| Waterproof rating | Watertight seal |
Dimensions
| Outer flange diameter | 39 mm (1.53 in) |
| Bore / cable opening diameter | 16 mm (0.63 in) |
| Height | 19 mm (0.75 in) |
Fixing
| Cut-out diameter | 36.5 mm (1.44 in) |
| Fixings | 3 x No. 4 x 16 self-tapping screws and 3 x M3 x 10 bolts (supplied) |
| Pilot hole | 2 mm (5/64 in) soft material, 2.5 mm (3/32 in) hard material |
Materials
| Trim material | 316 stainless steel |
| Sealing bungs | 4 x graduated bungs |
