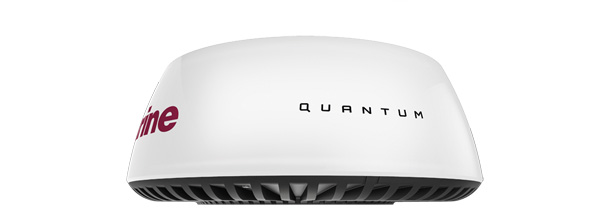

Wireless CHIRP Radar

Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology. Setting a new standard for compact solid state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplifies installation plus Quantums energy efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption

Raymarine Quantum™

Wireless CHIRP Radar

Raymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology.

Quantum Radar is the world’s  rst compact marine radar to use CHIRP pulse compression technology. Setting a new standard for solid state marine radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi makes installation easy and Quantum’s energy ef cient and lightweight design provides safe radiated emissions and reduced power consumption.




Superior Performance

• Quantum’s CHIRP Pulse Compression technology uses multiple compressed radar pulses with FLIR’s exclusive ATX™ advanced target separation technology

• Quantum with ATX™ displays targets like boats, landmarks, buoys, and weather cells with unsurpassed resolution and separation quality versus traditional magnetron radars.

• Excellent short-range detection and enhanced target detail with 18’ (6m) minimum range • Immediate awareness – Quantum starts up and is ready to go in seconds

• Superior interference rejection eliminates noise from other radars


Exceptional Detail And Clarity

Sharp, crisp targets and automatic sea clutter rejection produce radar images with stunning clarity.


Short Range Performance

Quantum’s CHIRP Pulse Compression technology is substantially better at identifying targets at close range when compared to a traditional magnetron radar.


Flir Atxtm Advanced Target Separation Technology

Quantum identi es small, weak targets, even when positioned close to strong returns like this kayaker close to the seawall.


Better Range Resolution

Range resolution is a radar’s ability to separate targets within individual spokes of the radar pulse. Quantum uses compressed high intensity pulses (CHIRP) to deliver much greater range resolution than traditional magnetron radars


Simplified Installation

  • Simple Wi-Fi connection between Quantum and any Raymarine LightHouse II powered MFD
  • Quantum’s small diameter power cable is easy to route through tight spaces
  • Easy to upgrade – Quantum uses the same bolt pattern as previous generation radars. Optional Quantum adapter cable eliminate the need to run new radar cables

Energy Efficient and Lightweight Design

  • Weighs 50% less than traditional magnetron radars
  • Safe Emissions thanks to Quantum’s low power solid state radar transmitter
  • Very low power consumption (17 Watts transmit and 7 watts standby)
  • Extended vessel battery life when under sail

Raymarine Quantum™ 2

CHIRP Radar with Doppler Technology

Introducing Raymarine Quantum 2 Radar with Doppler collision avoidance technology. The Quantum 2 next generation CHIRP pulse compression radar by Raymarine provides superior target awareness at both long and extremely short ranges.

Using advanced Doppler processing, the system instantly highlights moving radar contacts and color codes them to indicate whether they are inbound or outbound. Quantum with Doppler makes it easy to discern potentially dangerous targets when navigating in high-traffic areas.


Features

Easily Identify Dangerous Targets -  Raymarine Quantum 2 Doppler target processing readily identifies and color codes moving radar contacts for instant recognition and reduced risk of collision.

Safer Navigation - Quantum 2’s exclusive Safety Sector feature provides the maximum level of visibility to dangerous targets in the path of your vessel (both mobile and stationary).

Superior Collision Avoidance - Doppler-enabled MARPA provides an effortless means of dangerous target tracking by eliminating the need to setup guard zones. Raymarine MARPA target tracking is the same technology trusted by the United States Coast Guard.


Key Features

  • Doppler moving target display allows for superior situational awareness at-a-glance
  • Fully automatic ARPA target tracking, along with manual MARPA mode
  • Adjustable TrueTrails target history shows the motion history of moving contacts
  • CHIRP Pulse Compression detects contacts as close as 18-feet for zero-visibility navigation
  • 24-mile range for early detection of traffic, navigation aids, landfall and weather
  • Immediate awareness – Quantum starts up and is ready to go in seconds
  • Superior interference rejection eliminates noise from other radars
  • Simplified installation with Wi-Fi or thin wire network connectivity
  • Easy upgrade – Quantum 2 fits the same bolt pattern as other Raymarine scanners
  • Lightweight and easy to install – Quantum weighs up to 50% less than comparable magnetron radars
  • Safe emissions – mount Quantum anywhere onboard
  • Low power consumption for extended battery life under sail

How Doppler Radar Works

Microwave energy waves are bounced off of a distant target, just like conventional radar.

Moving targets send back echoes whose frequencies shift upward or downward from what was originally transmitted.

For inbound targets, the frequency increases as the leading edge of the returning echoes are received more frequently as the target’s range decreases.

For outbound targets, the frequency drops as the returning echoes spread out as its range increases.

Doppler radars are engineered to detect these small shifts in wave frequency, and use them to classify moving radar targets.


Doppler Target Processing

Doppler radar is tuned specifically to detect the radar echo frequency shift returned by moving vs. stationary targets.

Quantum 2 then uniquely color codes moving targets to indicate whether they are getting closer, or moving away.

Inbound targets are colored red.
Outbound targets are colored green.
Color coded targets make it simple to pick out moving traffic from other stationary targets like land, navigation aids or stopped/anchored vessels.


Quantum 2 Saftey Sector

Doppler does an excellent job of bringing attention to moving targets, but it does downplay stationary targets, that can be equally as dangerous.

Safety Sector provides equal attention to these imminent threats by coloring them as inbound targets. Potential targets include:

Buoys.
Exposed Hazard (rocks, pilings, etc).
Slow moving, low visibility vessels.
Quantum 2's Safety Sector spreads 15° from the bow to a distance of approximately 200m.

NOTE: The safety sector is not visible on the display. Quantum 2 automatically processes and highlights targets within this region in red.


Automatic Target Acquisition

The Quantum 2 also features fully automatic target acquisition and tracking. Configure custom safety or alarm zones and be alerted to new radar contacts entering the zone. Quantum 2 can begin tracking those contacts automatically, calculating their course, speed, closest point of approach and more. You’ll be alerted to dangerous contacts with audible alerts and easy to understand on-screen graphics.


True Trails Target History

Quantum 2 also features Raymarine’s new True Trails target history display. The True Trails features enables you to see a historical “wake” behind every moving contact. This additional information makes it even easier to interpret the motion of other vessels, and make smart maneuvering decisions to pass safely.


Rugged And Lightweight

Like every Raymarine Quantum system, you’ll also benefit from a rugged and lightweight design that is super-easy to install. Quantum 2 has very low power consumption making it especially friendly to vessels running exclusively on battery power. Quantum 2 with Doppler can be installed in a traditional wired configuration, or use its built-in Wi-Fi technology to connect it to your Raymarine MFD.

The Quantum 2 with Doppler truly sets the standard for on the water safety and collision avoidance.




Quantum Radar Launch

Raymarine Quantum Q24C Wireless CHIRP Radar with 10m Power Cable

Price Checked √ - Free UK Delivery √ On Offer
Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology. Setting a new standard for compact solid state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplifies installatio...

£1,383.79 ex-VAT

Raymarine Quantum Q24C Wireless CHIRP Radar with 10m Power and Data Cable

Price Checked √ - Free UK Delivery √
Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology. Setting a new standard for compact solid state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplifies installatio...

£1,490.83 ex-VAT

Raymarine Quantum Q24C Wireless CHIRP Radar with 15m Power and Data Cable

Price Checked √ - Free UK Delivery √ On Offer
Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology. Setting a new standard for compact solid state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplifies installatio...

£1,564.63 ex-VAT

Raymarine Quantum 2 Q24D Wireless CHIRP Radar no Cables

Price Checked √ - Free UK Delivery √ On Offer
Raymarine Quantum 2 Radar with Doppler collision avoidance technology. The Quantum 2 next generation CHIRP pulse compression radar by Raymarine provides superior target awareness at both long and extremely short ranges. Using advanced Doppler processing, the system instantly highlights moving radar...

£1,795.46 ex-VAT

Raymarine Quantum 2 Q24D Wireless CHIRP Radar with 10m Power and Data Cables

Price Checked √ - Free UK Delivery √ On Offer
Raymarine Quantum 2 Radar with Doppler collision avoidance technology. The Quantum 2 next generation CHIRP pulse compression radar by Raymarine provides superior target awareness at both long and extremely short ranges. Using advanced Doppler processing, the system instantly highlights moving radar...

£1,747.96 ex-VAT

Raymarine Quantum 2 Q24D Wireless CHIRP Radar with 15m Power and Data Cables

Price Checked √ - Free UK Delivery √ On Offer
Raymarine Quantum 2 Radar with Doppler collision avoidance technology. The Quantum 2 next generation CHIRP pulse compression radar by Raymarine provides superior target awareness at both long and extremely short ranges. Using advanced Doppler processing, the system instantly highlights moving radar...

£1,814.63 ex-VAT

Raymarine Quantum 2 Q24D Wireless CHIRP Radar with 10m Power Cable

Price Checked √ - Free UK Delivery √ On Offer
Raymarine Quantum 2 Radar with Doppler collision avoidance technology. The Quantum 2 next generation CHIRP pulse compression radar by Raymarine provides superior target awareness at both long and extremely short ranges. Using advanced Doppler processing, the system instantly highlights moving radar...

£1,721.25 ex-VAT
GENERAL SPECIFICATIONS
Input Voltage 12 or 24 Vdc (Min: 10.8V, Max: 31.2 V)
Networking Wi-Fi or wired Ethernet (RayNet) Q24W Wi-Fi Only
Antenna Type Patch Array
Power Consumption Transmit mode 17W; standby mode 7W; sleep mode 2W
Range Scales From 1/16 to 24 nautical miles
Transmit Frequency 9354 to 9446 MHz
Peak Power Output 20W
Duplexer Circulator
Pulse Widths (3 dB) 40 ns to 14.7 μs
CHIRP Lengths 400 ns to 20 μs
CHIRP Bandwidth Up to 32 MHz
IF Bandwidth 26 MHz
Noise Less than 4 dB
Max. Range Scale from 1/16 to 24 nautical miles
Beamwidth (nominal) 4.9º horizontal and 20º vertical
Polarisation Horizontal
Waterproofing IPX6
Weight 5.6 kg (12.3 lb)
