Garmin GPSMAP 8622

Name: Garmin GPSMAP 8622
Brand: Garmin
SKU: 010-01511-01
Price: 12249.588 GBP
Availability: InStock

Manufacturer Part No: 010-01511-01 | £10,207.99 ex-VAT

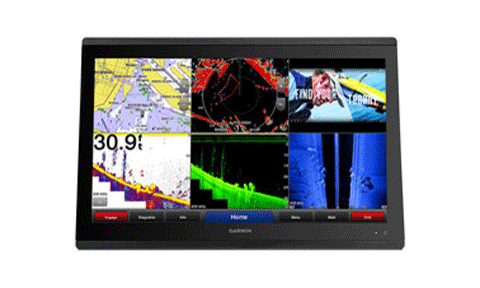

GPSMAP 8622 large-format multifunction display features a 22-inch full HD screen with touch control. Sunlight-readable, anti-glare display is exceptionally easy to view and also includes auto-dimming feature for use in low light or at night. New maximum glass design enables you to experience a beautifully powerful, completely networked helm at your fingertips. In-plane switching (IPS) LCD display — an industry first for this class — provides consistent, accurate colors from all viewing angles. It also provides standard USB touch output for use as a touchscreen monitor for Windows® and Mac® operating systems. Install multiple displays with the industry’s lowest flush-mount profile or flat mount them edge-to-edge to create a sleek glass helm look. Quick, 1-touch access to the information you need makes boating easier.

IN THE BOX

GPSMAP 8622
Trim piece snap covers
GPS 24xd NMEA 2000 (with pole mount, flush mount and under deck mount adapters)
Protective cover
Flush mount hardware
Power cable
NMEA 2000 2 m backbone/drop cable
NMEA 2000 6 m backbone cable
NMEA 2000 power cable
NMEA 2000 T-connector & terminator kit
Documentation

SPECS

General
DIMENSION	20.8" x 13.8" x 2.8" (52.8 cm x 35.1 cm x 7.1 cm)
WEIGHT	15.63 lbs (7.09 kg)
WATER RATING	IPX7
TOUCHSCREEN	Yes
DISPLAY TYPE	FHD, IPS
DISPLAY SIZE	18.8" x 10.6"; 21.5" diagonal, 47.8 cm x 27.0 cm; 54.6 cm diagonal
DISPLAY RESOLUTION	1920 x 1080 pixels
MOUNTING OPTIONS	Flush or flat

Maps & Memory
ACCEPTS DATA CARDS	2 SD Cards (with Garmin SD card reader accesory)
WAYPOINTS	5000
TRACK POINTS	50,000
TRACKS	50 saved tracks
NAVIGATION ROUTES	100

Sensors
NMEA 2000® COMPATIBLE	Yes
NMEA 0183 COMPATIBLE	Yes

Built-In Maps
BUILT-IN AUTO GUIDANCE	Yes
BLUECHART (COASTAL)	Yes
LAKEVU (INLAND)	Yes
TIDE TABLES	Yes

Built-In Maps
BUILT-IN AUTO GUIDANCE	Yes
BLUECHART (COASTAL)	Yes
LAKEVU (INLAND)	Yes
TIDE TABLES	Yes

Optional Map Support
BLUECHART G3	Yes
BLUECHART G3 VISION	Yes
LAKEVÜ G3	Yes
LAKEVÜ G3 ULTRA	Yes
GARMIN NAVIONICS+™	Yes
GARMIN NAVIONICS VISION+™	Yes
TOPO 100K	Yes
STANDARD MAPPING	Yes
GARMIN QUICKDRAW CONTOURS	Yes
RASTER CHART SUPPORT	Yes

Chartplotter Features
GARMIN SMARTMODE COMPATIBLE (CUSTOMISABLE MONITOR PRESETS)	Yes
AIS	Yes
DSC	Yes
SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS	Yes
GSD BLACK BOX SONAR SUPPORT	Yes
GCV BLACK BOX SONAR SUPPORT	Yes
ACTIVECAPTAIN MOBILE PLANNING COMPATIBLE	yes
GRID (GARMIN REMOTE INPUT DEVICE) COMPATIBLE	Yes
WIRELESS REMOTE COMPATIBLE	Yes
SAILING FEATURES	Yes
SPOKEN AUDIO ALERTS	Yes
ONEHELM SUPPORT	Yes

Chartplotter Features
GARMIN SMARTMODE COMPATIBLE (CUSTOMISABLE MONITOR PRESETS)	Yes
AIS	Yes
DSC	Yes
SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS	Yes
GSD BLACK BOX SONAR SUPPORT	Yes
GCV BLACK BOX SONAR SUPPORT	Yes
ACTIVECAPTAIN MOBILE PLANNING COMPATIBLE	yes
GRID (GARMIN REMOTE INPUT DEVICE) COMPATIBLE	Yes
WIRELESS REMOTE COMPATIBLE	Yes
SAILING FEATURES	Yes
SPOKEN AUDIO ALERTS	Yes
ONEHELM SUPPORT	Yes

Electrical Features
POWER INPUT	10 to 35 Vdc
TYPICAL CURRENT DRAW AT 12 VDC	3.9 A
MAXIMUM CURRENT DRAW AT 12 VDC	4.9 A
MAXIMUM POWER USAGE AT 10 VDC	59W

Sonar Features & Specifications
DISPLAYS SONAR	Yes
TRADITIONAL SONAR (DUAL FREQUENCY/BEAM)	Yes (with external black box, sold separately)
CLEARVÜ	Yes (with GCV™ black box, sold separately)
SIDEVÜ	Yes (with GCV™ black box, sold separately)
PANOPTIX™ SONAR	Yes
LIVESCOPE	Yes

Connections
NMEA 2000® PORTS	1
NMEA 0183 INPUT (RX) PORTS	4
NMEA 0183 OUTPUT (TX) PORTS	2
VIDEO INPUT PORTS	1 (BNC composite); 1 HDMI (HDCP compliant)
VIDEO OUTPUT PORTS	1 HDMI
J1939 PORTS	1
GARMIN MARINE NETWORK PORTS	4
USB PORTS	Yes
BLUETOOTH® CALLING	Yes
ANT+ (CONNECTIVITY)	Yes
GARMIN WI-FI NETWORK (LOCAL CONNECTION)	Yes

OVERVIEW

TAKE CONTROL OF A BEAUTIFUL HELM

The large-format MFD lets you experience a beautifully powerful, completely networked helm at your fingertips.

Premium full HD touchscreen features Garmin’s highest resolution display.

It’s compatible with premium maps and charts for the best in Garmin navigation.

Easily build your marine system using the best of network connectivity.

From ANT® technology to Wi-Fi® networking, there are countless ways to connect to your system.

Take the guesswork out of sailing with clear laylines and more — right on the screen.

With SmartMode™ station controls, everything is designed to give you quick, one-touch access to the information you need.

Made for your helm.

FULL HD TOUCHSCREEN

The sunlight-readable, anti-glare display includes an auto-dimming feature for low light or nighttime use. An in-plane switching LCD display provides consistent, accurate colors from all angles.

SIMPLE, ATTRACTIVE MOUNTING OPTIONS

Install multiple displays with the low flush-mount profile, or flat mount them edge-to-edge for a sleek glass helm look. The maximum glass design puts a powerful, networked helm at your fingertips.

Connect to everything on your boat.

GARMIN MARINE NETWORK

If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP cameras — among them.

NMEA 2000® AND NMEA 0183 NETWORKS

Connect to autopilots, digital switching, weather, your FUSION-Link™ audio system, media, VHF, AIS and more from one screen.

ACTIVECAPTAIN® APP

Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications1 , software updates, Garmin Quickdraw™ Community data and more.

BUILT-IN CONNECTIVITY

It’s easy to connect to peripheral devices with built-in Wi-Fi connectivity, ANT technology, four wired Ethernet ports, NMEA 2000, HDMI and USB ports with complete network compatibility.

ONEHELM™ FEATURE

This feature brings together all the operations and capabilities of third-party devices, such as EmpirBus™ digital switching, on one screen.

SMARTMODE STATION CONTROLS

Get quick, one-touch access to the information you need to ease high-stress situations such as docking. You can incorporate networked sonar, radar, cameras, media and more.

CONNECT WITH RADAR

You can add your choice of compatible Garmin marine radar, including our powerful xHD2 open-array radars, GMR Fantom™ open-array radars with MotionScope™ technology or xHD dome radars.

CAMERA SUPPORT

Garmin supports select FLIR cameras for surveillance and situational awareness on your vessel. And with our Surround View Camera System, get live bird’s-eye view video plus 360-degree helm visibility.
