This product has been discontinued by Simrad and is no longer available to buy.
Simrad
Lowrance, Simrad DrivePilot Autopilot Hydraulic Pack
Description

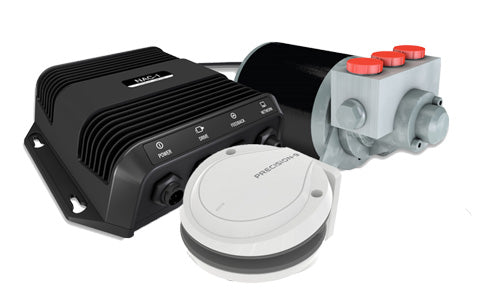

The DrivePilot Hydraulic Pack contains everything needed to add an autopilot to a hydraulic-steered boat controlled from a Simrad multifunction display. It brings together the Precision-9 heading sensor, the NAC-1 autopilot computer and the PUMP-1 0.8-litre reversible hydraulic pump, along with a dash-mount Standby/Auto button and the Micro-C network components needed to wire the system.
The NAC-1 computer is designed for boats up to 9 metres (30 ft) and uses Simrad Virtual Rudder Feedback, eliminating the need for a separate rudder feedback unit on many installations. With everything supplied as a matched kit, the pack offers a straightforward route to hands-free steering, automatic heading hold and route following from a compatible Simrad display over NMEA 2000.
PRODUCT DETAILS
- Complete hydraulic DrivePilot autopilot pack for hydraulic-steered boats
- Includes Precision-9 compass, NAC-1 computer and PUMP-1 (0.8 L) hydraulic pump
- Dash-mount Standby/Auto button for one-touch engagement
- Virtual Rudder Feedback simplifies installation
- Controlled from a compatible Simrad multifunction display
- NMEA 2000 (Micro-C) network components included
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
General
| Pack contents | Precision-9 heading sensor, NAC-1 autopilot computer, PUMP-1 (0.8 L) reversible hydraulic pump, Standby/Auto button, Micro-C network components |
| Recommended boat length | Up to 9 m (30 ft) |
| Rudder feedback | Virtual Rudder Feedback (VRF) |
| Warranty | 2 years |
Mechanical
| Pump | PUMP-1, 0.8 L reversible hydraulic pump |
Electrical
| Computer supply voltage | 9 - 16 V DC (NAC-1) |
| Computer drive output | 12 V DC reversible motor, 8 A continuous / 16 A peak (NAC-1) |
Connectivity
| Network | NMEA 2000 (Micro-C) |
No downloads available for this product.
