Lowrance, Simrad Outboard Autopilot Hydraulic Pack Lowrance, Simrad Outboard Autopilot Hydraulic Pack
Lowrance, Simrad Outboard Autopilot Hydraulic Pack
Discontinued

This product has been discontinued by Simrad and is no longer available to buy.

Not sure what replaces it? Talk to us.

Contact HME

or call us on +442380455129

Simrad

Lowrance, Simrad Outboard Autopilot Hydraulic Pack

000-11748-001

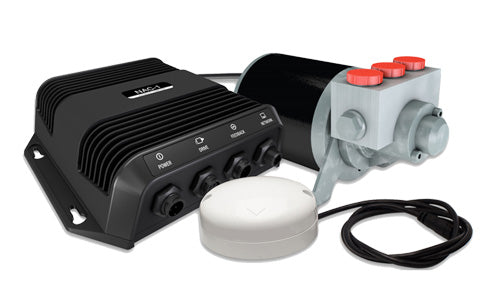

An MFD-controlled Outboard Pilot pack for boats up to 30 ft with a single hydraulic-steered outboard. It includes a Point-1 AP heading and GPS sensor, NAC-1 autopilot computer, PUMP-1 (0.8 L) reversible hydraulic pump, hydraulic fitting kit, Standby/Auto button and Micro-C network components, with Virtual Rudder Feedback for easy installation.

Description

The Outboard Pilot Hydraulic Pack is an MFD autopilot add-on designed for boats up to 30 ft with a single hydraulic-steered outboard motor. It contains everything needed to fit an autopilot in one kit: a Point-1 AP heading and GPS sensor, the NAC-1 autopilot computer, the PUMP-1 0.8-litre reversible hydraulic pump, a hydraulic fitting kit, a dash-mount Standby/Auto button and the Micro-C network components.

The NAC-1 computer uses Simrad Virtual Rudder Feedback, removing the need for a separate rudder feedback unit on planing outboard boats and keeping installation simple. Once fitted, the system delivers hands-free heading hold, automatic turn patterns and route following, all controlled from a compatible Simrad multifunction display over NMEA 2000.

PRODUCT DETAILS

  • Complete Outboard Pilot pack for boats up to 30 ft with a single hydraulic outboard
  • Includes Point-1 AP GPS/heading sensor, NAC-1 computer and PUMP-1 (0.8 L) pump
  • Hydraulic fitting kit and dash-mount Standby/Auto button supplied
  • Virtual Rudder Feedback for simple installation, no feedback unit required
  • Controlled from a compatible Simrad multifunction display
  • NMEA 2000 (Micro-C) network components included

No exploded diagram available for this product.

No compatible transducers listed for this product.

Image coming soon

Lowrance, Simrad Auto-Standby Button Metal

No compatible products found.

General

Pack contentsPoint-1 AP heading and GPS sensor, NAC-1 autopilot computer, PUMP-1 (0.8 L) reversible hydraulic pump, hydraulic fitting kit, Standby/Auto button, Micro-C network components
Vessel typeBoats up to 30 ft with a single hydraulic-steered outboard
Rudder feedbackVirtual Rudder Feedback (VRF)
Warranty2 years

Mechanical

PumpPUMP-1, 0.8 L reversible hydraulic pump

Electrical

Computer supply voltage9 - 16 V DC (NAC-1)
Computer drive output12 V DC reversible motor, 8 A continuous / 16 A peak (NAC-1)

Connectivity

NetworkNMEA 2000 (Micro-C)

No downloads available for this product.

What is in the Outboard Hydraulic Pack?
It contains a Point-1 AP heading and GPS sensor, a NAC-1 autopilot computer, a PUMP-1 (0.8 L) reversible hydraulic pump, a hydraulic fitting kit, a Standby/Auto button and Micro-C network components.
What type of boat is this pack designed for?
It is an MFD autopilot add-on for boats up to 30 ft with a single hydraulic-steered outboard motor.
Does this pack require a rudder feedback unit?
No. The NAC-1 uses Simrad Virtual Rudder Feedback, which removes the need for a separate feedback unit on planing outboard boats.
How is the Outboard Pilot controlled?
It is controlled from a compatible Simrad multifunction display, with a dash-mount Standby/Auto button for one-touch engagement.
