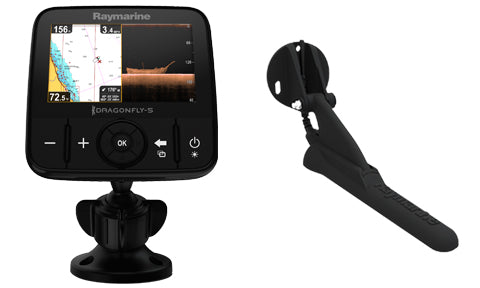

Raymarine Dragonfly-5 Pro GPS fishfinder with CHIRP Down vision and Sonar

Raymarine Dragonfly-5 Pro GPS fishfinder with CHIRP Down vision and Sonar

Manufacturer Part No: E70293 |

The Dragonfly 5 PRO Combo - no charts - offers dual CHIRP sonar channels (traditional sonar and Downvision) and a chartplotter. Unlike conventional fishfinders that transmit at a single frequency with each pulse, Dragonflys dual channel sonar uses CHIRP technology to transmit across a wide spectrum of sonar frequencies simultaneously – the result is much higher-resolution, life-like sonar images. Dragonfly PRO models feature built in Wi-Fi. Anglers can stream Dragonfly sonar data right to their smartphone or tablet with the Raymarine Wi-Fish mobile app. The Wi-Fish mobile app puts Dragonfly sonar vision right in the palm of your hand, plus you can rewind and capture sonar images to share online with friends. An all weather optically bonded display delivers brighter colours, sharper contrast, and will never fog up

Raymarine Dragonfly-5 Pro GPS fishfinder with CHIRP Down vision and Sonar

The Dragonfly 5 PRO Combo - no charts - offers dual CHIRP sonar channels (traditional sonar and Downvision) and a chartplotter. Unlike conventional fishfinders that transmit at a single frequency with each pulse, Dragonflys dual channel sonar uses CHIRP technology to transmit across a wide spectrum...

Raymarine Dragonfly-5 Pro GPS fishfinder with Navionics EU Silver Chart

Price Checked √ - Free UK Delivery √
The Dragonfly 5 PRO Combo - Navionics Silver chart for the whole of Europe including the Mediterranean - offers dual CHIRP sonar channels (traditional sonar and Downvision) and a chartplotter. Unlike conventional fishfinders that transmit at a single frequency with each pulse, Dragonflys dual channe...

Raymarine Dragonfly Mounting Bracket 4-5-7 Pro and Wi-Fish

Free UK Delivery √
Dragonfly Mounting Bracket for Dragonfly 4, 5, 7 Pro and Wi-Fish

£41.29 ex-VAT

Raymarine Dragonfly CPT-DV - CPT-DVS Trolling Motor Mount

Free UK Delivery √
Dragonfly Trolling Motor Bracket specifically designed for the Dragonfly CPT-DV and CPT-DVS transom mount transducers.

£33.79 ex-VAT

Raymarine Dragonfly CPT-DV - CPT-DVS Transom Mount Bracket

Free UK Delivery √
Dragonfly CPT-DV / CPT-DVS Transom Mount Bracket Electronics Accessories Raymarine Cpt Dragonfly DV & DVS. Color: Black, Product Type: Supports, Subcategories: Devices, Engineered for serious anglers, the CP470 sonar module bring best-in-class target separation and high resolution CHIRP son...

£28.33 ex-VAT

Raymarine Dragonfly CPT-DV - CPT-DVS Extension Cable 4m

Free UK Delivery √
Dragonfly CPT-DV / CPT-DVS 4m Extension Cable for units with 3-keyway connectors 4dvs, 4 Pro, 5dvs, 5 Pro and 7 Pro 4m Extension Cable f/CPT-DV & DVS Transducer & Dragonfly 4 - 5 & Wi-FishUse Raymarines 4m cable to extend the length of the standard cable provided wit

£33.79 ex-VAT

Raymarine CPT-70 Dragonfly Through Hull Plastic CHIRP Transducer

Price Checked √ - Free UK Delivery √
Dragonfly CPT-70 Urethane through hull transducer with fairing block with 10m cable, can be used with all Dragonfly units but requires adaptor cable A80278 when connecting to older units with red looking collars.

£255.46 ex-VAT

Raymarine CPT-80 Dragonfly Through Hull Bronze CHIRP Transducer

Price Checked √ - Free UK Delivery √
Dragonfly CPT-80 Bronze through hull transducer with fairing block with 10m cable, can be used with all Dragonfly units but requires adaptor cable A80278 when connecting to older units with red looking collars.

£305.46 ex-VAT

Raymarine CPT-80 and CPT-120 High Speed Fairing

Free UK Delivery √
High speed fairing block for CPT-80 and CPT-120 transducers

£80.00 ex-VAT

Raymarine Dragonfly CPT-DVS Spare Transducer

Price Checked √ - Free UK Delivery √
Dragonfly CPT-DVS Transom Mount transducer can be used with the Dragonfly 4 and 5 (all variants except 5M) and the new 7PRO model 6m cable. If using with an original Dragonfly 5.7" or 7" model, use the A80331 Adapter Cable. Cable Length (Ft/M) 13ft / 4m

£88.29 ex-VAT

Raymarine Dragonfly 4 and 5 Flush Mount Kit

Free UK Delivery √
Dragonfly 4 and 5 Flush Mounting Kit for the Raymarine Dragonfly 4dv, 4dvs, 4 Pro, 5dvs, 5 Pro and 5m.

£37.13 ex-VAT

Raymarine Dragonfly 4 and 5 Suncover

Price Checked √ - Free UK Delivery √
Dragonfly 4 and 5 suncover for the Raymarine Dragonfly 4dv, 4dvs, 4 Pro, 5dvs, 5 Pro and 5m.

£33.79 ex-VAT

Raymarine Dragonfly 4 and 5 Flush Mount Suncover

Dragonfly 4 and 5 flush mounting suncover for the Raymarine Dragonfly 4 and 5 models when using flush mount kit.

£12.13 ex-VAT


Raymarine Dragonfly 4, 5 7 and Wi Fish Sonar Video

Raymarine Downvision Best DownVision Shots

Raymarine Dragonfly in Action Pittwater Wreck Australia

In The Box


1 Display unit

2 Locking collar

3 Pivot ball

4 M6 Hex bolt

5 Display bracket base

6 x3 M5 pozi-drive bolt

7 x3 M5 washer

8 x3 M5 locking nut

9 Ratchet arm

10 Mounting bracket

11 M5 Hex ratchet bolt

12 Ratchet plate

13 Compression washer

14 M5 washer

15 M5 locking nut

16 x3 Self tapping screws

17 Documentation

18 Transducer with combined power cable


1 Display unit

2 Locking collar

3 Pivot ball

4 M6 Hex bolt

5 Display bracket base

6 x3 M5 pozi-drive bolt

7 x3 M5 washer

8 x3 M5 locking nut

9 Documentation

10 1.5m (4.9ft) Power Cable





Dragonfly 4-5 and Wi-fish






Dragonfly 7 Pro



GENERAL SPECIFICATIONS

Nominal Supply Voltage 12 V DC
Operating Voltage Range 10.8 V DC to 15.6 V DC
Power Consumption At Full Brightness 4DV – 3 W RMS | 4DVS – 3.9 W RMS | 4Pro – 4.3 W RMS | 5DVS – 4.7 W RMS | 5M – 2.9 W RMS | 5Pro – 5.3 W RMS | 7Pro - 9 W RMS
Connections Power / Transducer combined input (5M model: Power input only)
Waterproofing Standard IPX6 and IPX7
Display Size Dragonfly 4 (All models): 4.3 in | Dragonfly 5 (All models): 5.0 in | Dragonfly 7: 7.0in
Display Resolution Dragonfly 4 (All models): 480 x 272 WQVGA | Dragonfly 5 (All models): 800 x 480 WVGA | Dragonfly 7: 800 x 480 WVGA
Aspect Ratio Dragonfly 4 (All models): 16:9 | Dragonfly 5 (All models): 15:9 | Dragonfly 7: 15:9



GPS & CARTOGRAPHY (PRO AND M MODELS ONLY)

GPS Channels                                        72 GPS / GLONASS Channels
Chart Compatibility LightHouse vector and raster charts | Navionics Gold, Plus, Hotmaps and SonarChart | C-MAP by Jeppesen
Waypoints 3,000 waypoints (split between up to 100 waypoint groups)
Tracks 15 tracks (each track can contain up to 10,000 points)
Chart Media MicroSD



SONAR (ALL MODELS EXCEPT 5M)

Sonar Type                                 CHIRP Sonar (All models except 5M)
Sonar Channels 2 Channels - Sonar conical beam + DownVision™ wide fan beam (All models except 5M)
Depth Range 183m (600ft) CHIRP DownVision™ and CHIRP Sonar Models 275m (900ft)
Warranty 1 Year Warranty*
