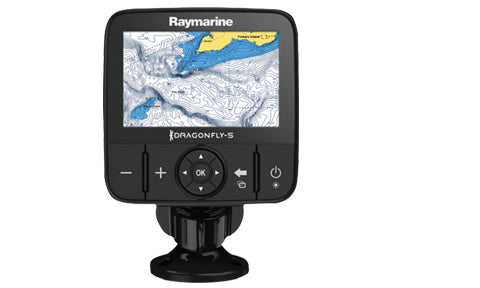

Raymarine Dragonfly-5m GPS Chart Plotter with C-Map Essential EU Chart

Raymarine Dragonfly-5m GPS Chart Plotter with C-Map Essential EU Chart

Manufacturer Part No: E70295-CEUR |
Sorry no longer available

The Dragonfly 5m - C-map essentials Europe chart - is purely a GPS Chartplotter The all-new Dragonfly 4m is engineered with optical bonding LCD display technology. Once only available on high end marine displays, Dragonflys all weather optically bonded displays deliver brighter colours, sharper contrast and are guaranteed to never fog up.

Raymarine Dragonfly-5m GPS Chart Plotter

Sorry no longer available
The Dragonfly 5m - no charts - is purely a GPS Chartplotter The all-new Dragonfly 4m is engineered with optical bonding LCD display technology. Once only available on high end marine displays, Dragonflys all weather optically bonded displays deliver brighter colours, sharper contrast and are guarant...

Raymarine Dragonfly-5m GPS Chart Plotter with Navionics EU Silver Chart

Sorry no longer available
The Dragonfly 5m - Navionics Silver chart for the whole of Europe including the Mediterranean - is purely a GPS Chartplotter The all-new Dragonfly 4m is engineered with optical bonding LCD display technology. Once only available on high end marine displays, Dragonflys all weather optically bonded di...

Raymarine Dragonfly-5m GPS Chart Plotter with C-Map Essential EU Chart

Sorry no longer available
The Dragonfly 5m - C-map essentials Europe chart - is purely a GPS Chartplotter The all-new Dragonfly 4m is engineered with optical bonding LCD display technology. Once only available on high end marine displays, Dragonflys all weather optically bonded displays deliver brighter colours, sharper cont...

Raymarine Dragonfly-5m GPS Chart Plotter with Navionics ROW Silver Chart

Sorry no longer available
The Dragonfly 5m - Navionics Silver chart for rest of world (not US) - is purely a GPS Chartplotter The all-new Dragonfly 4m is engineered with optical bonding LCD display technology. Once only available on high end marine displays, Dragonflys all weather optically bonded displays deliver brighter c...

Raymarine Dragonfly-5m GPS Chart Plotter with C-Map Essential ROW Chart

Sorry no longer available
The Dragonfly 5m - C-map essentials rest of world chart - is purely a GPS Chartplotter The all-new Dragonfly 4m is engineered with optical bonding LCD display technology. Once only available on high end marine displays, Dragonflys all weather optically bonded displays deliver brighter colours, sharp...

Raymarine Dragonfly Mounting Bracket 4-5-7 Pro and Wi-Fish

Free UK Delivery √
Dragonfly Mounting Bracket for Dragonfly 4, 5, 7 Pro and Wi-Fish

£41.29 ex-VAT

Raymarine Dragonfly Power Cable Dragonfly-5m 1.5m

Free UK Delivery √
Dragonfly Power Cable Dragonfly-5m 1.5m

£43.33 ex-VAT

Raymarine Dragonfly 4 and 5 Flush Mount Kit

Free UK Delivery √
Dragonfly 4 and 5 Flush Mounting Kit for the Raymarine Dragonfly 4dv, 4dvs, 4 Pro, 5dvs, 5 Pro and 5m.

£37.13 ex-VAT

Raymarine Dragonfly 4 and 5 Suncover

Price Checked √ - Free UK Delivery √
Dragonfly 4 and 5 suncover for the Raymarine Dragonfly 4dv, 4dvs, 4 Pro, 5dvs, 5 Pro and 5m.

£33.79 ex-VAT

Raymarine Dragonfly 4 and 5 Flush Mount Suncover

Dragonfly 4 and 5 flush mounting suncover for the Raymarine Dragonfly 4 and 5 models when using flush mount kit.

£12.13 ex-VAT


Raymarine Dragonfly 4, 5 7 and Wi Fish Sonar Video

Raymarine Downvision Best DownVision Shots

Raymarine Dragonfly in Action Pittwater Wreck Australia

In The Box


1 Display unit

2 Locking collar

3 Pivot ball

4 M6 Hex bolt

5 Display bracket base

6 x3 M5 pozi-drive bolt

7 x3 M5 washer

8 x3 M5 locking nut

9 Ratchet arm

10 Mounting bracket

11 M5 Hex ratchet bolt

12 Ratchet plate

13 Compression washer

14 M5 washer

15 M5 locking nut

16 x3 Self tapping screws

17 Documentation

18 Transducer with combined power cable


1 Display unit

2 Locking collar

3 Pivot ball

4 M6 Hex bolt

5 Display bracket base

6 x3 M5 pozi-drive bolt

7 x3 M5 washer

8 x3 M5 locking nut

9 Documentation

10 1.5m (4.9ft) Power Cable





Dragonfly 4-5 and Wi-fish






Dragonfly 7 Pro



GENERAL SPECIFICATIONS

Nominal Supply Voltage 12 V DC
Operating Voltage Range 10.8 V DC to 15.6 V DC
Power Consumption At Full Brightness 4DV – 3 W RMS | 4DVS – 3.9 W RMS | 4Pro – 4.3 W RMS | 5DVS – 4.7 W RMS | 5M – 2.9 W RMS | 5Pro – 5.3 W RMS | 7Pro - 9 W RMS
Connections Power / Transducer combined input (5M model: Power input only)
Waterproofing Standard IPX6 and IPX7
Display Size Dragonfly 4 (All models): 4.3 in | Dragonfly 5 (All models): 5.0 in | Dragonfly 7: 7.0in
Display Resolution Dragonfly 4 (All models): 480 x 272 WQVGA | Dragonfly 5 (All models): 800 x 480 WVGA | Dragonfly 7: 800 x 480 WVGA
Aspect Ratio Dragonfly 4 (All models): 16:9 | Dragonfly 5 (All models): 15:9 | Dragonfly 7: 15:9



GPS & CARTOGRAPHY (PRO AND M MODELS ONLY)

GPS Channels                                        72 GPS / GLONASS Channels
Chart Compatibility LightHouse vector and raster charts | Navionics Gold, Plus, Hotmaps and SonarChart | C-MAP by Jeppesen
Waypoints 3,000 waypoints (split between up to 100 waypoint groups)
Tracks 15 tracks (each track can contain up to 10,000 points)
Chart Media MicroSD



SONAR (ALL MODELS EXCEPT 5M)

Sonar Type                                 CHIRP Sonar (All models except 5M)
Sonar Channels 2 Channels - Sonar conical beam + DownVision™ wide fan beam (All models except 5M)
Depth Range 183m (600ft) CHIRP DownVision™ and CHIRP Sonar Models 275m (900ft)
Warranty 1 Year Warranty*
