Simrad GO7 XSR Totalscan, 3G Bundle

Simrad GO7 XSR Totalscan, 3G Bundle

Manufacturer Part No: 000-14087-001 |
Sorry no longer available

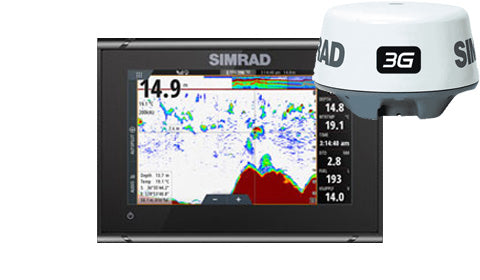

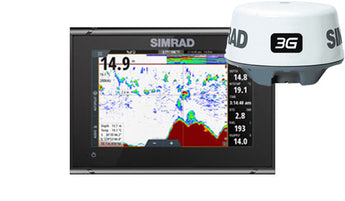

7-inch chartplotter and radar display with Broadband 3G™ radar.

The Simrad GO7 XSR chartplotter navigation display is a perfect way to expand the capabilities of sportboats, cruisers, and smaller center consoles with plug-and-play support for Simrad Broadband Radar™ and Halo™ Pulse Compression radar systems. Behind a super-bright, multi-touch widescreen display lies a built-in GPS receiver, wireless connectivity, and industry standard NMEA 2000® networking. Connect with smartphones and tablets, control your onboard sound system, monitor engine data, and choose from an array of built-in sonar technology to cruise with confidence and find fish like a pro.

Simrad GO7 and B&G Vulcan U-Bracket

Mounting Bracket GO7 XSR and Vulcan 7R

£21.26 ex-VAT

Simrad GO7 XSR Suncover


£16.86 ex-VAT

In the Box

1 Display unit

2 Panel mounting kit • Gasket • Mounting screws (4x #4 x 3/4" PN HD SS)

3 Sun cover

4 Cable Combined power and NMEA 2000 cable - 5" unit Power cable - 7", 9" and 12" units

5 Fuseholder and fuse (3 A, ATC-blade)

6 Protective caps 2x - 5" unit 3x - 7", 9" and 12" units

7 Documentation package • Installation manual • Quick guide • Mounting template

8 A: Bracket mounting kit - 5" unit • Quick Release Bracket • Mounting screws (4x #10 x 3/4" PN HD SS)

B: Bracket mounting kit - 7" and 9" units • U bracket (plastic) • Mounting screws (4x #10 x 3/4" PN HD SS) • Bracket knobs (2x)

C: Bracket mounting kit - 12" unit • U bracket (metal) • Mounting screws (4x #10 x 3/4" PN HD SS) • Bracket knobs (2x)

GO XSE 5 Dimensions

Product Width 152mm / 5.98″

Product Height 120mm / 4.72″

Product Depth 58mm / 2.28″


GO XSE 7 Dimensions

Product Width 197mm / 7.76″

Product Height 141mm / 5.56″

Product Depth 74.7mm / 2.94″


GO XSE 9 Dimensions

Product Width 242mm / 9.52″

Product Height 170mm / 6.69″

Product Depth 79mm / 3.11″


GO XSE 12 Dimensions

Product Width 310mm / 12.20″

Product Height 219.1mm / 8.63″

Product Depth 74.7mm / 2.94″
