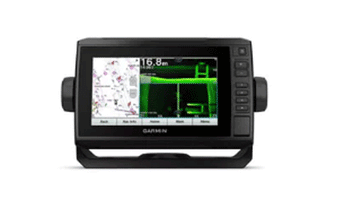

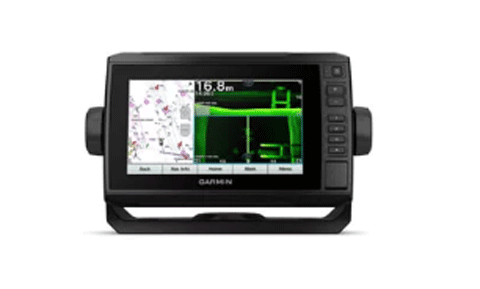

Garmin ECHOMAP UHD 75sv Chartplotter No Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin ECHOMAP UHD 75sv is a 7 inch keyed chartplotter and fishfinder that adds Ultra High-Definition Garmin SideVu scanning sonar to the CHIRP traditional and UHD ClearVu sonar of the 75cv, giving you a sharp, photo like view to either side of your boat. The bright, sunlight readable WVGA display and built in Quickdraw Contours mapping cover navigation and custom mapping with 0.3 m (1 ft) contours.
Built in Wi-Fi connects to the ActiveCaptain app, while NMEA 2000 and NMEA 0183 let you integrate sensors, autopilot and other equipment. This unit is supplied without a transducer, so you can fit the SideVu capable transducer best suited to your boat.
PRODUCT DETAILS
- 7 inch sunlight readable WVGA display, 800 x 400 resolution
- Ultra High-Definition Garmin ClearVu and SideVu scanning sonar
- CHIRP traditional sonar for clear target separation
- Garmin Quickdraw Contours mapping creates custom maps
- Built in Wi-Fi plus NMEA 2000 and NMEA 0183 connectivity
- Supplied without transducer; IPX7 waterproof housing
No exploded diagram available for this product.
No compatible transducers listed for this product.
Garmin NMEA 2000 Multi-port T-connector
Garmin GMS 10 Ethernet Network Port Expander or Network Switch
GTEMP 10-TH Thru-hull Temp Sensor
Garmin 8-pin Transducer to 12-pin Sounder Adapter Cable with XID
Garmin Steady Cast Heading Sensor
Garmin Weather Cap For Power Data Cable
Garmin 12 pin Sounder to Y 8 pin and 12 pin Transducer Adapter Cable
Garmin NMEA2000 Field Installation Female Connector
Protective Cover
Garmin Trim Piece Snap Covers Echomap Plus 7Xcv, 7Xsv
Garmin Cable Grommet for Marine Network Cables
Garmin Marine Network Cables (Large Connectors), 50 ft (15.24 m)
Garmin Power Data Cable 4-Pin Echomap Plus 7Xcv 7Xsv 9Xsv NMEA 0183
Garmin NMEA2000 Backbone Cable 10m
Garmin NMEA2000 Power Isolator
Garmin GFS 10 NMEA2000 Petrol Fuel Flow Sensor
Garmin NMEA2000 Field Installation Male Connector
Garmin Replacement RJ45 Split Threaded collar Connector 2 Pack 18mm
Garmin NMEA2000 Terminator Female
GPS 24xd HVS - 010-02316-00
Garmin 6ft Marine Network Cable Ethernet RJ45
Garmin 4-pin Transducer to 12-pin Sounder Adapter Cable
Garmin NMEA2000 Tee Connector
Garmin GPS 24XD Dual Frequency Antenna
Garmin Split collar 11mm connector
Garmin Right angle NMEA 2000 cable
Garmin NMEA2000 Power Cable
Transducer Spray Shield
Garmin NMEA2000 Inline Terminator Male
Garmin Marine Network Cable In Line Coupler or Joiner
GPS 24xd Receiver and Antenna, For the NMEA 2000® Network, Black - 010-02316-20
Garmin NMEA 2000 Weather Cap
Garmin NMEA2000 starter kit
Garmin Marine Network Cable Connector RJ45 Plug 2 Pack
Garmin 40ft Marine Network Cable Ethernet RJ45
Garmin Weather Cap for RJ45 Connector
Garmin GNA 10, NMEA 2000 Multi-Function Adapter
Garmin 500ft Marine Network Cable Only, No RJ45 Plugs or Connectors
Image coming soonTransducer Right Angle Adapter Cable (12-pin)
Garmin NMEA2000 Backbone Drop or Spur Cable 30cm
Garmin NMEA2000 Terminator Male
Garmin 3m 12pin Transducer Extension Cable
Garmin Marine Network Cables (Large Connectors), 6 ft (1.83 m)
Garmin 30ft Xdcr Extension Cable 12 pin with XID
Garmin NMEA2000 Backbone, Drop or Spur Cable 2m
Garmin NMEA2000 Backbone Drop or Spur Cable 4m
Garmin NMEA2000 Backbone Drop or Spur Cable 6m
Garmin 20ft Marine Network Cable Ethernet RJ45
Garmin Flush Mount kit Echomap Plus 7Xcv, 7Xsv Series
No compatible products found.
Display
| Display size | 15.5 x 8.7 cm (6.1 x 3.4 in.), 7 in. diagonal |
| Display resolution | WVGA, 800 x 400 pixels |
| Display type | Colour, keypad controlled |
GPS/GNSS
| Waypoints / routes / tracks | 5,000 waypoints; 100 routes; 50,000 track points, 50 saved tracks |
Sonar
| Built-in sonar | CHIRP traditional, Ultra High-Definition Garmin ClearVu and SideVu scanning sonar |
| Sonar frequencies | Traditional 50, 77, 83, 200 kHz; CHIRP ClearVu and SideVu 260/455/800 kHz |
| Sonar transmit power (RMS) | 500 W |
| Sonar depth | 701 m (2,300 ft.) at 77 kHz (transducer dependent) |
Connectivity
| Networking | NMEA 2000, NMEA 0183, Wi-Fi (ActiveCaptain) |
| Wireless frequency | 2.4 GHz @ 18.5 dBm maximum |
| NMEA 2000 LEN | 1 @ 9 Vdc (75 mA max.) |
| Memory card | 1 microSD card slot; 32 GB max. card size |
Physical
| Dimensions on cradle and bail mount (W x H x D) | 25.9 x 15.4 x 6.3 cm (10.2 x 6.0 x 2.5 in.) |
| Weight | 0.77 kg (1.7 lb.) |
| Material | Polycarbonate plastic |
| Compass-safe distance | 65 cm (25.6 in.) |
Electrical
| Input voltage | 9 to 18 Vdc |
| Max. power draw | 15 W |
| Fuse | 3 A, 125 V fast-acting |
Environmental
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C (5 to 131 F) |
