This product has been discontinued by Garmin and is no longer available to buy.
Garmin

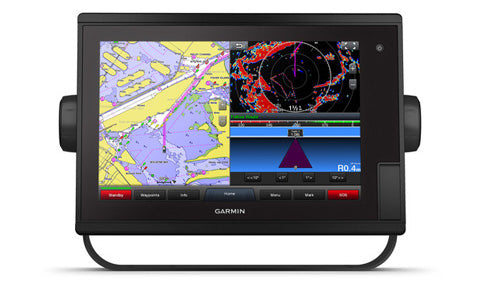

Garmin GPSMap 1222 Touch
Description
The GPSMAP 1222 Touch is a 12.1 inch multi-touch chartplotter designed for coastal cruisers who want a large, intuitive helm display. The WXGA touchscreen carries a preloaded worldwide basemap, and an internal 10 Hz GPS updates position and heading ten times a second for smooth, responsive navigation.
This is the non-sonar model, so fishfinding is added through a networked Garmin sonar module or transducer. It is fully network capable over the Garmin Marine Network, NMEA 2000, NMEA 0183 and J1939 for engine data, with built-in Wi-Fi for ActiveCaptain, allowing it to control radar, autopilots, sonar and digital switching across a connected system.
PRODUCT DETAILS
- 12.1 inch WXGA multi-touch colour touchscreen with worldwide basemap
- Internal 10 Hz GPS/GLONASS for fast position and heading updates
- Non-sonar model; supports networked Garmin sonar modules and transducers
- Garmin Marine Network, NMEA 2000, NMEA 0183 and J1939 connectivity
- Built-in Wi-Fi for the Garmin ActiveCaptain app
- IPX7 waterproof, flush or bail mount
No exploded diagram available for this product.
No compatible transducers listed for this product.
Garmin Trim Piece Snap Covers for GPSMAP 7412
GPSMAP Series Update on SD™ Card
Garmin NMEA 2000 Multi-port T-connector
Garmin GMS 10 Ethernet Network Port Expander or Network Switch
GTEMP 10-TH Thru-hull Temp Sensor
Garmin Steady Cast Heading Sensor
Garmin Flush Mount Kit for GPSMAP 7412
Garmin GDT 43 Analogue Thru Hull Depth and Temperature Transducer
Garmin NMEA2000 Field Installation Female Connector
Garmin Cable Grommet for Marine Network Cables
Garmin GST 43 and GST 10 Bundle Analogue Thru Hull Speed Transducer and NMEA2000 Converter Bundle
Garmin Marine Network to Fusion® Cable, Small (F) to RJ45, 6 in
Garmin Marine Network Cables (Large Connectors), 50 ft (15.24 m)
Garmin NMEA2000 Backbone Cable 10m
Garmin GET 10 Analogue Engine Tilt Sender to NMEA2000 Adapter
Garmin NMEA2000 Power Isolator
Garmin 9-axis Heading Sensor
Garmin GFS 10 NMEA2000 Petrol Fuel Flow Sensor
Garmin NMEA2000 Field Installation Male Connector
Garmin Marine Network to Fusion® Cable, Large (M) to RJ45, 6 ft
Garmin Replacement RJ45 Split Threaded collar Connector 2 Pack 18mm
Garmin NMEA2000 Terminator Female
Garmin GST 43 Analogue Thru Hull Speed Transducer
GPS 24xd HVS - 010-02316-00
Garmin 6ft Marine Network Cable Ethernet RJ45
Garmin GRID 20 Remote Input device Horizontal orientation
Garmin GST 10 Analogue Water Speed and Temperature Adapter
Garmin BlueNet™ 30 Gateway
Garmin NMEA2000 Tee Connector
Garmin GPS 24XD Dual Frequency Antenna
Garmin Right angle NMEA 2000 cable
Garmin Micro SD Card Door for GPSMAP 7408 7410 7412 7416
Garmin NMEA2000 Power Cable
Yamaha® Engine Bus to J1939 Adapter Cable
Garmin HDMI Cable For GPSMAP
Garmin GDT 43 Analogue Thru Hull Depth and Temperature Transducer and NMEA2000 Converter Bundle
Garmin NMEA2000 Inline Terminator Male
Garmin Marine Network Cable In Line Coupler or Joiner
GPS 24xd Receiver and Antenna, For the NMEA 2000® Network, Black - 010-02316-20
Garmin NMEA 2000 Weather Cap
Garmin NMEA2000 starter kit
Garmin Marine Network Cable Connector RJ45 Plug 2 Pack
Garmin 40ft Marine Network Cable Ethernet RJ45
Garmin GPSMAP Power Cable and Data Cable 8 pin
Garmin GRA 10 Analogue Rudder Angle Sender to NMEA2000 Adapter
Garmin GRID 20 Remote Input device vertical orientation
Garmin GFL 10 Analogue Fluid Level Sender to NMEA2000 Adapter
Garmin Weather Cap for RJ45 Connector
Garmin GPSMAP 8412 Flush Mount Kit
Garmin 500ft Marine Network Cable Only, No RJ45 Plugs or Connectors
No compatible products found.
General
| Series | GPSMAP 1222 Touch |
| Control | Touchscreen |
| Preloaded charts | Worldwide basemap |
| GPS | Internal 10 Hz GPS/GLONASS |
| J1939 | J1939 engine data supported |
Display
| Display size | 26.2 x 16.3 cm (10.3 x 6.4 in.), 12.1 in. diagonal |
| Display resolution | WXGA, 1280 x 800 pixels |
| Display type | Multi-touch colour touchscreen |
Sonar
| Built-in sonar | None; networked sonar via compatible Garmin sonar module or transducer |
Compatibility
| Networking | Garmin Marine Network, NMEA 2000, NMEA 0183, J1939, Wi-Fi |
| Wireless frequency | 2.4 GHz @ 15.26 dBm |
| Memory card | 2 SD card slots; 32 GB max. card size |
Physical
| Dimensions (W x H x D) | 33.0 x 22.6 x 7.9 cm (13.0 x 8.9 x 3.1 in.) |
| Weight | 2.72 kg (6.0 lb.) |
| Material | Die-cast aluminium and polycarbonate plastic |
| Compass-safe distance | 65 cm (25.6 in.) |
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C (5 to 131 F) |
| Input voltage | 10 to 32 Vdc |
| Max. power usage at 10 Vdc | 36 W |
| Fuse | 6 A, 125 V fast-acting |
