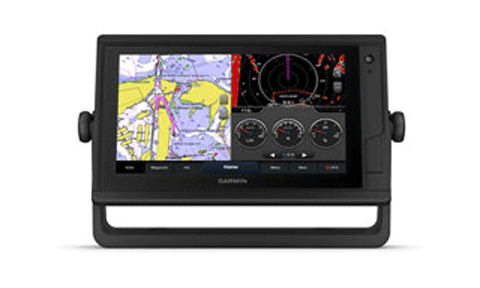

Garmin GPSMAP 922 Plus
Description
The GPSMAP 922 Plus is a 9 inch touchscreen chartplotter that gives mid-size helms a clear, fast display and full control over a connected Garmin marine system. Its WSVGA touchscreen runs a preloaded worldwide basemap, while an internal 10 Hz GPS updates position and heading ten times per second for smooth, dependable charting.
As the non-sonar model in the 922 Plus family it uses a networked Garmin sonar module or transducer when fishfinding is needed. It connects over the Garmin Marine Network, NMEA 2000 and NMEA 0183, with built-in Wi-Fi for the ActiveCaptain app, and shares radar, sonar, autopilot and sensor data across additional displays.
PRODUCT DETAILS
- 9 inch WSVGA colour touchscreen with preloaded worldwide basemap
- Internal 10 Hz GPS/GLONASS for fast position and heading updates
- Non-sonar model; supports networked Garmin sonar modules and transducers
- Garmin Marine Network, NMEA 2000 and NMEA 0183 connectivity
- Built-in Wi-Fi for the Garmin ActiveCaptain app
- IPX7 waterproof, flush or bail mount
No exploded diagram available for this product.
No compatible transducers listed for this product.
GPSMAP Series Update on SD™ Card
Garmin NMEA 2000 Multi-port T-connector
Garmin GMS 10 Ethernet Network Port Expander or Network Switch
GTEMP 10-TH Thru-hull Temp Sensor
Garmin Steady Cast Heading Sensor
Garmin GDT 43 Analogue Thru Hull Depth and Temperature Transducer
Garmin NMEA2000 Field Installation Female Connector
Garmin Cable Grommet for Marine Network Cables
Garmin GST 43 and GST 10 Bundle Analogue Thru Hull Speed Transducer and NMEA2000 Converter Bundle
Garmin Marine Network Cables (Large Connectors), 50 ft (15.24 m)
Garmin NMEA2000 Backbone Cable 10m
Garmin GET 10 Analogue Engine Tilt Sender to NMEA2000 Adapter
Garmin NMEA2000 Power Isolator
Garmin 9-axis Heading Sensor
Garmin GFS 10 NMEA2000 Petrol Fuel Flow Sensor
Garmin NMEA2000 Field Installation Male Connector
Garmin Replacement RJ45 Split Threaded collar Connector 2 Pack 18mm
Garmin NMEA2000 Terminator Female
Garmin GST 43 Analogue Thru Hull Speed Transducer
GPS 24xd HVS - 010-02316-00
Garmin 6ft Marine Network Cable Ethernet RJ45
Garmin Bail Mount for the GPSMAP 922
Garmin GRID 20 Remote Input device Horizontal orientation
Garmin Power and Data Cable for the GPSMAP 722, 922, 1022 and 1222
Garmin GST 10 Analogue Water Speed and Temperature Adapter
Garmin BlueNet™ 30 Gateway
Garmin NMEA2000 Tee Connector
Garmin GPS 24XD Dual Frequency Antenna
Garmin GPSMAP 722 and 922 SD Card Door
Garmin Right angle NMEA 2000 cable
Garmin Trim Bezel Snap Cover for the GPSMAP 922
Garmin NMEA2000 Power Cable
Yamaha® Engine Bus to J1939 Adapter Cable
Garmin GDT 43 Analogue Thru Hull Depth and Temperature Transducer and NMEA2000 Converter Bundle
Garmin NMEA2000 Inline Terminator Male
Garmin Marine Network Cable In Line Coupler or Joiner
GPS 24xd Receiver and Antenna, For the NMEA 2000® Network, Black - 010-02316-20
Garmin NMEA 2000 Weather Cap
Garmin Marine Network Cable PoE Isolation Coupler for Flir Cameras
Garmin NMEA2000 starter kit
Garmin Marine Network Cable Connector RJ45 Plug 2 Pack
Garmin 40ft Marine Network Cable Ethernet RJ45
Garmin GRA 10 Analogue Rudder Angle Sender to NMEA2000 Adapter
Garmin GRID 20 Remote Input device vertical orientation
Garmin GFL 10 Analogue Fluid Level Sender to NMEA2000 Adapter
Garmin Weather Cap for RJ45 Connector
Garmin GNA 10, NMEA 2000 Multi-Function Adapter
Garmin 500ft Marine Network Cable Only, No RJ45 Plugs or Connectors
Garmin GND 10 Black Box Bridge between gWind and NMEA2000
Garmin NMEA2000 Backbone Drop or Spur Cable 30cm
No compatible products found.
General
| Series | GPSMAP 9x2 Plus |
| Control | Touchscreen |
| Preloaded charts | Worldwide basemap |
| GPS | Internal 10 Hz GPS/GLONASS |
Display
| Display size | 19.6 x 11.4 cm (7.7 x 4.5 in.), 9 in. diagonal |
| Display resolution | WSVGA, 1024 x 600 pixels |
| Display type | Colour touchscreen |
Sonar
| Built-in sonar | None; networked sonar via compatible Garmin sonar module or transducer |
Compatibility
| Networking | Garmin Marine Network, NMEA 2000, NMEA 0183, Wi-Fi |
| Wireless frequency | 2.4 GHz @ 17.6 dBm maximum |
| Memory card | 2 SD card slots; 32 GB max. card size |
Physical
| Dimensions with cover on bail mount (W x H x D) | 289.4 x 181.1 x 73.8 mm (11 3/8 x 7 1/8 x 2 15/16 in.) |
| Weight | 1.27 kg (2.8 lb.) |
| Material | Polycarbonate plastic and die-cast aluminium |
| Compass-safe distance | 76 cm (30 in.) |
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C (5 to 131 F) |
| Input voltage | 10 to 32 Vdc |
| Max. power usage at 10 Vdc | 27 W |
