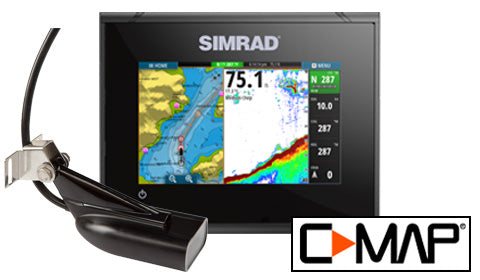

Simrad GO5 XSE HDI Transducer CMAP PRO
Get more from every day on the water with the Simrad GO5 XSE, a perfect fit for compact sportboats and dayboats. Behind its super-bright touchscreen lies a chartplotter with built-in GPS receiver, and Wi-Fi access to the latest charts and updates. Control your onboard sound system, monitor engine data and more over NMEA 2000®, and choose from an array of built-in sonar technologies: cruise with confidence using ForwardScan™ forward-looking sonar, or find fish like a pro with Broadband Sounder™ CHIRP sonar plus StructureScan® HD SideScan and DownScan Imaging™. Includes HDI Skimmer® transducer for medium/high frequency CHIRP sonar and DownScan Imaging™ views.
QRB-5 - Mounting Bracket for Mark-5 and Elite-5 Models
£21.26 ex-VAT
Simrad GO5 B&G Vulcan 5 Power and NMEA2000 Cable
£31.53 ex-VAT
Simrad GO5 B&G Vulcan 5 Dash Mount Kit
£10.26 ex-VAT
In the Box
1 Display unit
2 Panel mounting kit • Gasket • Mounting screws (4x #4 x 3/4" PN HD SS)
3 Sun cover
4 Cable Combined power and NMEA 2000 cable - 5" unit Power cable - 7", 9" and 12" units
5 Fuseholder and fuse (3 A, ATC-blade)
6 Protective caps 2x - 5" unit 3x - 7", 9" and 12" units
7 Documentation package • Installation manual • Quick guide • Mounting template
8 A: Bracket mounting kit - 5" unit • Quick Release Bracket • Mounting screws (4x #10 x 3/4" PN HD SS)
B: Bracket mounting kit - 7" and 9" units • U bracket (plastic) • Mounting screws (4x #10 x 3/4" PN HD SS) • Bracket knobs (2x)
C: Bracket mounting kit - 12" unit • U bracket (metal) • Mounting screws (4x #10 x 3/4" PN HD SS) • Bracket knobs (2x)
GO XSE 5 Dimensions
Product Width 152mm / 5.98″
Product Height 120mm / 4.72″
Product Depth 58mm / 2.28″
GO XSE 7 Dimensions
Product Width 197mm / 7.76″
Product Height 141mm / 5.56″
Product Depth 74.7mm / 2.94″
GO XSE 9 Dimensions
Product Width 242mm / 9.52″
Product Height 170mm / 6.69″
Product Depth 79mm / 3.11″
GO XSE 12 Dimensions
Product Width 310mm / 12.20″
Product Height 219.1mm / 8.63″
Product Depth 74.7mm / 2.94″
