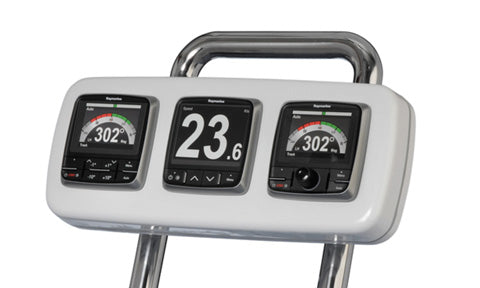

Scanstrut SPH-3I-W helm pod with stainless guard fitted with three Raymarine i70s instruments, front viewScanstrut SPH-3I-W helm pod with stainless guard fitted with three Raymarine i70s instruments, front view
Close-up of Scanstrut SPH-3I-W helm pod holding three Raymarine instruments, heading 302 and 23.6 shownClose-up of Scanstrut SPH-3I-W helm pod holding three Raymarine instruments, heading 302 and 23.6 shown
Helmsman at the wheel beside a Scanstrut helm pod with two instrument displays on a sailing yachtHelmsman at the wheel beside a Scanstrut helm pod with two instrument displays on a sailing yacht
Scanstrut helm pod range datasheet with cut-out sizes table and views, including SPH-3I-WScanstrut helm pod range datasheet with cut-out sizes table and views, including SPH-3I-W
Scanstrut SPH-3I-W helm pod with stainless guard fitted with three Raymarine i70s instruments, front view
Close-up of Scanstrut SPH-3I-W helm pod holding three Raymarine instruments, heading 302 and 23.6 shown
Helmsman at the wheel beside a Scanstrut helm pod with two instrument displays on a sailing yacht
Scanstrut helm pod range datasheet with cut-out sizes table and views, including SPH-3I-W

Scanstrut

Scanstrut SPH-3I-W Helm Pod

£306.00
Tax included. Shipping calculated at checkout.
SPH-3I-W
The Scanstrut SPH-3I-W HelmPod mounts up to three standard navigation instruments plus an autopilot control at the pedestal. It clamps to pedestal guard rails from 25mm to 33.7mm diameter and seals the cable entry against the weather. Supplied uncut so the apertures can be cut to suit your chosen instruments.
✓ In stock — ready for immediate collection or dispatch

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The SPH-3I-W HelmPod is the tidy way to bring up to three standard nav instruments and an autopilot keypad together at the helm of your sailing yacht. A stainless saddle system supports the tubing for a secure, rigid fit onto any pedestal, with a universal helm fixing that suits a wide range of cockpit configurations.

A high tear strength silicone seal at the cable entry keeps water out, and the same silicone is used throughout for excellent resistance to heat and UV. The pod is supplied uncut, allowing the instrument apertures to be cut to match the displays you are fitting.

PRODUCT DETAILS

  • Helm pod that houses up to three standard 110mm marine instruments
  • 7 degree tilt for an ergonomic viewing angle at the helm
  • Mounts to a pedestal guard from 7 to 12.5 inch tube centres
  • Fits stainless steel pedestal guard tube 25 to 33.7mm diameter

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

General

Pod typeHelm pod for pedestal guard mounting
Tilt angle7 degrees

Compatibility

Display capacityUp to 3 standard 110mm instruments

Dimensions

Overall dimensions432 x 181 mm (17 x 7.1 in)
Maximum usable face390 x 140 mm (15.35 x 5.5 in)
Maximum cut-out area368 x 118 mm (14.5 x 4.65 in)

Fixing

Pedestal guard fitmentFits pedestal guards from 177.8mm (7 in) to 317mm (12.5 in) tube centres
Pedestal guard tubeStainless steel tube 25 to 33.7mm (1 to 1.33 in) diameter, 1.5mm wall minimum
Do I have to cut the front myself?
Scanpods are supplied uncut as standard. However, for a small fee we can supply pre-cut for your electronic.
How do I cut the pod front?
Use jigsaw, but slow it right down so as not to melt the ABS. Move slowly and patiently through the plastic.
What are Scanpods made from?
They are made from acrylic capped ABS plastic, which makes them tough, corrosion free and UV stable.
