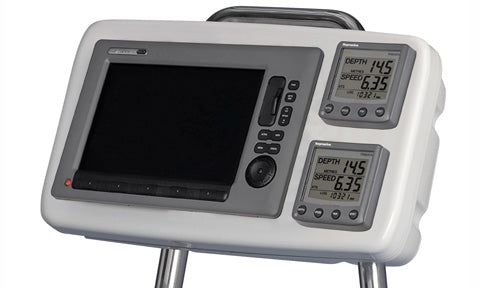

Scanstrut SPH-SYSTEM-W white helm pod on stainless legs holding a chartplotter and two instrument displaysScanstrut SPH-SYSTEM-W white helm pod on stainless legs holding a chartplotter and two instrument displays

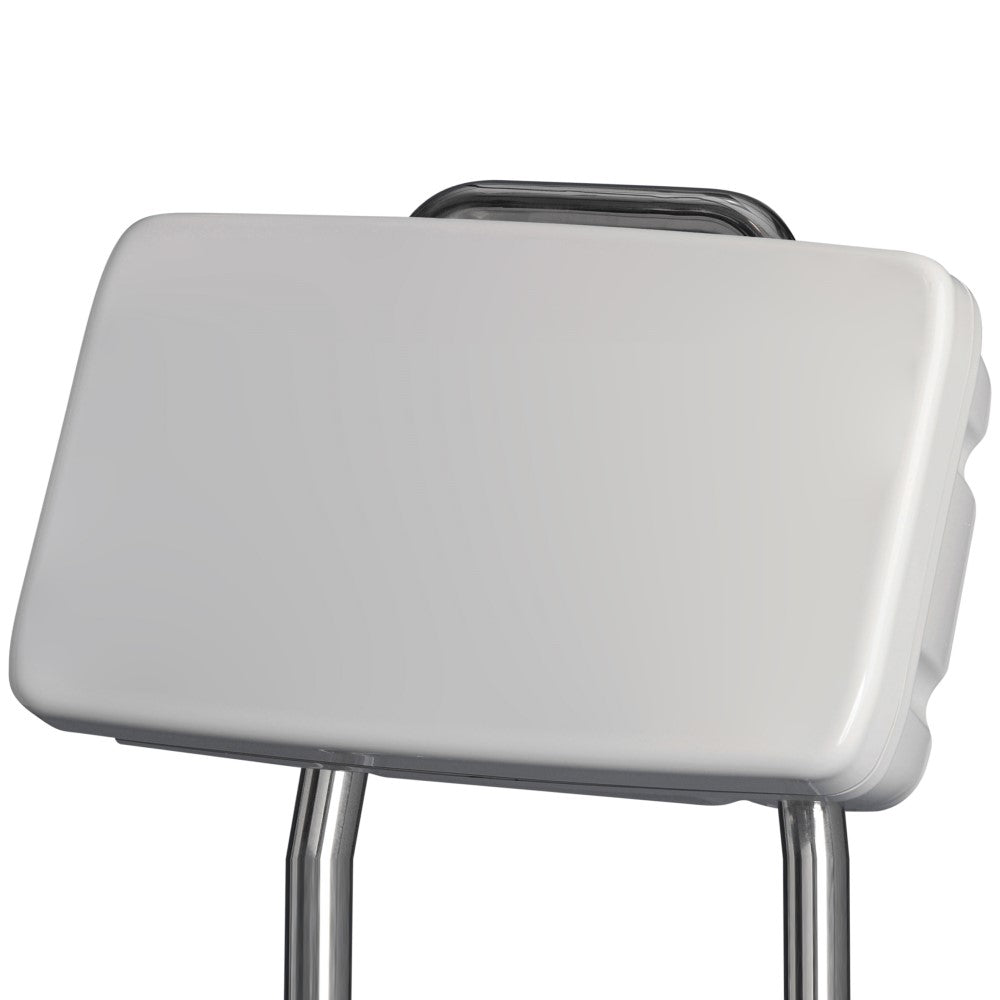

Scanstrut SPH-SYSTEM-W white helm pod with blank front cover fitted on two stainless steel support tubesScanstrut SPH-SYSTEM-W white helm pod with blank front cover fitted on two stainless steel support tubes

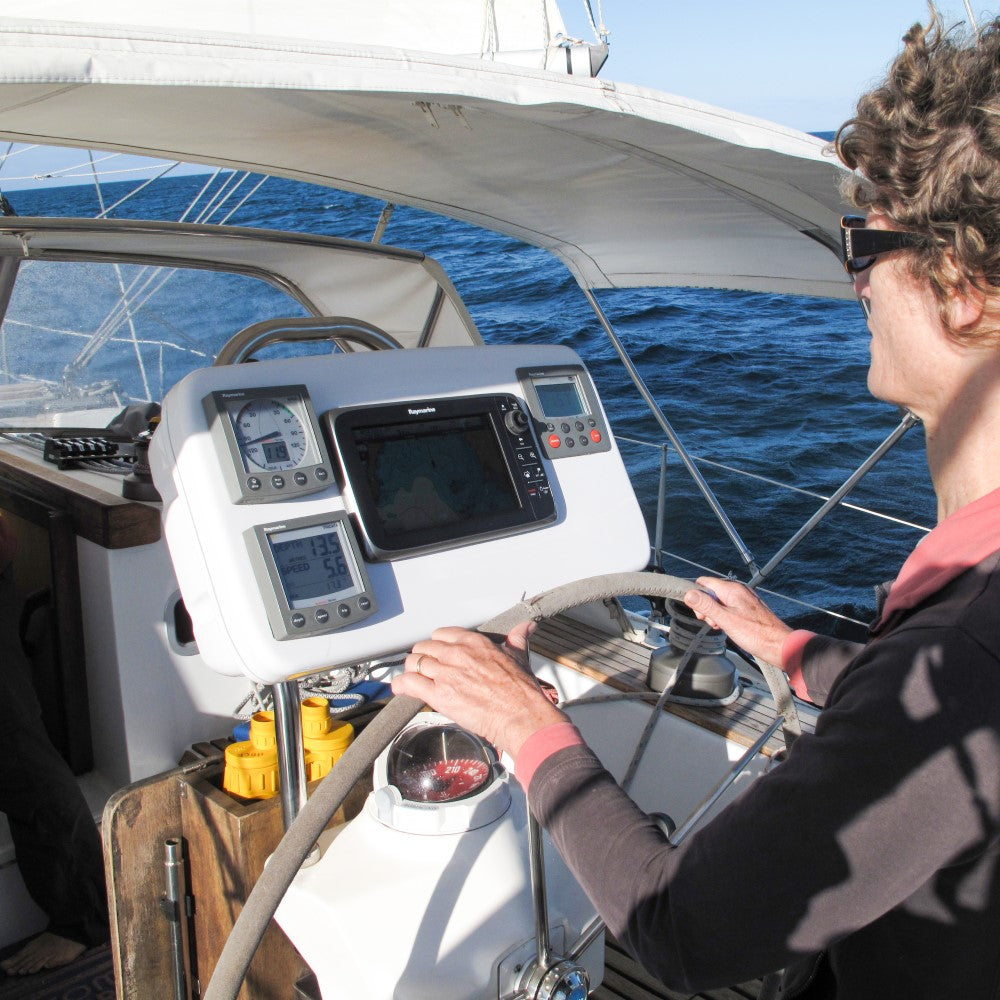

Scanstrut SPH-SYSTEM-W helm pod in use on a sailing yacht, helmsman at the wheel beside the chartplotter and instrumentsScanstrut SPH-SYSTEM-W helm pod in use on a sailing yacht, helmsman at the wheel beside the chartplotter and instruments
Scanstrut SPH-SYSTEM-W helm pod dimensions drawing with cut-out size tables for the SPH range of podsScanstrut SPH-SYSTEM-W helm pod dimensions drawing with cut-out size tables for the SPH range of pods
Scanstrut SPH-SYSTEM-W white helm pod on stainless legs holding a chartplotter and two instrument displays
Scanstrut SPH-SYSTEM-W white helm pod with blank front cover fitted on two stainless steel support tubes
Scanstrut SPH-SYSTEM-W helm pod in use on a sailing yacht, helmsman at the wheel beside the chartplotter and instruments
Scanstrut SPH-SYSTEM-W helm pod dimensions drawing with cut-out size tables for the SPH range of pods

Scanstrut

Scanstrut SPH-SYSTEM-W Helm Pod

£607.50
Tax included. Shipping calculated at checkout.
SPH-SYSTEM-W
The Scanstrut SPH-SYSTEM-W SystemPod is a full helm system pod that combines a chartplotter or multifunction display with a row of standard navigation instruments at the pedestal. It clamps to guard rails from 25mm to 33.7mm diameter with a watertight seal at the cable entry. Supplied uncut so the apertures can be cut to suit your electronics.
✓ Available for collection or delivery in ~2 days

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The SPH-SYSTEM-W SystemPod brings a complete navigation suite together at the helm of your sailing yacht, pairing a main display with standard nav instruments in one integrated housing. A stainless saddle system supports the pedestal tubing for a secure, rigid fit, with a universal helm fixing suited to a wide range of cockpit configurations.

A high tear strength silicone seal keeps the cable entry watertight, and the silicone construction gives excellent resistance to heat and UV. The pod is supplied uncut so each aperture can be cut to match the display and instruments you are fitting.

PRODUCT DETAILS

  • Large system helm pod for a main display plus instruments
  • 7 degree tilt for an ergonomic viewing angle at the helm
  • Clamps to a pedestal guard with 7 to 15 inch tube centres
  • Fits stainless steel pedestal guard tube 25 to 33.7mm diameter

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

General

Pod typeSystem helm pod for pedestal guard mounting
Tilt angle7 degrees

Compatibility

Display capacityLarge system pod for mounting a display plus instruments together

Dimensions

Overall dimensions587 x 327 mm (23.1 x 12.9 in)
Maximum usable face545 x 289 mm (21.5 x 11.4 in)
Maximum cut-out area525 x 269 mm (20.7 x 10.6 in)

Fixing

Pedestal guard fitmentFits pedestal guards with 177.8mm (7 in) to 381mm (15 in) tube centres; will fit up to 470mm (18.5 in) centres but no drilling guide provided
Pedestal guard tubeStainless steel tube 25 to 33.7mm (1 to 1.33 in) diameter
What are Scanpods made from?
They are made from acrylic capped ABS plastic, which makes them tough, corrosion free and UV stable.
Do I have to cut the front myself?
Scanpods are supplied uncut as standard. However, for a small fee we can supply pre-cut for your electronic.
How do I cut the pod front?
Use jigsaw, but slow it right down so as not to melt the ABS. Move slowly and patiently through the plastic.
How can I work if my combination of screens will all fit in a System Pod?
You can refer to the technical information to work out which electronics will fit into the System Pod. As a guide, you can install 1 x 8” screen with 4 x instruments or 1 x 12” screen with 2 x instruments.
