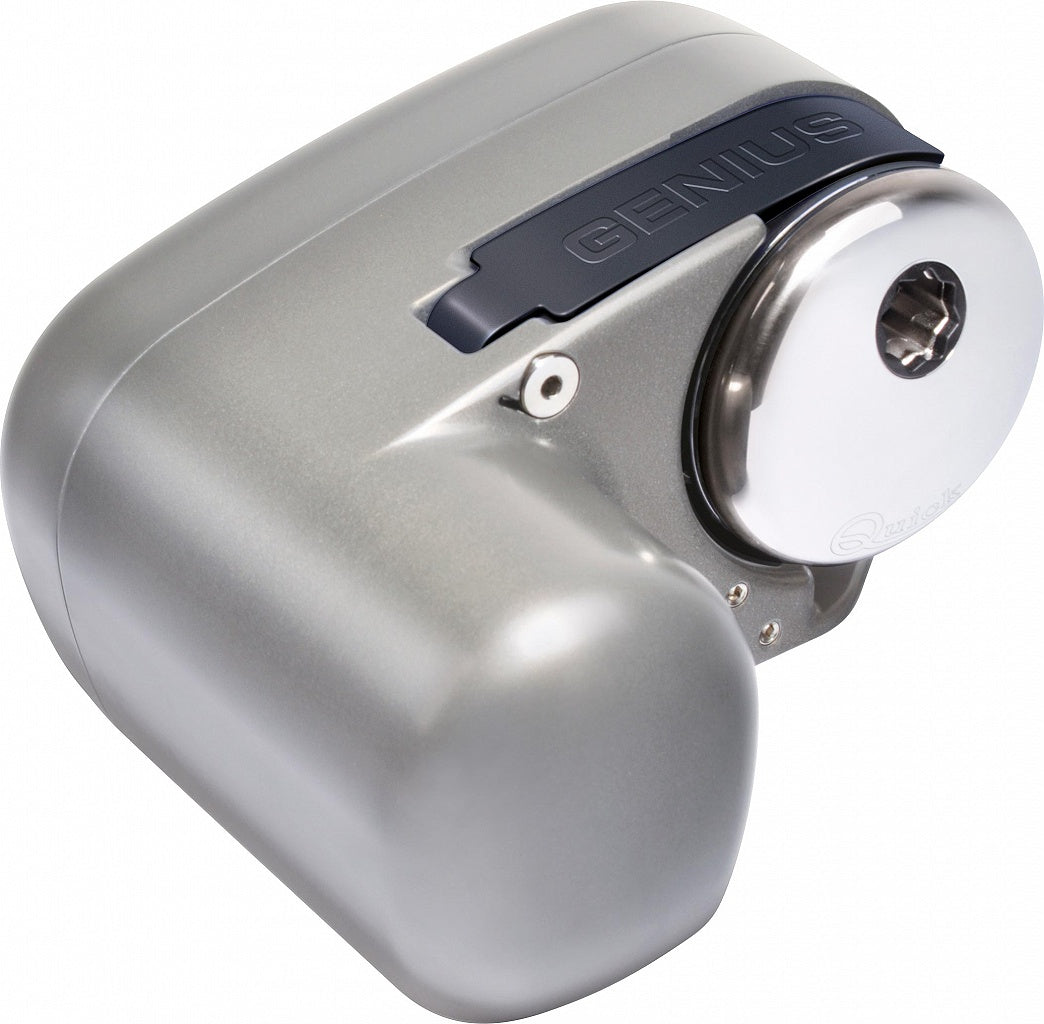

Quick Genius GP2 2000 Horizontal Windlass (800W, 24V, 1/4")
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

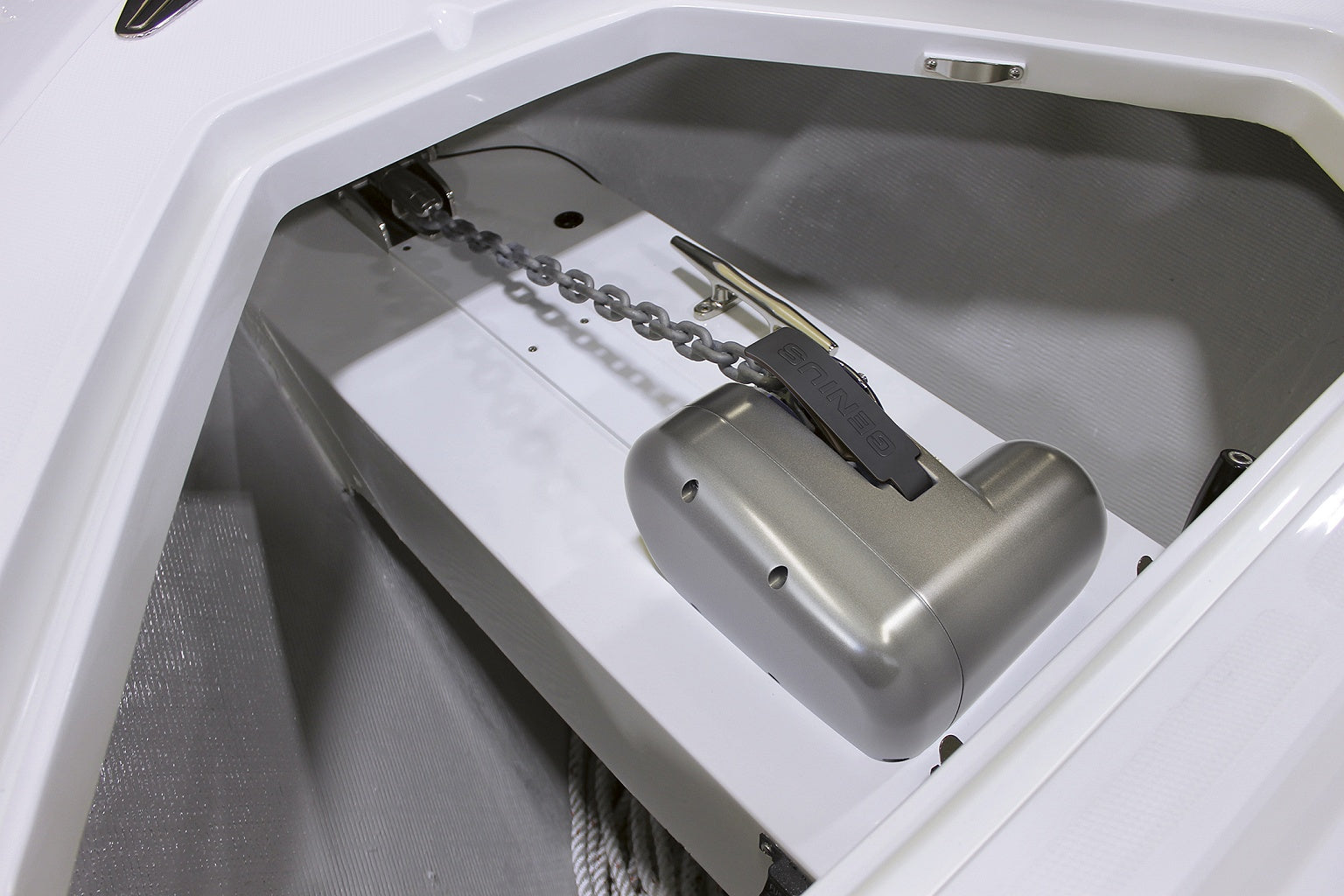

The Quick Genius GP2 2000 is a horizontal on-deck windlass with a 800 W, 24 V DC motor, supplied with a gypsy for 1/4" chain.
Quick gives an indicative boat length of 8 to 13 m for this power; the indication may vary with boat type and anchor-rode type.
For this motor (800 W, 24 V) the manual's technical data gives: maximum instantaneous pull 900 kg, maximum working load 350 kg, working load 120 kg and current draw 50 A at working load. Speeds and cable/breaker sizing are in the specifications; always size cables and breakers from the installation manual.
PRODUCT DETAILS
- Version without drum
- Gypsy for 1/4" chain
- Anodised aluminium in hard oxide base
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Supplied with pressure lever
- IP66 watertight motor
- Epicyclical gearbox
- Genuine Quick part, part number FSGP22024007A00
- Contactor units and Nylon handle (supplied as standard per Quick's GP2 series page)
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Series | Genius GP2 |
| Model code | GP2 2000 |
| Type | horizontal on-deck windlass |
Motor
| Motor power | 800 W |
| Motor supply voltage | 24 V |
| Motor type | DC |
Anchor rode
| Gypsy chain size | 1/4" |
Fitment
| Indicative boat length | 8 to 13 m |
Performance
| Maximum instantaneous pull | 900 kg |
| Maximum working load | 350 kg |
| Working load | 120 kg |
| Current consumption at working load | 50 A |
| Maximum recovery speed | 29.6 m/min |
| Recovery speed at working load | 20.1 m/min |
Installation
| Minimum motor cable cross-section (total length under 20 m) | 10 mm² |
| Deck thickness | 20 to 40 mm |
