Scanstrut DS-LP-16-S Low Profile Cable Seal - 316 Stainless Steel
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

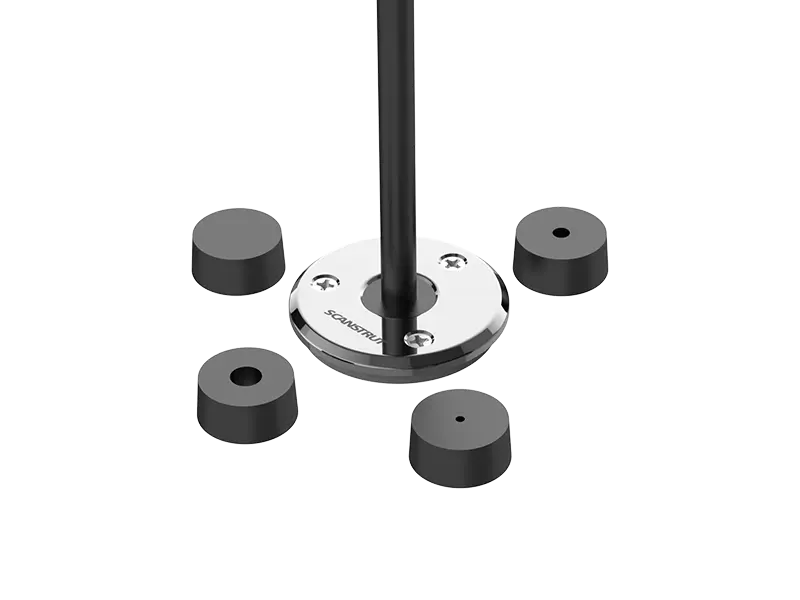

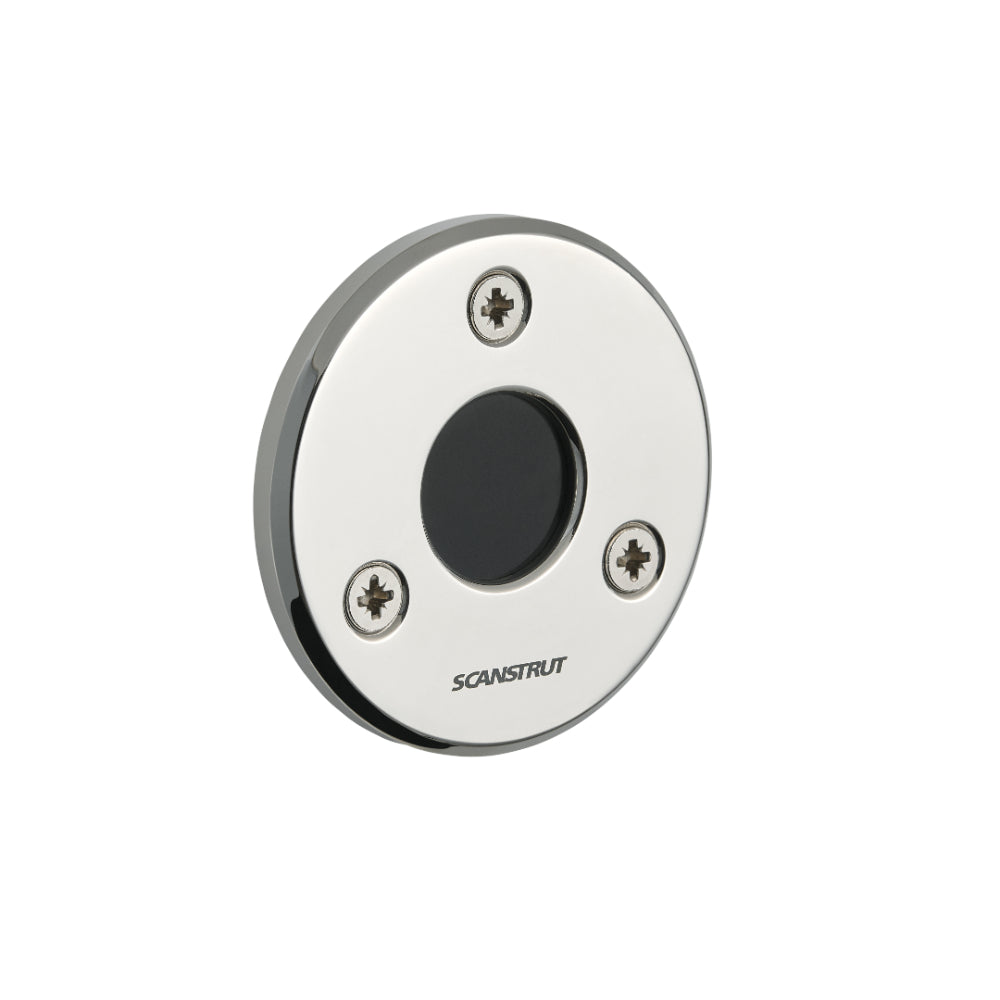

The DS-LP-16-S is the 316 stainless steel build of the compact low profile seal, sealing a single cable of 2-8mm through a deck or cabin top, while its 16mm opening lets a connector of up to 16mm pass straight through. The marine-grade stainless body shrugs off salt water and UV, and the low profile design hides the seal below the surface, reducing mounting height by 73% compared with Scanstrut's standard DS16 seal for a sleek, near-invisible result.
Fitting stays simple. A single hole saw cuts the pocket, the seal drops in and captive nuts pull it tight, with no sealant needed. Bungs for 2mm, 4mm and 7mm cables and a self-drill bung are supplied, and the IP68 feedthrough suits solar arrays, light bars and rooftop electronics where a polished stainless look is wanted.
PRODUCT DETAILS
- Ultra low-profile, flush-mounted design
- 100% waterproof, IP68 rated
- Marine-grade UV-stable materials
- Quick, sealant-free installation

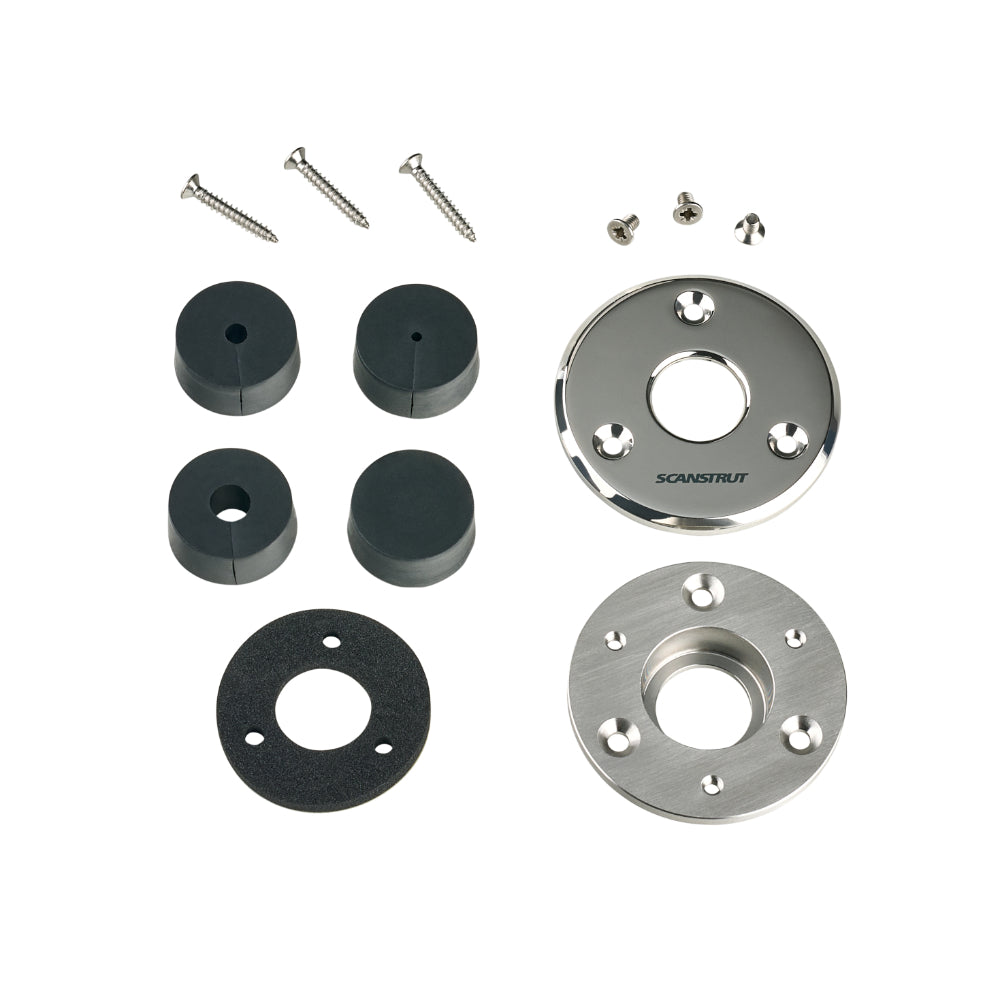

- Low-profile cable seal
- Fixing screws
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Type | Low-profile waterproof cable seal |
| Cable type | Single cable |
Cable

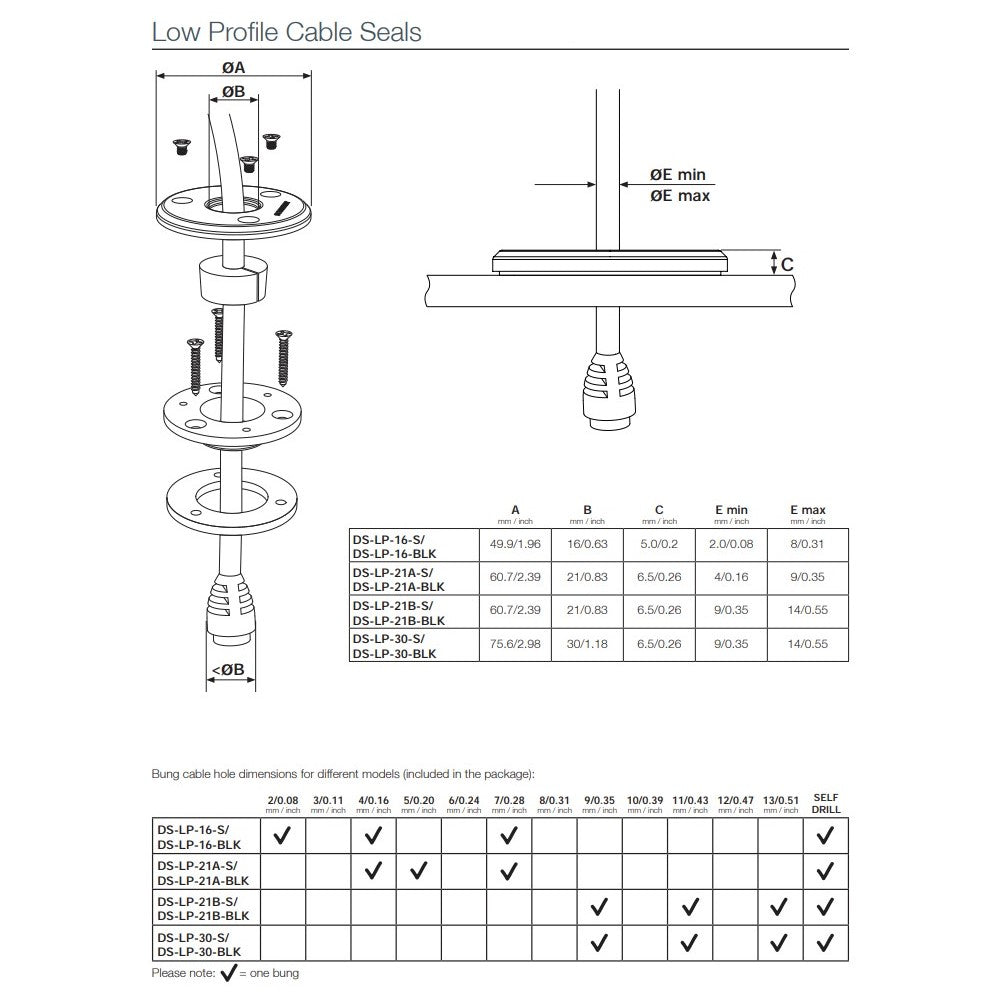

| Cable diameter range | 2-8 mm (0.08-0.31 in) |
Materials
| Finish | 316 stainless steel trim |
Environment
| Waterproof rating | IP68 |
