Scanstrut
Scanstrut DS-LP-21A-S Low Profile Cable Seal - 316 Stainless Steel
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

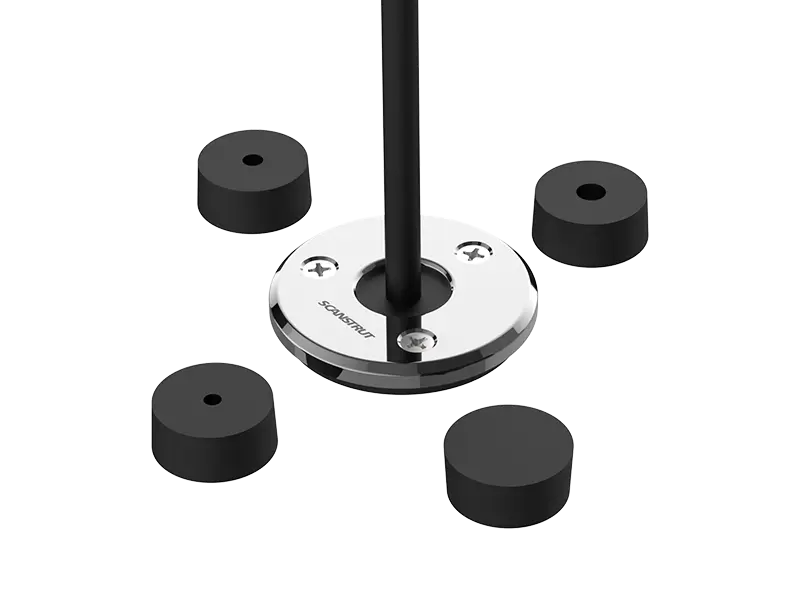

The DS-LP-21A-S pairs a 316 stainless steel body with a single-cable seal for cables of 4-9mm, while its 21mm opening lets a connector of up to 21mm pass through, so a lead with its plug already fitted can be routed without cutting it. The marine-grade stainless resists salt and UV, and the low profile design tucks the seal below the surface, reducing mounting height by 68% compared with Scanstrut's standard DS21A seal for a discreet, premium finish.

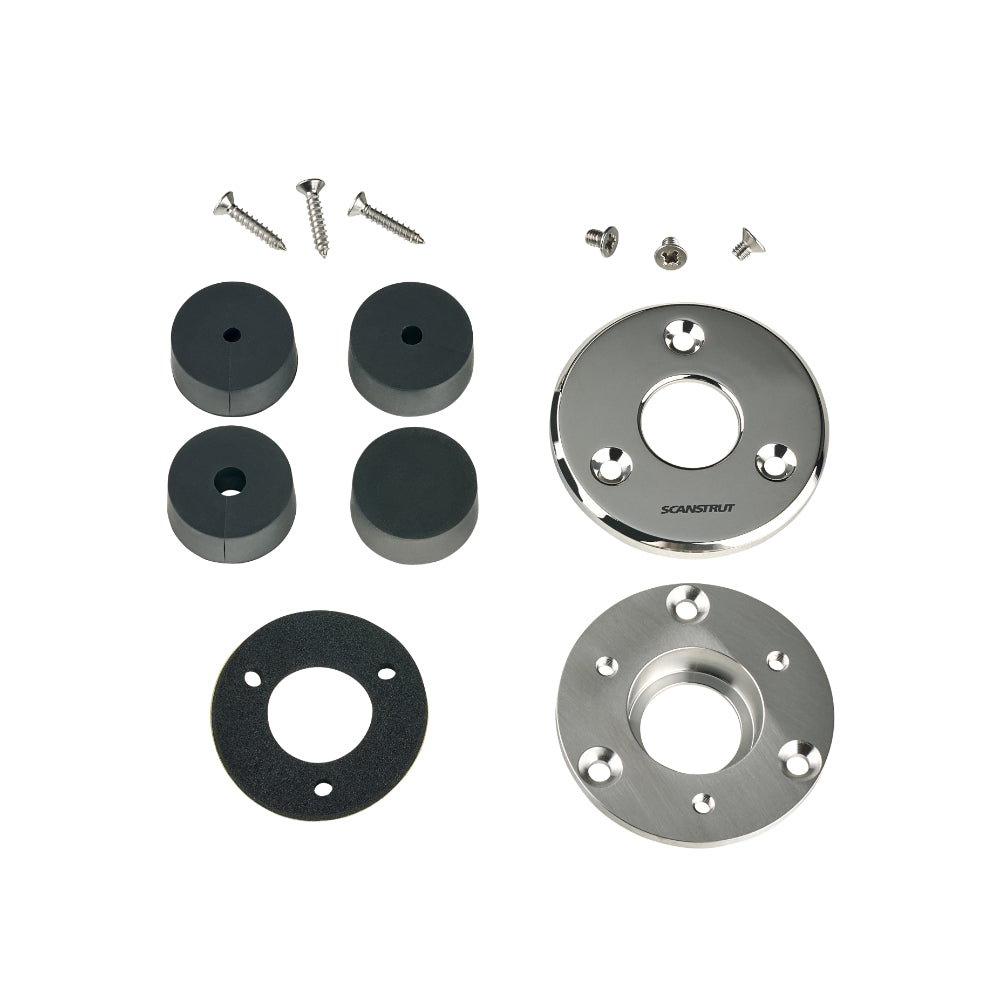

Installation needs only a single hole saw to cut the pocket. The seal locates and captive nuts pull it tight for a dependable, fully watertight IP68 feedthrough, with no sealant required. Bungs for 4mm, 5mm and 7mm cables and a self-drill bung are supplied.
PRODUCT DETAILS
- Ultra low-profile, flush-mounted design
- 100% waterproof, IP68 rated
- Marine-grade UV-stable materials
- Quick, sealant-free installation
- Low-profile cable seal
- Fixing screws
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Type | Low-profile waterproof cable seal |
| Cable type | Single cable |
Cable
| Cable diameter range | 4-9 mm (0.17-0.35 in) |
Materials
| Finish | 316 stainless steel trim |
Environment
| Waterproof rating | IP68 |
