Scanstrut DS-LP-21B-BLK Low Profile Cable Seal, Anodised Aluminium - Black
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

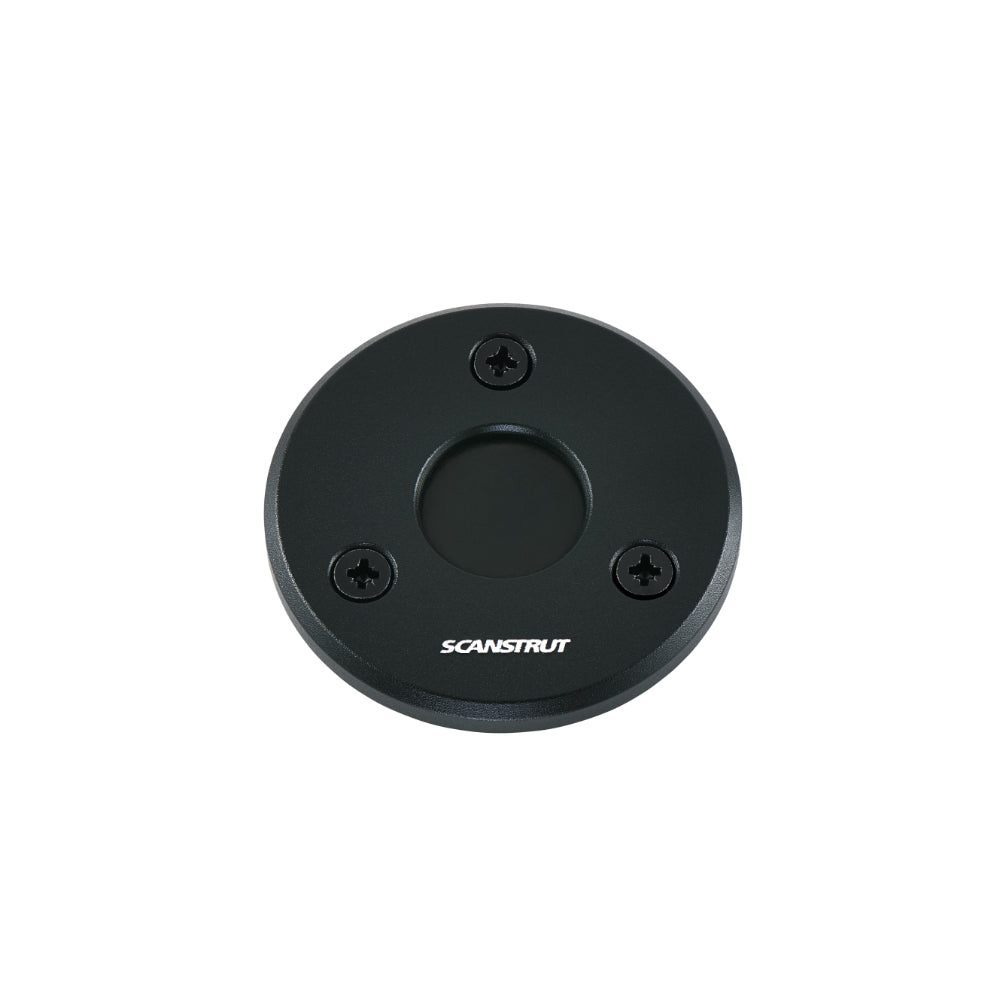

The DS-LP-21B-BLK is the low profile seal for a single thicker cable of 9-14mm, with a 21mm opening that lets a connector of up to 21mm pass straight through. The black anodised aluminium is UV-stable and hard-wearing, and the low profile design hides the seal below the surface, reducing mounting height by 68% compared with Scanstrut's standard DS21B seal for a clean, flush appearance.
A single hole saw cuts the pocket, then the seal drops in and captive nuts secure it for a fully watertight IP68 result, with no marine sealant to apply. Bungs for 9mm, 11mm and 13mm cables are supplied with a self-drill bung, keeping deck and rooftop installs simple and uncluttered.
PRODUCT DETAILS
- Ultra low-profile, flush-mounted design
- 100% waterproof, IP68 rated
- Marine-grade UV-stable materials
- Quick, sealant-free installation

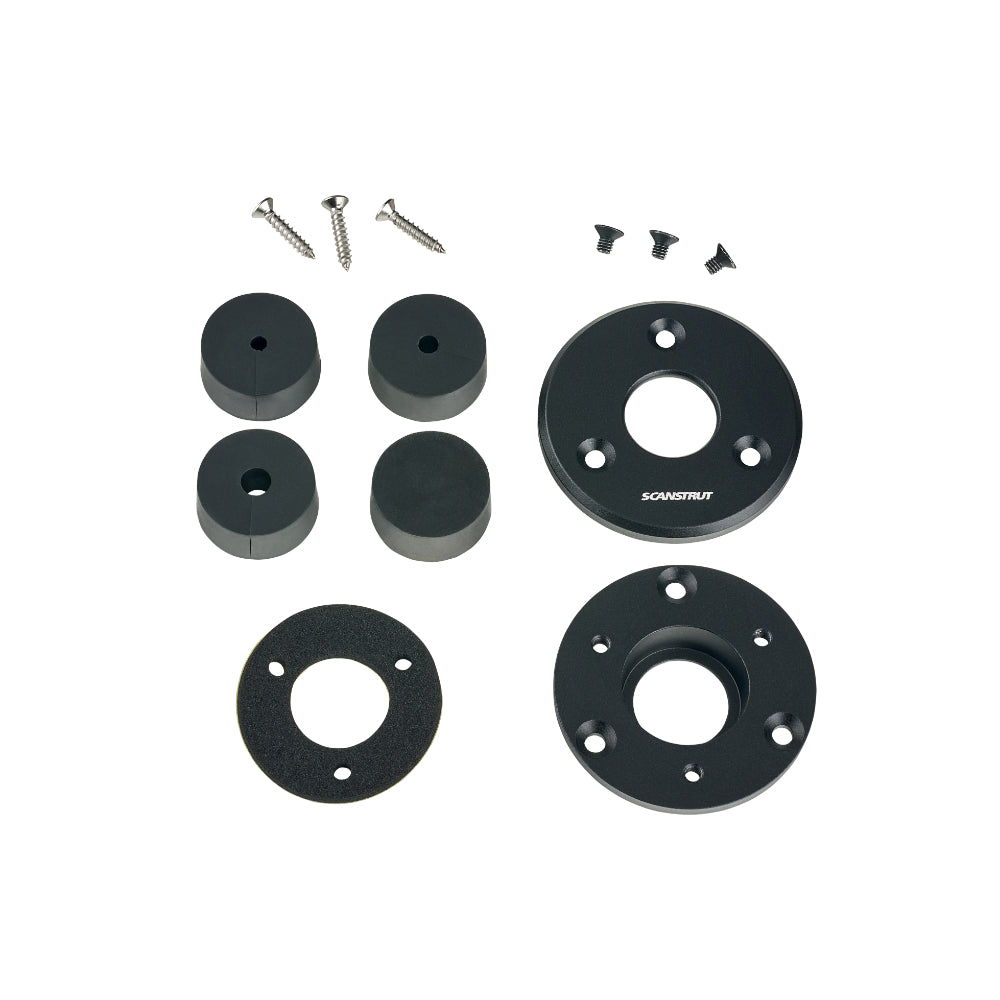

- Low-profile cable seal
- Fixing screws
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Type | Low-profile waterproof cable seal |
| Cable type | Single cable |
Cable
| Cable diameter range | 9-14 mm (0.35-0.55 in) |
Materials
| Finish | Black anodised aluminium |
Environment
| Waterproof rating | IP68 |
No downloads available for this product.
