Scanstrut
Scanstrut DS-LP-30-S Low Profile Cable Seal - 316 Stainless Steel
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The DS-LP-30-S is the largest single-cable low profile seal, built in 316 stainless steel and sealing a cable of 9-14mm, while its 30mm opening lets bulky connectors of up to 30mm pass straight through so pre-terminated leads do not need to be cut. The marine-grade stainless resists salt and UV, and the low profile design hides the seal below the surface, reducing mounting height by 68% compared with Scanstrut's standard DS30 seal for a sleek, premium finish.
Even at this size, a single hole saw cuts the pocket. The seal locates and captive nuts secure it for a robust, fully watertight IP68 feedthrough, with no sealant required. Bungs for 9mm, 11mm and 13mm cables and a self-drill bung are supplied.
PRODUCT DETAILS
- Ultra low-profile, flush-mounted design
- 100% waterproof, IP68 rated
- Marine-grade UV-stable materials
- Quick, sealant-free installation

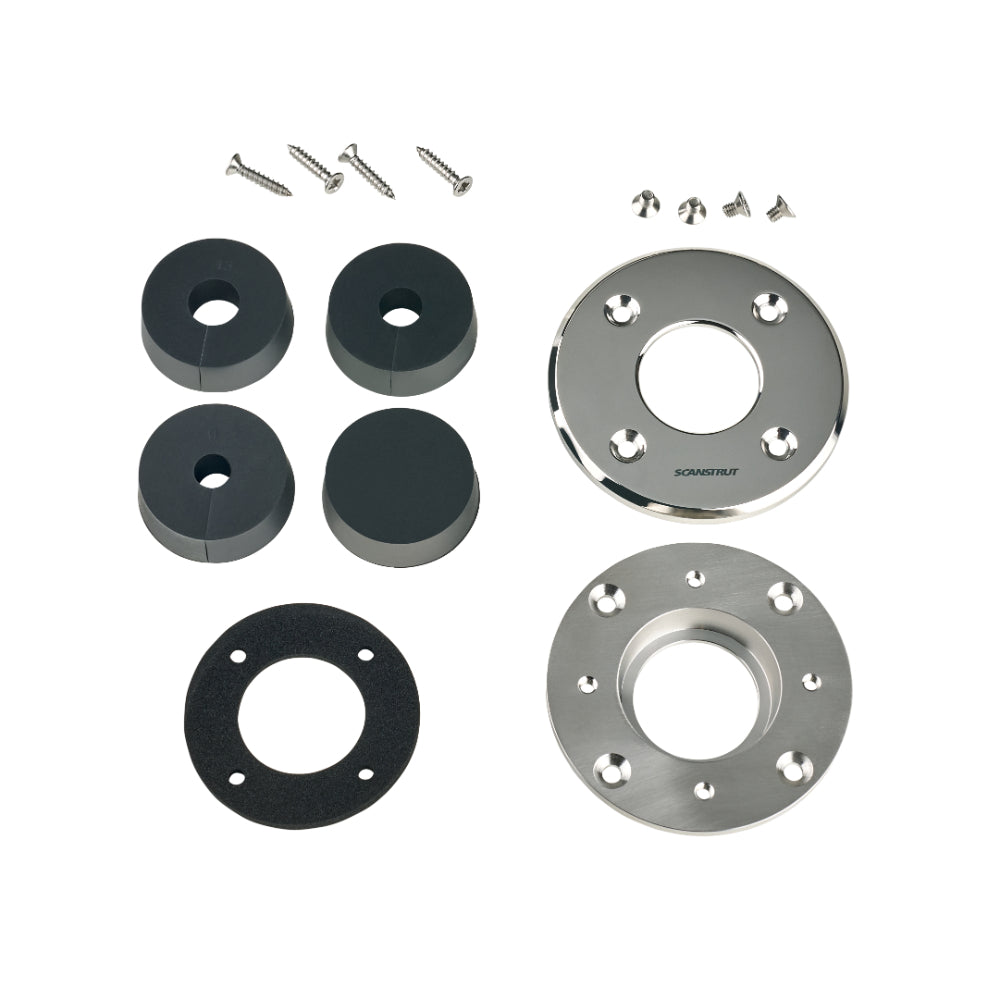

- Low-profile cable seal
- Fixing screws

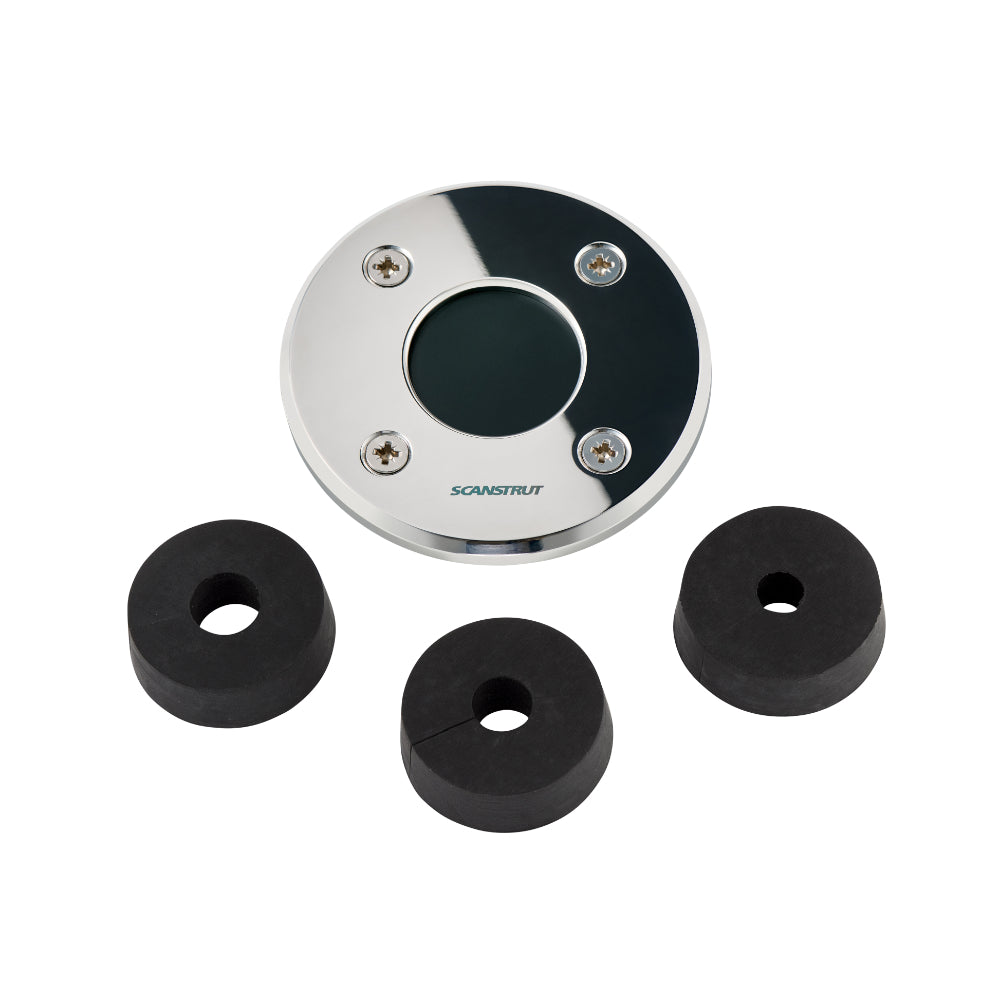

- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Type | Low-profile waterproof cable seal |
| Cable type | Single cable |
Cable
| Cable diameter range | 9-14 mm (0.35-0.55 in) |
Materials
| Finish | 316 stainless steel trim |
Environment
| Waterproof rating | IP68 |
