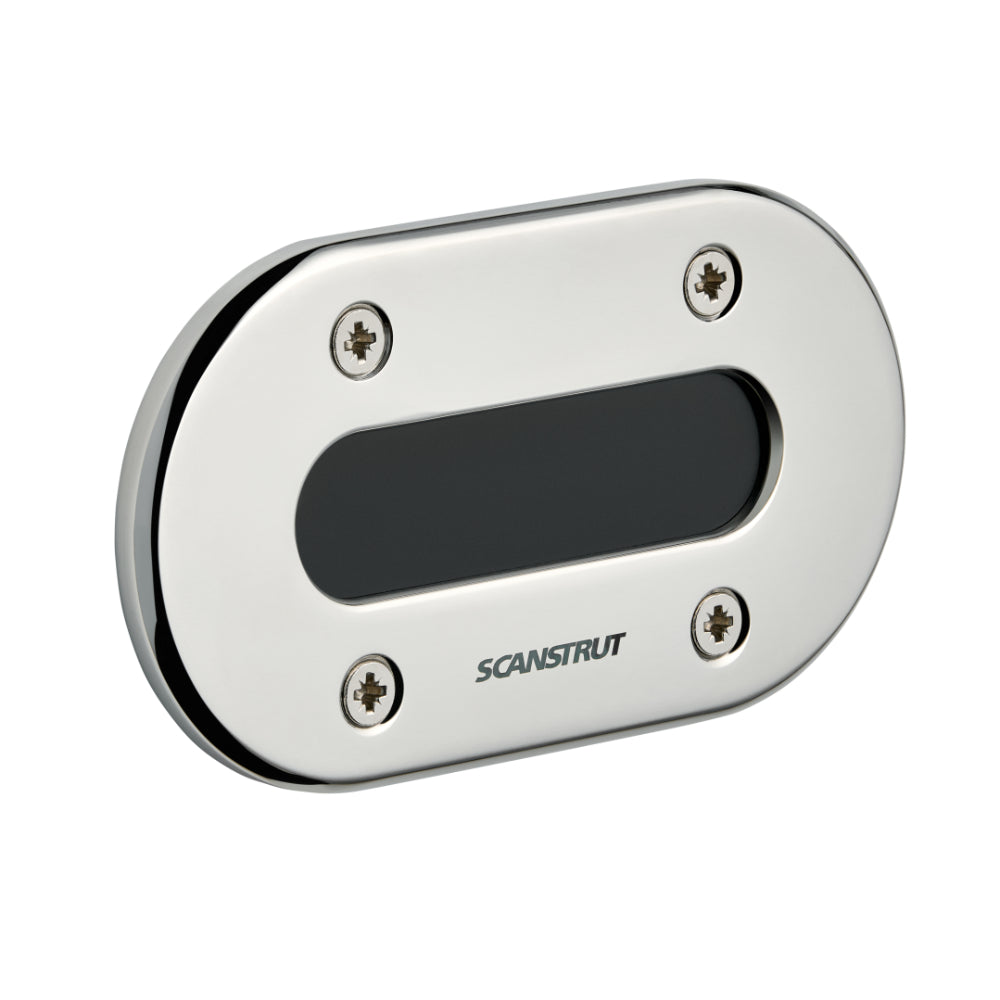

Scanstrut DS-LP-MULTI-S Low Profile Cable Seal - 316 Stainless Steel
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

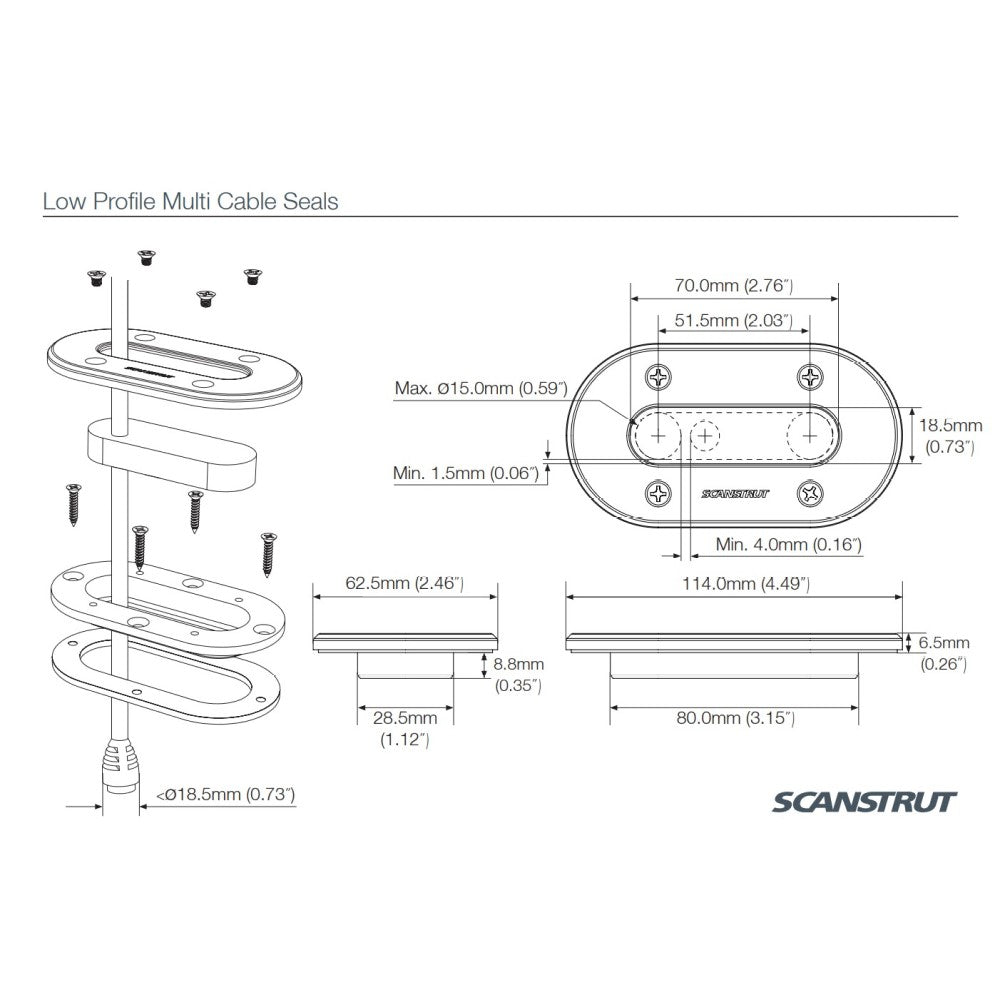

The DS-LP-MULTI-S routes a group of cables through a single fitting. It is supplied with one undrilled bung that you drill to suit your own cables, each up to 15mm in diameter, and connectors of up to 18.5mm can pass through, replacing a row of individual feedthroughs on busy installs. Built in 316 stainless steel, it stands up to salt and UV, while the low profile design tucks the seal below the surface and reduces mounting height by 71% compared with Scanstrut's standard multi seal for a premium, flush finish.

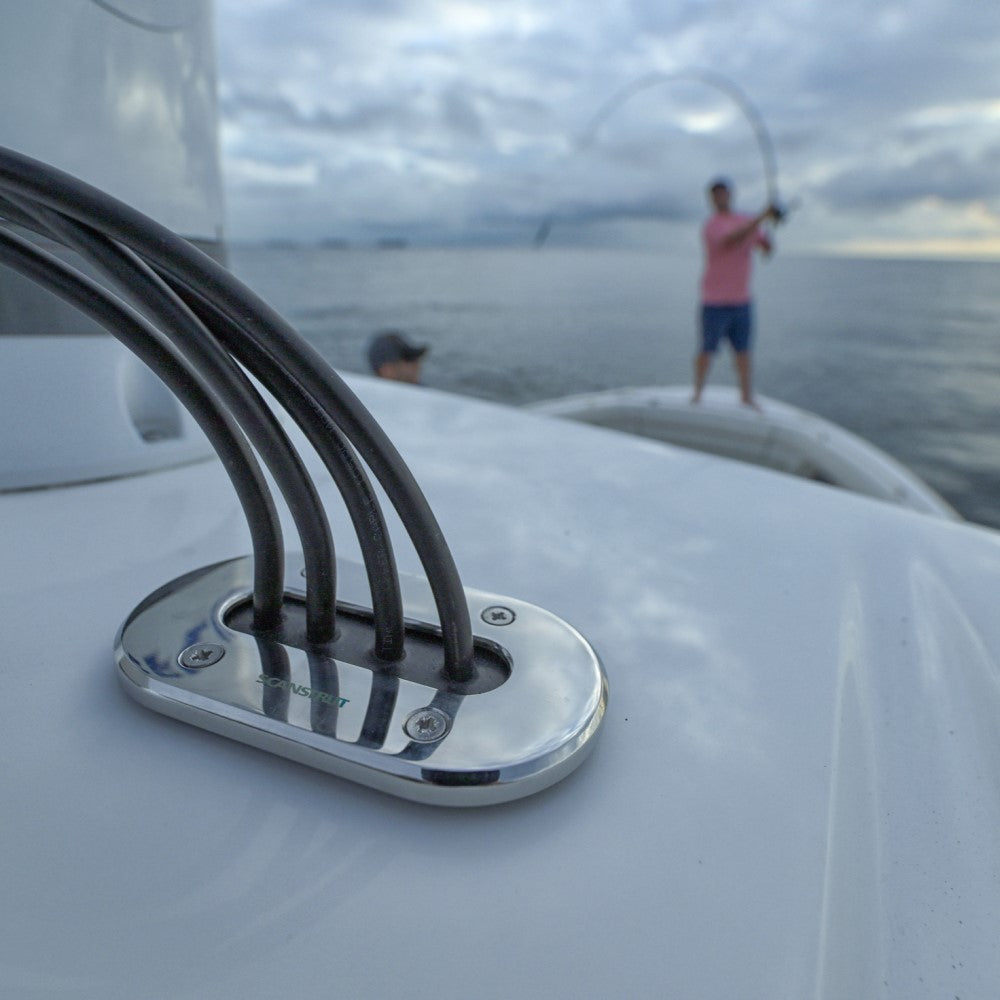

A single hole saw cuts the pocket, then the seal locates and captive nuts secure it for a dependable, fully watertight IP68 feedthrough, with no sealant required. Consolidating multiple cables into one stainless seal keeps polished installs clean and frees up valuable deck space.
PRODUCT DETAILS
- Ultra low-profile, flush-mounted design
- 100% waterproof, IP68 rated
- Marine-grade UV-stable materials
- Quick, sealant-free installation

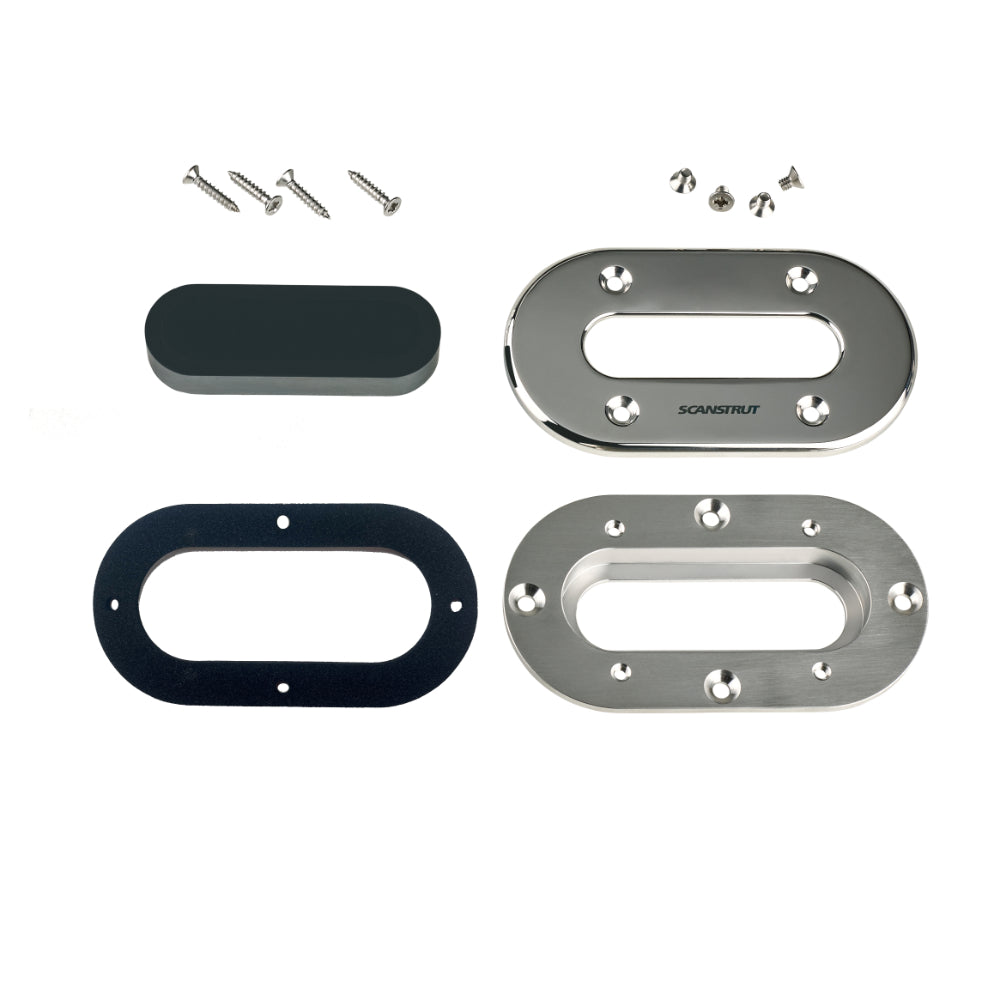

- Low-profile cable seal
- Fixing screws
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Type | Low-profile waterproof cable seal |
| Cable type | Multiple cables (undrilled bung) |
Cable
| Cable diameter range | Up to 15 mm per cable |
Materials
| Finish | 316 stainless steel trim |
Environment
| Waterproof rating | IP68 |
