Scanstrut

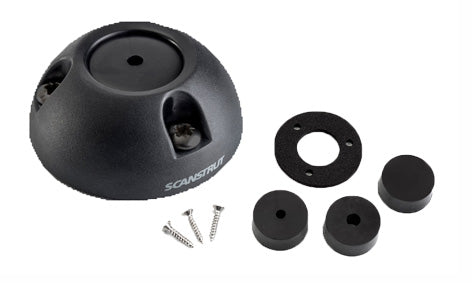

Scanstrut DS21A-P Small Cable Seal - Plastic - Black
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
This black DS21A Small seals the same single cable of 4-9mm as the grey model, with a 21mm opening that lets a connector of up to 21mm pass through, finishing runs like power feeds and radar cables to suit black hardtops, arches and helm trim.
The low-profile dome is moulded from tough black high-impact plastic, and the pre-drilled, blank and split bungs supplied let one seal cope with cable diameters across its 4-9mm range. Captive nuts keep assembly quick and repeatable.
You route the cable without removing its connector and apply no sealant, so a watertight IP68 entry for a single lead that blends with your black equipment goes in within minutes.
PRODUCT DETAILS
- Watertight cable seal for routing a single cable through a deck or panel
- Suits cable diameters from 4 to 9 mm (0.17-0.31 in)
- Black finish to blend with dark decks and panels
- 49 mm flange with a 45.7 mm cut-out
- Graduated bungs to match the exact cable size
- No messy sealant needed on the bungs
- Cable seal shell x1 (black)
- Base x1
- Gasket x1
- Sealing bungs x4
- No. 6 x 16 self-tapping screws x3
- M4 x 10 black bolts x3
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Cable type | Single cable |
| Cable diameter range | 4-9 mm (0.17-0.31 in) |
| Orientation | Vertical (deck / top entry) |
| Waterproof rating | Watertight seal |
Dimensions
| Outer flange diameter | 49 mm (1.93 in) |
| Bore / cable opening diameter | 21 mm (0.83 in) |
| Height | 20.5 mm (0.81 in) |
Fixing
| Cut-out diameter | 45.7 mm (1.8 in) |
| Fixings | 3 x No. 6 x 16 self-tapping screws and 3 x M4 x 10 bolts (supplied) |
| Pilot hole | 2.5 mm (3/32 in) soft material, 3 mm (1/8 in) hard material |
Materials
| Trim material | Plastic |
| Finish | Black |
| Sealing bungs | 4 x graduated bungs |
