Scanstrut DS21B-P Small Cable Seal - Plastic - Black
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The DS21B-P-BLK takes a single thicker cable of 9-14mm through a Small vertical entry point, with a 21mm opening that lets a connector of up to 21mm pass straight through. It is the fast, easy and 100% waterproof way to seal a heavier lead on deck, at the helm or through a bulkhead.
Moulded in black high-impact plastic with a low-profile dome, it stays discreet against darker surfaces while shrugging off knocks and UV. Captive nuts make assembly straightforward and give reliable repeat installations, and the supplied bung set suits cable diameters across the 9-14mm range without any sealant.
PRODUCT DETAILS
- Watertight cable seal for routing a single larger cable through a deck or panel
- Suits cable diameters from 9 to 14 mm (0.35-0.55 in)
- Black finish to blend with dark decks and panels
- 49 mm flange with a 45.7 mm cut-out
- Graduated bungs to match the exact cable size
- No messy sealant needed on the bungs

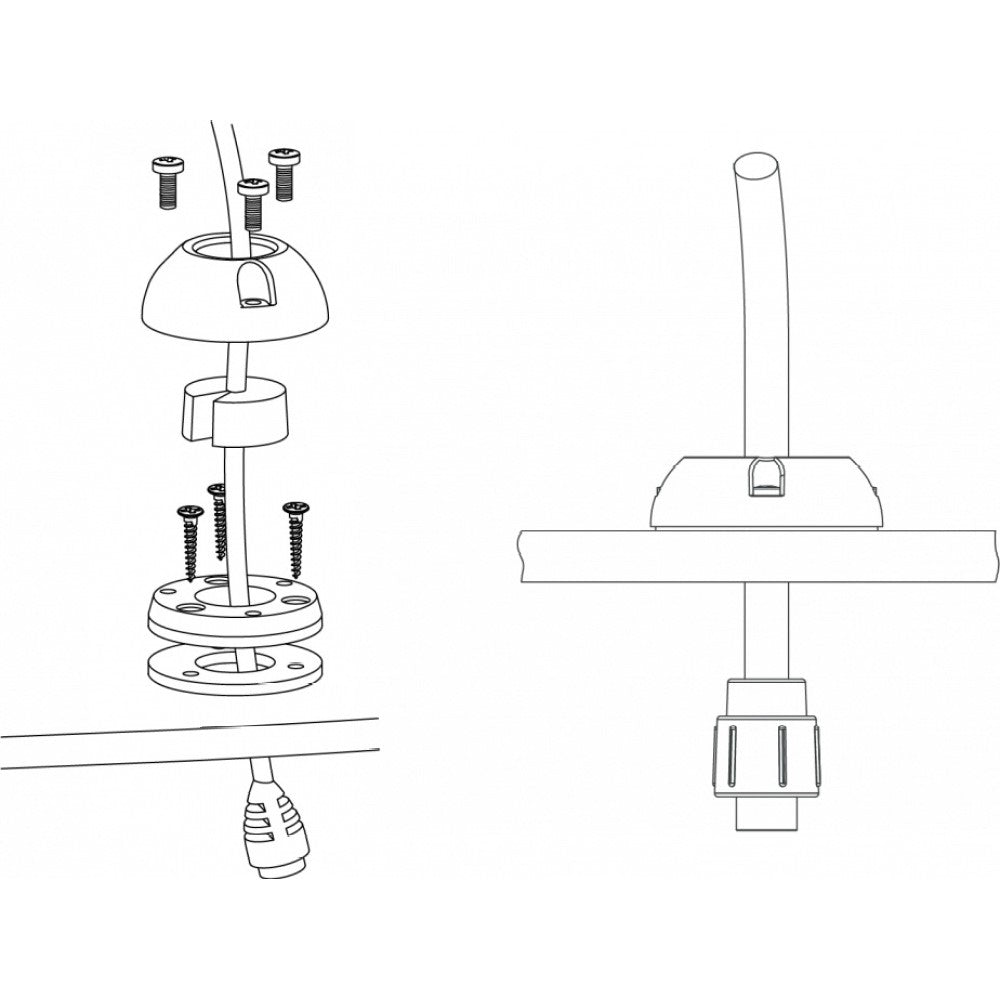

- Cable seal shell x1 (black)
- Base x1
- Gasket x1
- Sealing bungs x4
- No. 6 x 16 self-tapping screws x3
- M4 x 10 black bolts x3
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Cable type | Single cable |
| Cable diameter range | 9-14 mm (0.35-0.55 in) |
| Orientation | Vertical (deck / top entry) |
| Waterproof rating | Watertight seal |
Dimensions
| Outer flange diameter | 49 mm (1.93 in) |
| Bore / cable opening diameter | 21 mm (0.83 in) |
| Height | 20.5 mm (0.81 in) |
Fixing
| Cut-out diameter | 45.7 mm (1.8 in) |
| Fixings | 3 x No. 6 x 16 self-tapping screws and 3 x M4 x 10 bolts (supplied) |
| Pilot hole | 2.5 mm (3/32 in) soft material, 3 mm (1/8 in) hard material |
Materials
| Trim material | Plastic |
| Finish | Black |
| Sealing bungs | 4 x graduated bungs |
