Scanstrut DS30-P Medium Cable Seal - Plastic - Black
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The DS30-P-BLK is the Medium seal for a single cable of 9-14mm, with a 30mm opening that lets connectors of up to 30mm pass through. It is the practical choice when a chartplotter, radar or sounder cable still wears its connector and you want it through the deck in one pass, and the fast, easy and 100% waterproof option for heavier cabling.
Finished in black high-impact plastic, the low-profile dome sits cleanly against dark consoles and arches while resisting impact and UV. Captive nuts give quick, reliable assembly and stand up to being refitted, and the included bung set suits cables across the 9-14mm range. With nothing on the bungs to seal, the installation stays tidy.
PRODUCT DETAILS
- Watertight cable seal for routing a single large cable through a deck or panel
- Suits cable diameters from 9 to 14 mm (0.35-0.55 in)
- Black finish to blend with dark decks and panels
- 59 mm flange with a 56 mm cut-out
- Graduated bungs to match the exact cable size
- No messy sealant needed on the bungs

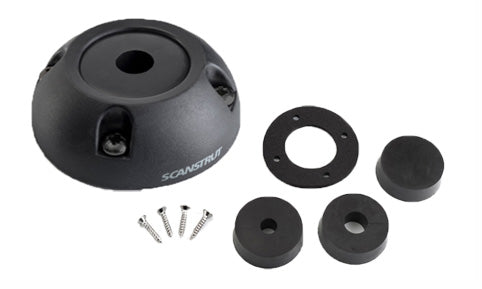

- Cable seal shell x1 (black)
- Base x1
- Gasket x1
- Sealing bungs x4
- No. 6 x 16 self-tapping screws x4
- M4 x 10 black bolt x1
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Cable type | Single cable |
| Cable diameter range | 9-14 mm (0.35-0.55 in) |
| Orientation | Vertical (deck / top entry) |
| Waterproof rating | Watertight seal |
Dimensions
| Outer flange diameter | 59 mm (2.32 in) |
| Bore / cable opening diameter | 30 mm (1.18 in) |
| Height | 20.5 mm (0.81 in) |
Fixing
| Cut-out diameter | 56 mm (2.2 in) |
| Fixings | 4 x No. 6 x 16 self-tapping screws and 1 x M4 x 10 bolt (supplied) |
| Pilot hole | 2.5 mm (3/32 in) soft material, 3 mm (1/8 in) hard material |
Materials
| Trim material | Plastic |
| Finish | Black |
| Sealing bungs | 4 x graduated bungs |
