Scanstrut TBH-4 Through Bulkhead Cable Seal 4 x 7-15mm

£32.38
Tax included. Shipping calculated at checkout.
TBH-4

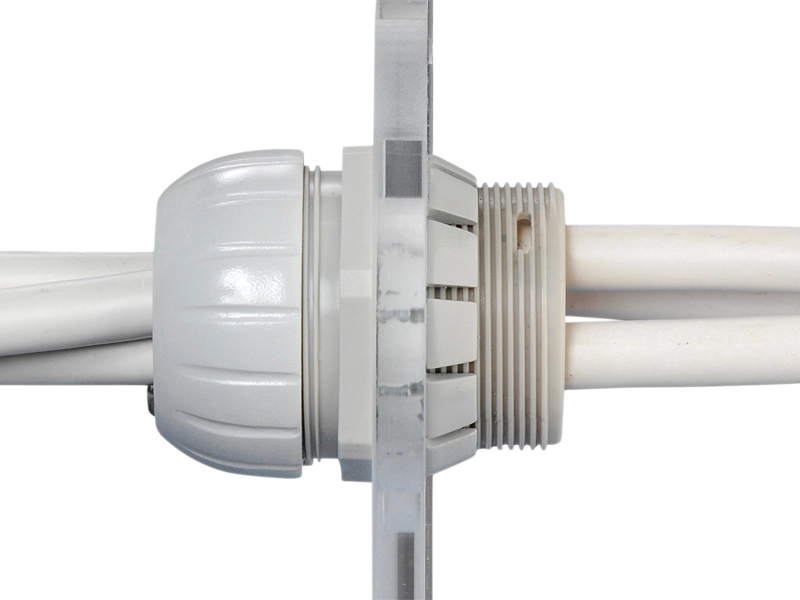

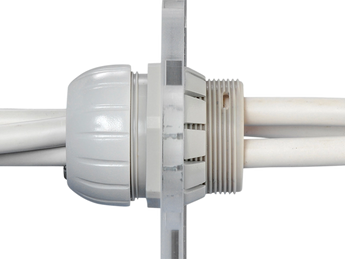

Scanstrut's smaller through-bulkhead cable seal, giving a secure watertight (IP67) entry for cables passing through a bulkhead or vertical panel rather than through a deck. It takes up to four cables of 7-15mm each and creates a clean professional pass-through with no messy sealant, using UV-stable, hard-wearing materials built to last in the marine environment.
✓ Available for collection or delivery in ~2 days

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

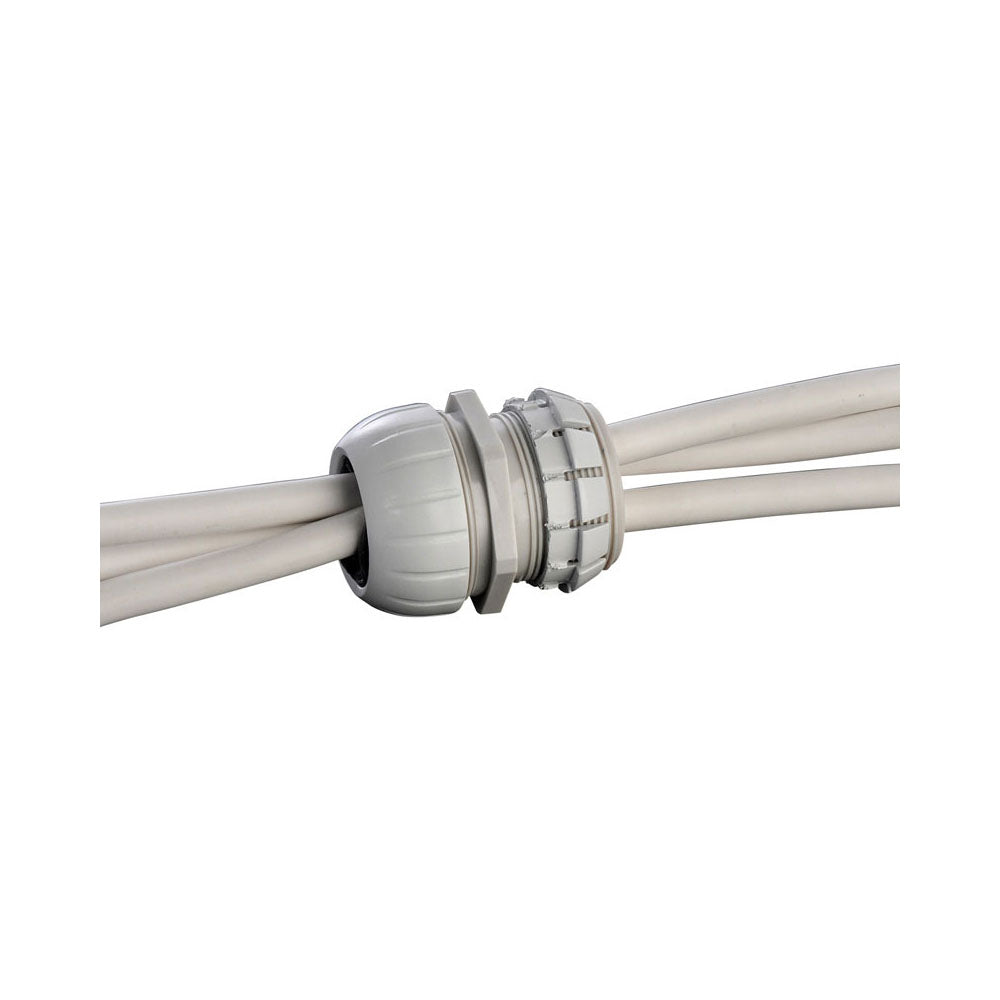

The TBH-4 is Scanstrut's compact through-bulkhead seal, made for cables that need to cross a vertical wall, panel or bulkhead while staying fully protected from water. It accommodates up to four cables of 7-15mm each, making it well suited to smaller helm, console and below-deck wiring runs.

The seal achieves a watertight IP67 entry without any sealant, so the pass-through stays tidy and cables can be serviced later without mess. Built from UV-stable, hard-wearing materials, it holds up to sunlight and salt exposure for a long, reliable service life.

PRODUCT DETAILS

  • Through-bulkhead cable seal for passing a cable loom through a panel or bulkhead
  • Routes up to 4 cables from 7 to 15 mm (0.28-0.6 in) diameter
  • Fits a 60 mm (2 3/8 in) hole in bulkheads 10 to 35 mm thick
  • Two strain-relief inserts cover Ø10-20, Ø20-30 and Ø30-38 mm looms
  • Twist-tighten design for a secure, watertight pass-through
  • No tools needed beyond a spanner and hole saw
  • Through-bulkhead seal body and locknut
  • Liner seal x1
  • Strain-relief insert 1 x1
  • Strain-relief insert 2 x1
  • Installation instructions

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

General

Cable typeThrough-bulkhead cable seal, up to 4 cables
Cable diameter range7-15 mm (0.28-0.6 in) per cable
Cable loom compression rangeØ30-38, Ø20-30 and Ø10-20 mm via strain-relief inserts
OrientationThrough-bulkhead (horizontal pass-through)

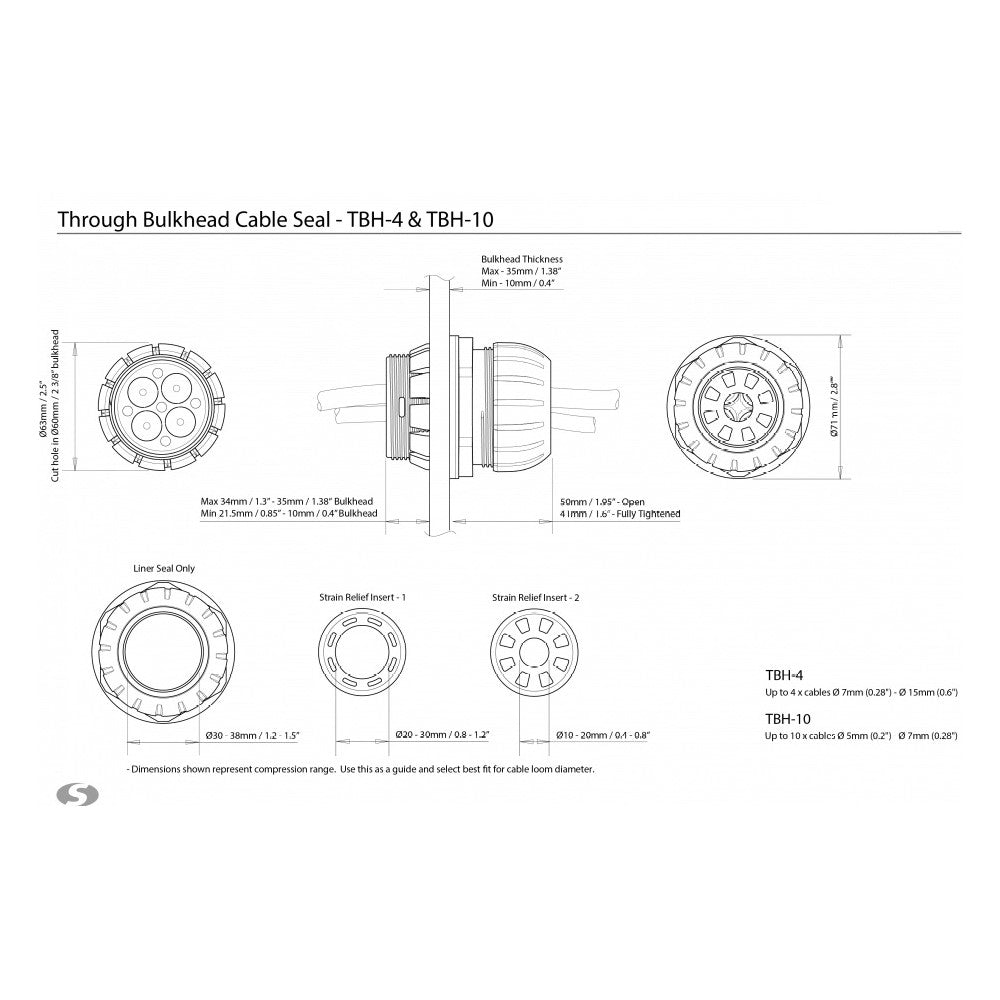

Dimensions

Body diameter63 mm (2.5 in)
Flange diameter71 mm (2.8 in)
Length50 mm (1.95 in) open, 41 mm (1.6 in) fully tightened

Fixing

Cut-out hole60 mm (2 3/8 in) diameter
Bulkhead thickness10-35 mm (0.4-1.38 in)

Materials

Strain-relief insertsTwo interchangeable inserts plus liner seal
