Simrad Multifunction Displays
Simrad Multifunction Displays
Simrad delivers powerboat-focused navigation, radar and sonar built for serious offshore use. This is the Simrad multifunction displays range: the touchscreen chartplotters that anchor a modern helm.
Browse the full Simrad range or Multifunction Displays from every brand.
Extended warranty, up to 5 years. Manufacturer-backed cover on eligible B&G, Simrad, Lowrance and Navico equipment, from an authorised UK dealer.
Find out more
Choosing between Simrad's display tiers

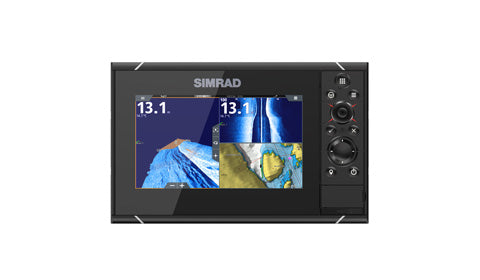

Simrad's multifunction displays span from smaller helm-mount units to full networked systems feeding multiple stations, and the practical choice usually comes down to how the boat is used rather than screen size alone. Touchscreen-only displays work well at a sheltered helm but can be harder to operate reliably in spray or with gloves, which is where models with a physical keypad or rotary dial alongside the touchscreen tend to suit open helms and offshore use better.

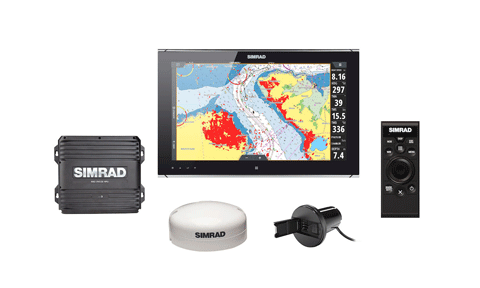

Sonar capability also varies by model: some displays include a sonar module built in, while others need an external black box to add side and down scanning. Check this before assuming a given display will show forward or side sonar out of the box. Networked systems share radar, sonar and chart data over Ethernet, with NMEA 2000 handling the lower-bandwidth instrument and engine data, so a multi-station boat needs both networks planned, not just power run to each screen.
Ask us if you need help matching a display to radar or sonar hardware already on board.
