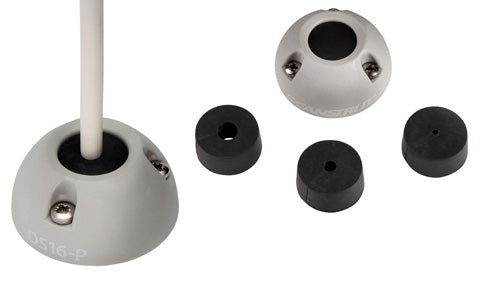

Scanstrut DS16-P grey mini cable seal fitted over a white cable, with three black rubber bungs beside itScanstrut DS16-P grey mini cable seal fitted over a white cable, with three black rubber bungs beside it

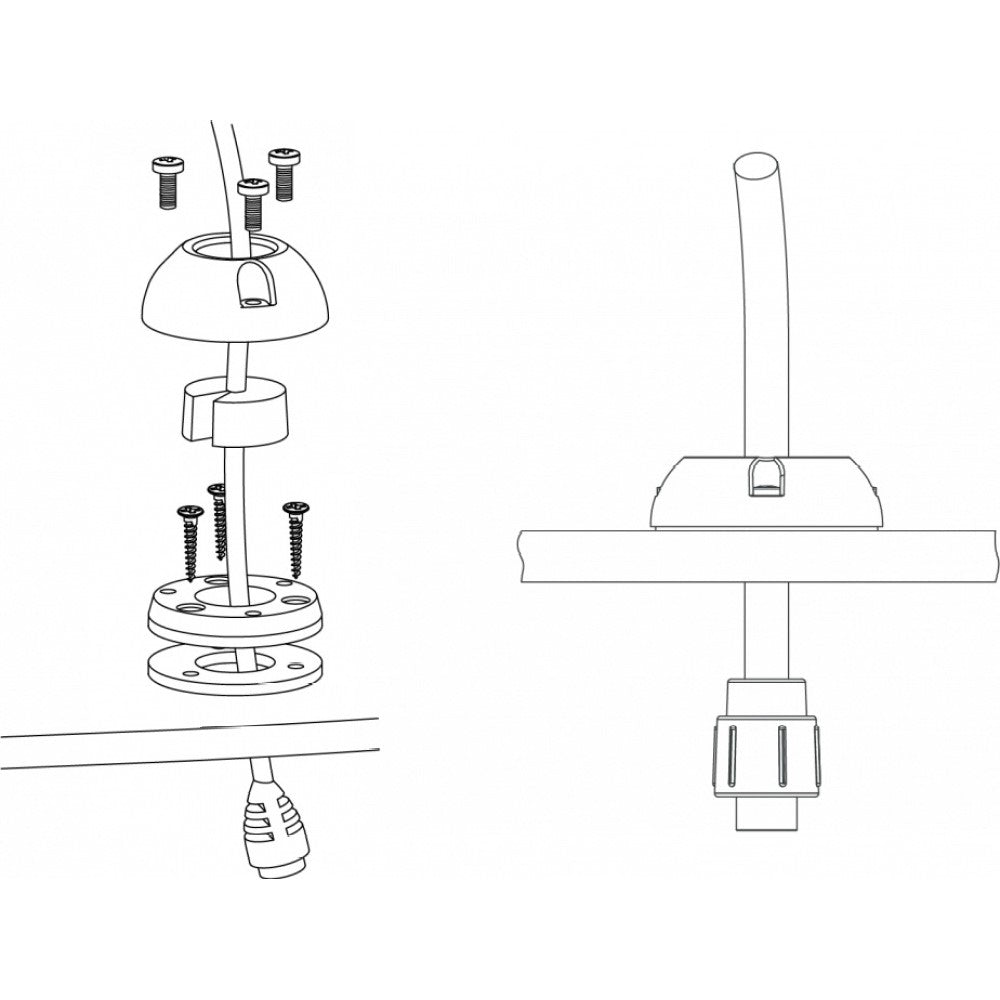

Scanstrut DS16-P mini cable seal line drawing showing the exploded fixings and deck fitting through a panelScanstrut DS16-P mini cable seal line drawing showing the exploded fixings and deck fitting through a panel
Scanstrut DS16-P grey mini cable seal fitted over a white cable, with three black rubber bungs beside it
Scanstrut DS16-P mini cable seal line drawing showing the exploded fixings and deck fitting through a panel

Scanstrut

Scanstrut DS16-P Mini Cable Seal - Plastic - Grey

£18.76
Tax included. Shipping calculated at checkout.
DS16-P
The Scanstrut DS16 Mini is a vertical entry cable seal for a single cable of 2-8mm, with a 16mm opening that passes connectors of up to 16mm. Moulded in grey high-impact plastic, it carries instrument, network and display leads through a deck or bulkhead and seals the entry to IP68 watertight. You install it without removing the connector, and no sealant is needed.
✓ Available for collection or delivery in ~2 days

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Scanstrut DS16 Mini steps up from the Micro to seal a single cable of 2-8mm, and its 16mm opening lets connectors of up to 16mm pass through, covering much of the everyday marine electronics wiring such as NMEA network drops, transducer leads and display cables. It is the world's number one choice for getting these runs below decks neatly.

The grey low-profile dome is moulded in ultra-strong impact-resistant plastic, and the pre-drilled, blank and split bungs included let a single seal adapt to cable diameters across its 2-8mm range. Captive nuts give fast, repeatable assembly.

Crucially you fit it without removing the cable connector and apply no sealant to the bungs, so a reliable IP68 waterproof entry goes in quickly and cleanly.

PRODUCT DETAILS

  • Watertight cable seal for routing a single cable through a deck or panel
  • Suits cable diameters from 2 to 8 mm (0.08-0.31 in)
  • 39 mm flange with a 36.5 mm cut-out
  • Graduated bungs to match the exact cable size
  • No messy sealant needed on the bungs
  • Supplied with stainless fixings and gasket
  • Cable seal shell x1
  • Base x1
  • Gasket x1
  • Sealing bungs x4
  • No. 4 x 16 self-tapping screws x3
  • M3 x 10 bolts x3
  • Installation instructions

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

General

Cable typeSingle cable
Cable diameter range2-8 mm (0.08-0.31 in)
OrientationVertical (deck / top entry)
Waterproof ratingWatertight seal

Dimensions

Outer flange diameter39 mm (1.53 in)
Bore / cable opening diameter16 mm (0.63 in)
Height19 mm (0.75 in)

Fixing

Cut-out diameter36.5 mm (1.44 in)
Fixings3 x No. 4 x 16 self-tapping screws and 3 x M3 x 10 bolts (supplied)
Pilot hole2 mm (5/64 in) soft material, 2.5 mm (3/32 in) hard material

Materials

Trim materialPlastic
Sealing bungs4 x graduated bungs

No videos available for this product.

Can this cable seal be installed below the waterline?
No, these seals are designed to be installed above the waterline.
What's the best way to drill a blank bung?
Before drilling holes, freeze the blank seal in a freezer, this makes it very easy to accurately and neatly drill the hole. For best fit around cables drill a hole Ø1-2mm larger than the cable diameter. When drilling into a frozen blank seal this hole will look far too big but when the seal defrosts, it will be a good tight fit.
