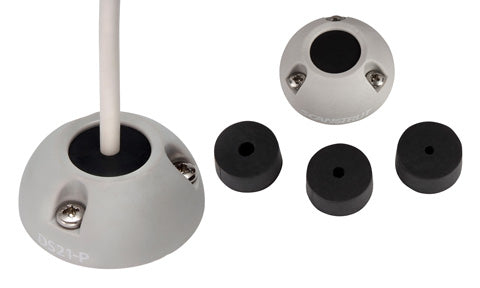

Scanstrut DS21B-P grey plastic cable seal fitted with white cable, plus three black rubber insertsScanstrut DS21B-P grey plastic cable seal fitted with white cable, plus three black rubber inserts

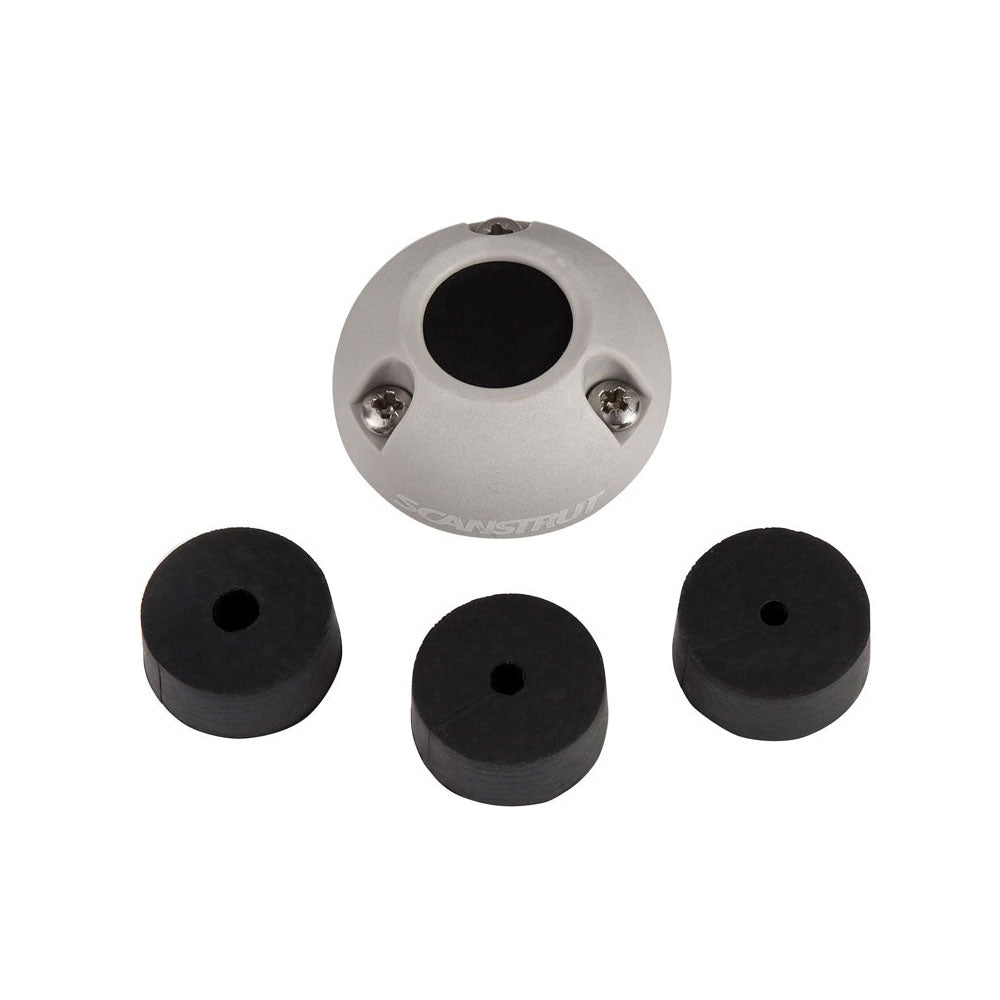

Scanstrut DS21B-P small grey cable seal dome with three black rubber grommets in front of itScanstrut DS21B-P small grey cable seal dome with three black rubber grommets in front of it

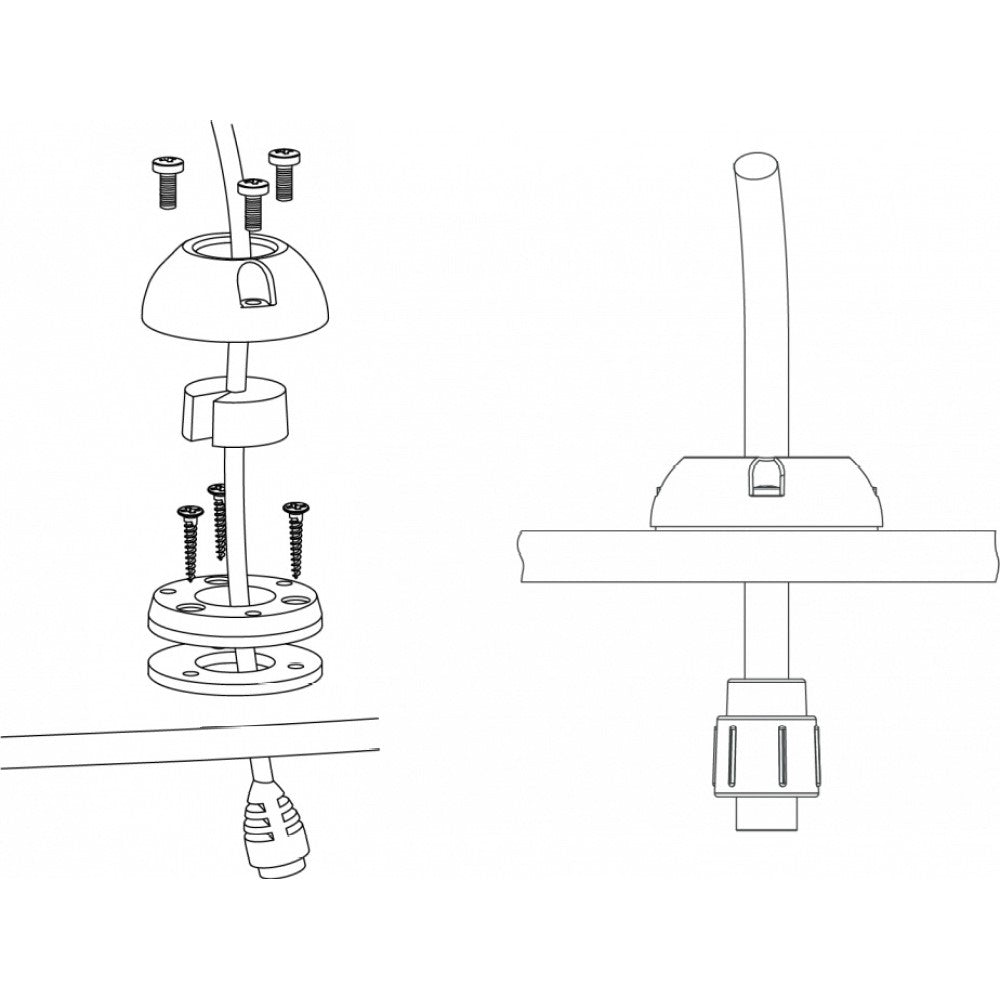

Scanstrut DS21B-P cable seal exploded line drawing showing dome, grommet, base and screws through a deckScanstrut DS21B-P cable seal exploded line drawing showing dome, grommet, base and screws through a deck
Scanstrut DS21B-P grey plastic cable seal fitted with white cable, plus three black rubber inserts
Scanstrut DS21B-P small grey cable seal dome with three black rubber grommets in front of it
Scanstrut DS21B-P cable seal exploded line drawing showing dome, grommet, base and screws through a deck

Scanstrut

Scanstrut DS21B-P Small Cable Seal - Plastic - Grey

£21.74
Tax included. Shipping calculated at checkout.
DS21B-P
The Scanstrut DS21B Small is a vertical entry cable seal for a single thicker cable of 9-14mm, with a 21mm opening that passes connectors of up to 21mm. Moulded in grey high-impact plastic, it seals the entry through a deck or bulkhead to IP68 watertight. You install it without removing the connector, and no sealant is needed.
✓ Available for collection or delivery in ~2 days

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Scanstrut DS21B Small shares the 21mm opening of the DS21A but is fitted with bungs for a single thicker cable of 9-14mm, while connectors of up to 21mm still pass through. It is ideal where a heavier power, radar or multi-core lead needs to be brought below decks without cutting off its plug.

The grey low-profile dome is ultra-strong and impact-resistant, and the pre-drilled, blank and split bungs supplied let the seal suit cable diameters across its 9-14mm range. Captive nuts make assembly fast and easy to repeat.

The cable is routed without removing its connector and with no sealant on the bungs, so a single neat IP68 waterproof entry is achieved quickly.

PRODUCT DETAILS

  • Watertight cable seal for routing a single larger cable through a deck or panel
  • Suits cable diameters from 9 to 14 mm (0.35-0.55 in)
  • 49 mm flange with a 45.7 mm cut-out
  • Graduated bungs to match the exact cable size
  • No messy sealant needed on the bungs
  • Supplied with stainless fixings and gasket
  • Cable seal shell x1
  • Base x1
  • Gasket x1
  • Sealing bungs x4
  • No. 6 x 16 self-tapping screws x3
  • M4 x 10 bolts x3
  • Installation instructions

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

General

Cable typeSingle cable
Cable diameter range9-14 mm (0.35-0.55 in)
OrientationVertical (deck / top entry)
Waterproof ratingWatertight seal

Dimensions

Outer flange diameter49 mm (1.93 in)
Bore / cable opening diameter21 mm (0.83 in)
Height20.5 mm (0.81 in)

Fixing

Cut-out diameter45.7 mm (1.8 in)
Fixings3 x No. 6 x 16 self-tapping screws and 3 x M4 x 10 bolts (supplied)
Pilot hole2.5 mm (3/32 in) soft material, 3 mm (1/8 in) hard material

Materials

Trim materialPlastic
Sealing bungs4 x graduated bungs

No videos available for this product.

Can this cable seal be installed below the waterline?
No, these seals are designed to be installed above the waterline.
What's the best way to drill a blank bung?
Before drilling holes, freeze the blank seal in a freezer, this makes it very easy to accurately and neatly drill the hole. For best fit around cables drill a hole Ø1-2mm larger than the cable diameter. When drilling into a frozen blank seal this hole will look far too big but when the seal defrosts, it will be a good tight fit.
