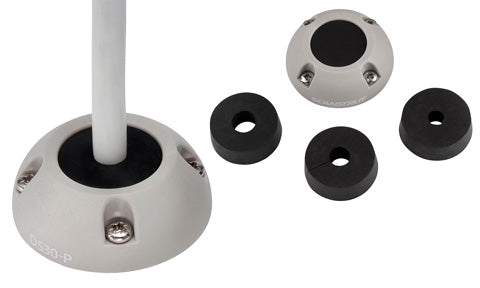

Scanstrut DS30-P grey plastic medium cable seal with a white cable through it, plus four black rubber insertsScanstrut DS30-P grey plastic medium cable seal with a white cable through it, plus four black rubber inserts

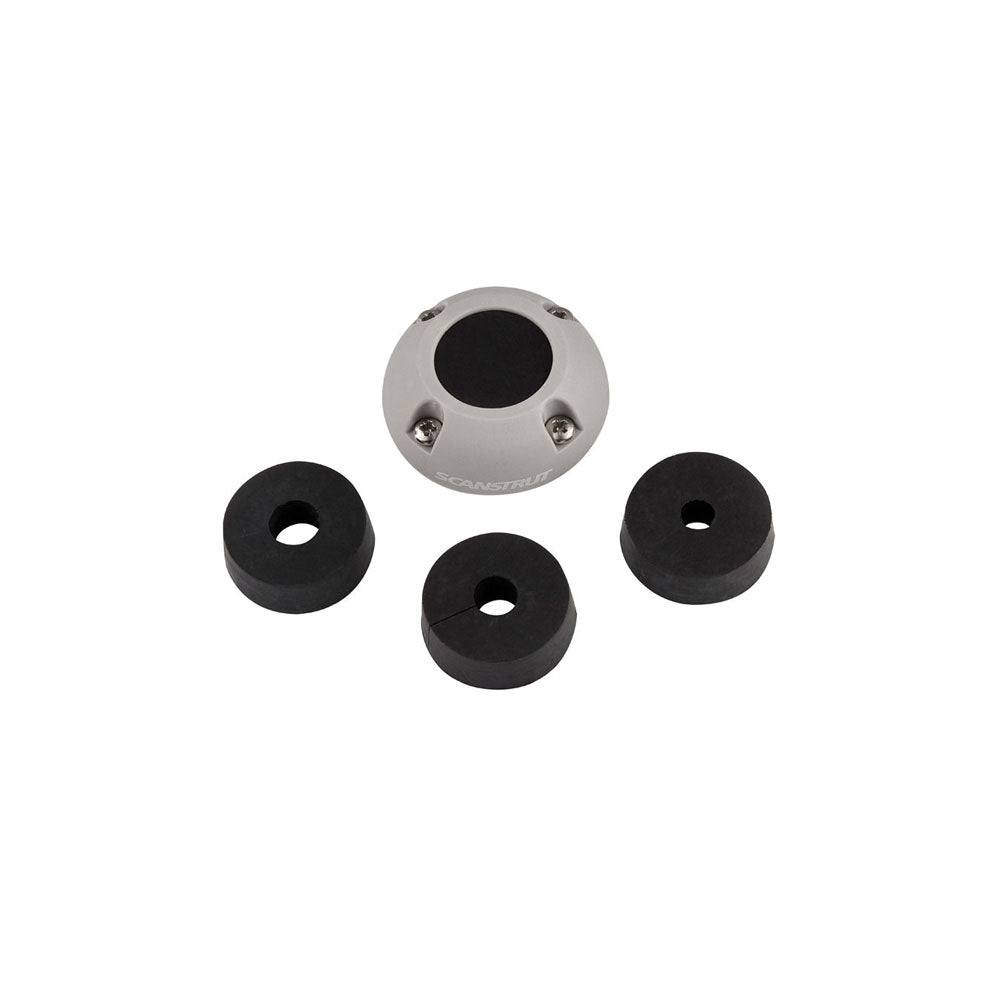

Scanstrut DS30-P medium grey cable seal dome with four black rubber inserts laid out, on white backgroundScanstrut DS30-P medium grey cable seal dome with four black rubber inserts laid out, on white background

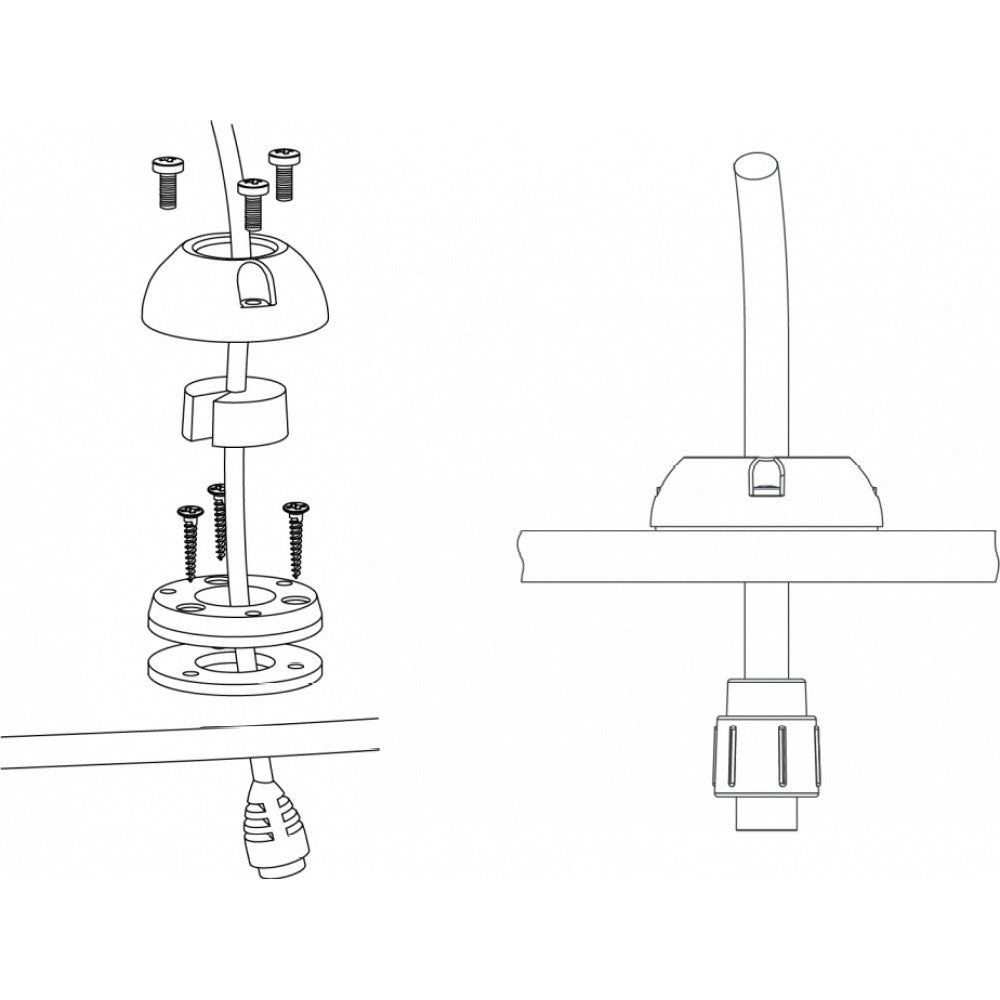

Scanstrut DS30-P cable seal exploded line drawing showing screws, dome, gasket and fitting through a deck panelScanstrut DS30-P cable seal exploded line drawing showing screws, dome, gasket and fitting through a deck panel
Scanstrut DS30-P grey plastic medium cable seal with a white cable through it, plus four black rubber inserts
Scanstrut DS30-P medium grey cable seal dome with four black rubber inserts laid out, on white background
Scanstrut DS30-P cable seal exploded line drawing showing screws, dome, gasket and fitting through a deck panel

Scanstrut

Scanstrut DS30-P Medium Cable Seal - Plastic - Grey

£24.37
Tax included. Shipping calculated at checkout.
DS30-P
The DS30-P is the Medium vertical entry cable seal in grey high-impact plastic, sealing a single cable of 9-14mm with a 30mm opening that passes connectors of up to 30mm. It gives an IP68 watertight finish through a deck or bulkhead and fits without removing the connector. Pre-drilled, blank and split bungs are included, with no messy sealant.
✓ Available for collection or delivery in ~2 days

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The DS30-P steps up to the Medium size, sealing a single cable of 9-14mm while its 30mm opening lets pre-fitted connectors of up to 30mm pass through, so larger plotter, radar and instrument runs go through a single vertical entry without being cut. It is the fast, easy and 100% waterproof way to bring heavier cabling below.

Moulded in grey high-impact plastic with a low-profile, impact-resistant dome, it blends with light decks and consoles while standing up to knocks and sun. Captive nuts make for quick, repeatable assembly, and the supplied pre-drilled, blank and split bungs adapt the seal to cable diameters across its 9-14mm range. Sealant stays in the locker.

PRODUCT DETAILS

  • Watertight cable seal for routing a single large cable through a deck or panel
  • Suits cable diameters from 9 to 14 mm (0.35-0.55 in)
  • 59 mm flange with a 56 mm cut-out
  • Graduated bungs to match the exact cable size
  • No messy sealant needed on the bungs
  • Supplied with stainless fixings and gasket
  • Cable seal shell x1
  • Base x1
  • Gasket x1
  • Sealing bungs x4
  • No. 6 x 16 self-tapping screws x4
  • M4 x 10 bolt x1
  • Installation instructions

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

General

Cable typeSingle cable
Cable diameter range9-14 mm (0.35-0.55 in)
OrientationVertical (deck / top entry)
Waterproof ratingWatertight seal

Dimensions

Outer flange diameter59 mm (2.32 in)
Bore / cable opening diameter30 mm (1.18 in)
Height20.5 mm (0.81 in)

Fixing

Cut-out diameter56 mm (2.2 in)
Fixings4 x No. 6 x 16 self-tapping screws and 1 x M4 x 10 bolt (supplied)
Pilot hole2.5 mm (3/32 in) soft material, 3 mm (1/8 in) hard material

Materials

Trim materialPlastic
Sealing bungs4 x graduated bungs

No videos available for this product.

Can this cable seal be installed below the waterline?
No, these seals are designed to be installed above the waterline.
What's the best way to drill a blank bung?
Before drilling holes, freeze the blank seal in a freezer, this makes it very easy to accurately and neatly drill the hole. For best fit around cables drill a hole Ø1-2mm larger than the cable diameter. When drilling into a frozen blank seal this hole will look far too big but when the seal defrosts, it will be a good tight fit.
