Scanstrut DS30-S Medium Cable Seal - Stainless Steel
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

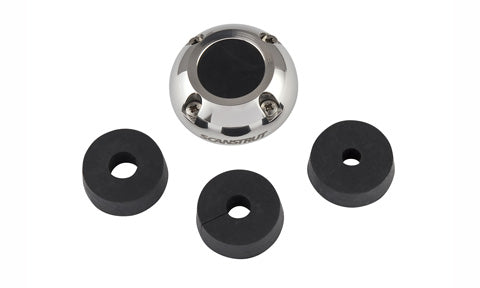

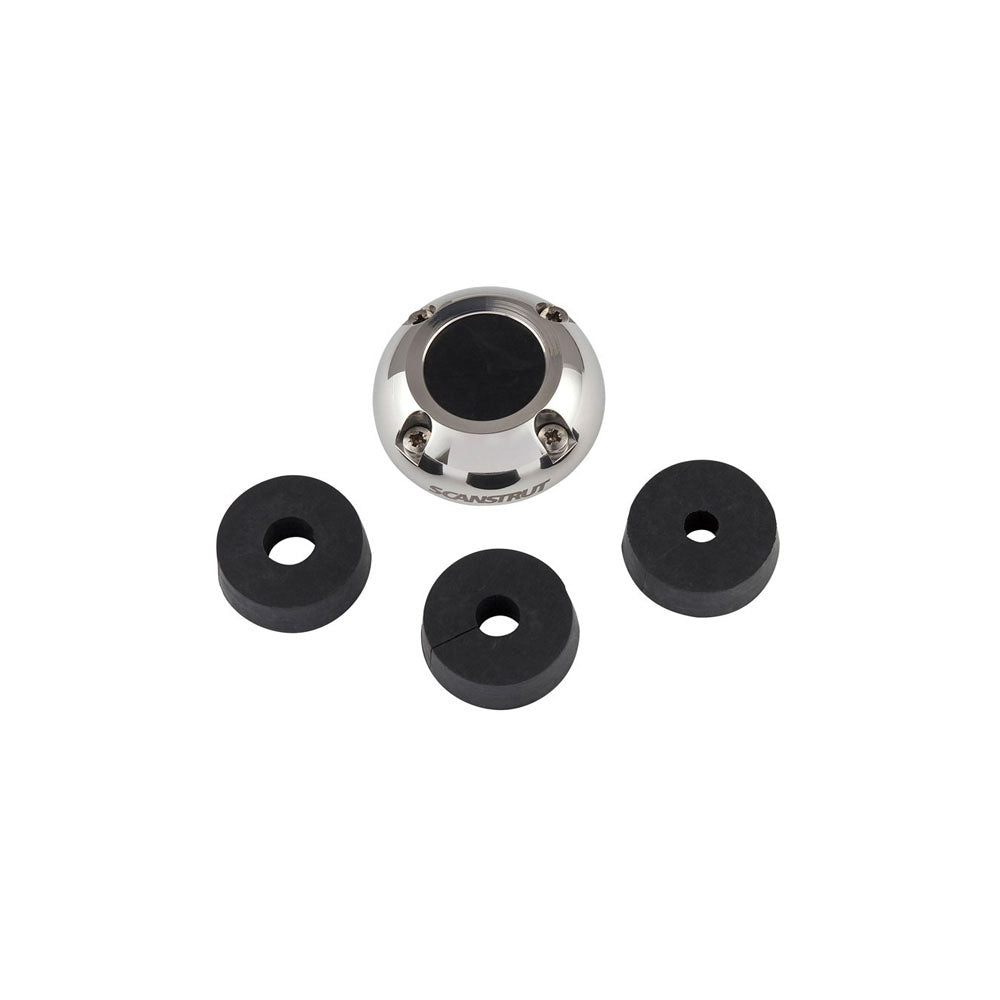

The DS30-S is the Medium seal rendered in premium 316 stainless steel, sealing a single cable of 9-14mm while its 30mm opening lets connectors of up to 30mm pass through, where the entry point is on show or fully exposed to the elements. It is the fast, easy and 100% waterproof way to land larger runs below decks.
The marine-grade 316 housing resists corrosion and presents a polished face that suits radar arches, hardtops and helm stations dressed in stainless. Captive nuts keep assembly simple and repeatable, while the included pre-drilled, blank and split bungs match the seal to cables across its 9-14mm range. No sealant touches the bungs, so the finish stays clean and serviceable.
PRODUCT DETAILS
- Watertight cable seal for routing a single large cable through a deck or panel
- 316 stainless steel trim for a premium, corrosion-resistant finish
- Suits cable diameters from 9 to 14 mm (0.35-0.55 in)
- 59 mm flange with a 56 mm cut-out
- Graduated bungs to match the exact cable size
- No messy sealant needed on the bungs

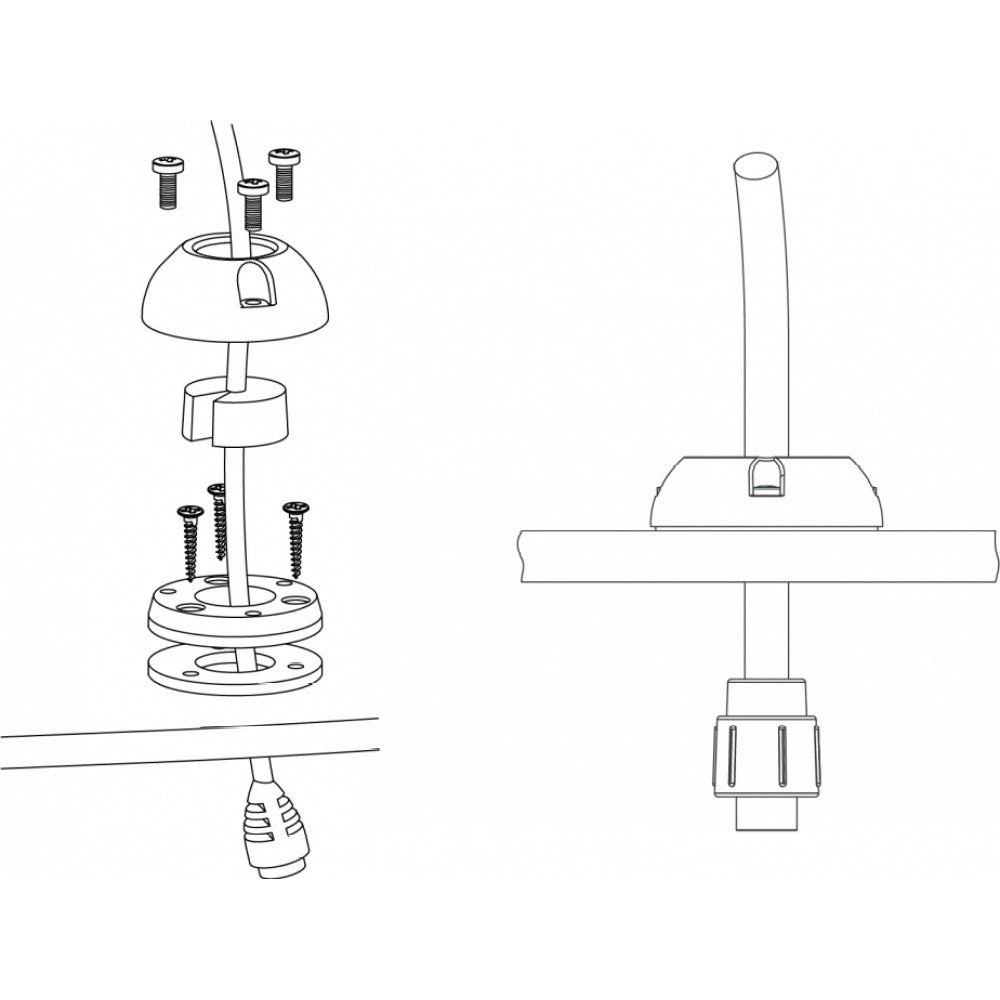

- Cable seal shell x1 (316 stainless steel)
- Base x1
- Gasket x1
- Sealing bungs x4
- No. 6 x 16 self-tapping screws x4
- M4 x 10 bolt x1
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Cable type | Single cable |
| Cable diameter range | 9-14 mm (0.35-0.55 in) |
| Orientation | Vertical (deck / top entry) |
| Waterproof rating | Watertight seal |
Dimensions
| Outer flange diameter | 59 mm (2.32 in) |
| Bore / cable opening diameter | 30 mm (1.18 in) |
| Height | 20.5 mm (0.81 in) |
Fixing
| Cut-out diameter | 56 mm (2.2 in) |
| Fixings | 4 x No. 6 x 16 self-tapping screws and 1 x M4 x 10 bolt (supplied) |
| Pilot hole | 2.5 mm (3/32 in) soft material, 3 mm (1/8 in) hard material |
Materials
| Trim material | 316 stainless steel |
| Sealing bungs | 4 x graduated bungs |
