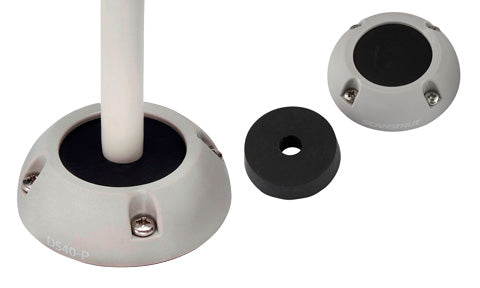

Scanstrut DS40-P large grey plastic cable seal on a deck with white cable through it, plus spare rubber grommet

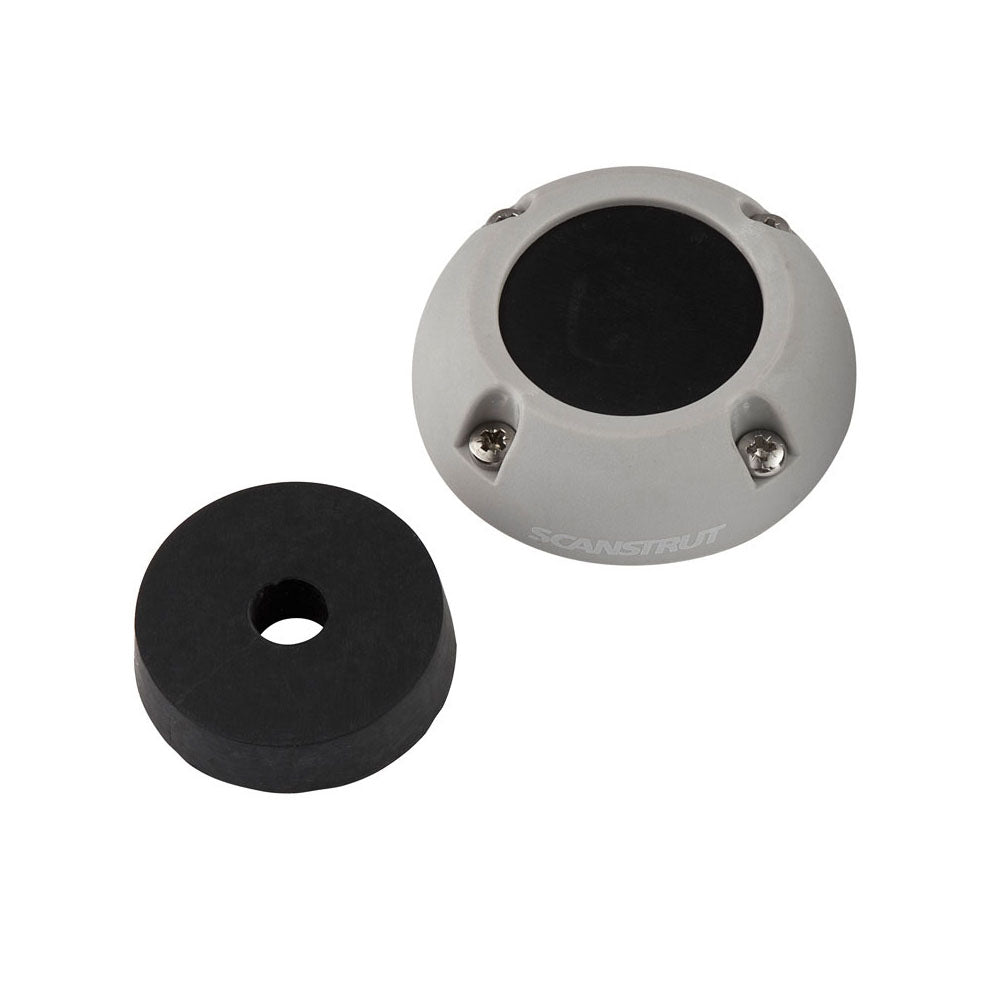

Scanstrut DS40-P large grey plastic cable gland dome with black rubber grommet seal beside it, three screws visible

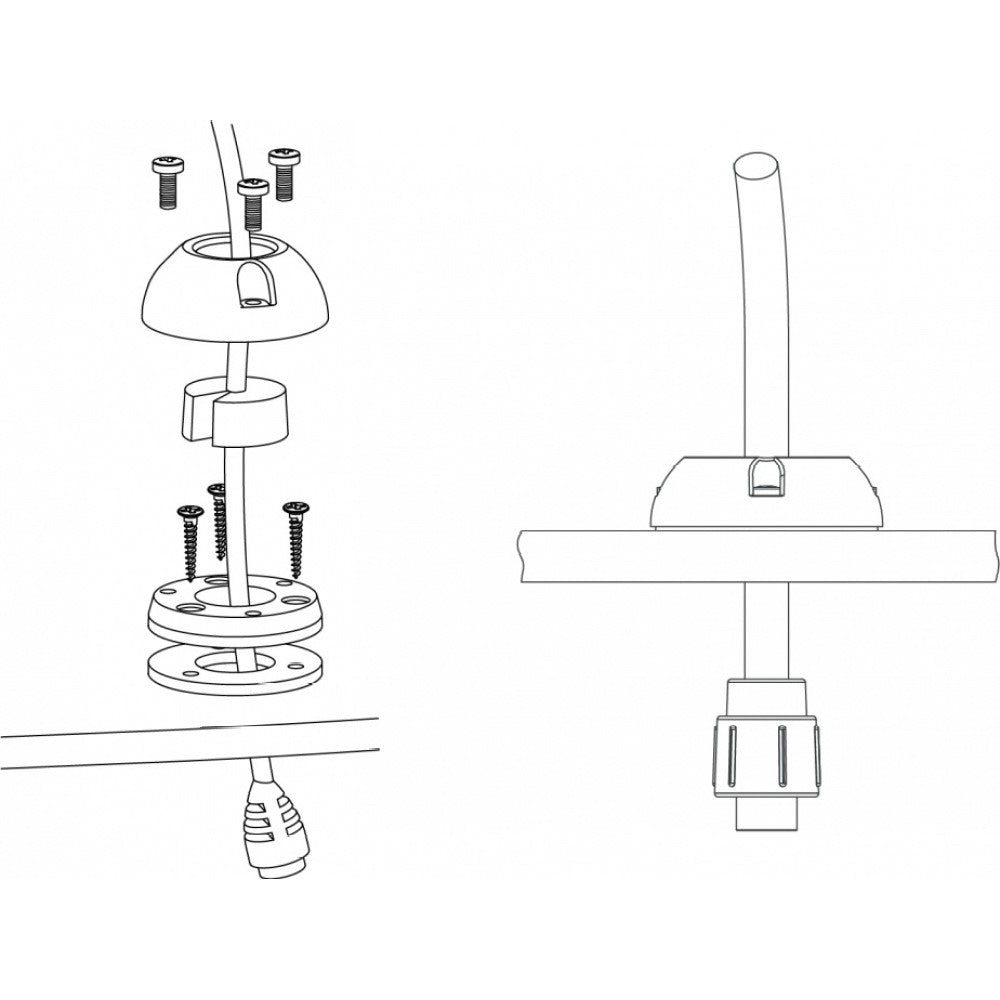

Scanstrut DS40-P cable seal line drawing, exploded assembly of dome, screws and clamp, plus fitted cross-section through deck

Scanstrut

Scanstrut DS40-P Large Cable Seal - Plastic - Grey

£26.24
Tax included. Shipping calculated at checkout.
DS40-P
The DS40-P is the Large vertical entry cable seal in grey high-impact plastic, sealing a single cable of 12-15mm with a 40mm opening that passes connectors of up to 40mm. It provides an IP68 watertight finish through a deck or bulkhead and fits without removing the connector. Bungs for the 12-15mm range are included, with no messy sealant.
✓ Available for collection or delivery in ~2 days

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The DS40-P is the Large size in the range, sealing a single cable of 12-15mm while its 40mm opening lets the bulkiest pre-fitted connectors, up to 40mm, pass through, so heavy plotter, radar and network runs go through one vertical entry without being cut down. It is the fast, easy and 100% waterproof way to bring heavy-gauge cabling below.

Moulded in grey high-impact plastic, the wider low-profile dome keeps a clean line on light decks and consoles while resisting impact and UV across seasons. Captive nuts make assembly quick and repeatable, and the supplied bungs suit cables across the 12-15mm range. There is no sealant on the bungs, so the install stays clean.

PRODUCT DETAILS

  • Watertight cable seal for routing a single large cable through a deck or panel
  • Suits cable diameters from 12 to 15 mm (0.4-0.59 in)
  • 69 mm flange with a 66 mm cut-out
  • Graduated bungs to match the exact cable size
  • No messy sealant needed on the bungs
  • Supplied with stainless fixings and gasket
  • Cable seal shell x1
  • Base x1
  • Gasket x1
  • Sealing bungs x2
  • No. 6 x 16 self-tapping screws x4
  • M4 x 10 bolt x1
  • Installation instructions

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

General

Cable typeSingle cable
Cable diameter range12-15 mm (0.4-0.59 in)
OrientationVertical (deck / top entry)
Waterproof ratingWatertight seal

Dimensions

Outer flange diameter69 mm (2.72 in)
Bore / cable opening diameter40 mm (1.57 in)
Height21.7 mm (0.85 in)

Fixing

Cut-out diameter66 mm (2.6 in)
Fixings4 x No. 6 x 16 self-tapping screws and 1 x M4 x 10 bolt (supplied)
Pilot hole2.5 mm (3/32 in) soft material, 3 mm (1/8 in) hard material

Materials

Trim materialPlastic
Sealing bungs2 x graduated bungs

No videos available for this product.

Can this cable seal be installed below the waterline?
No, these seals are designed to be installed above the waterline.
What's the best way to drill a blank bung?
Before drilling holes, freeze the blank seal in a freezer, this makes it very easy to accurately and neatly drill the hole. For best fit around cables drill a hole Ø1-2mm larger than the cable diameter. When drilling into a frozen blank seal this hole will look far too big but when the seal defrosts, it will be a good tight fit.
