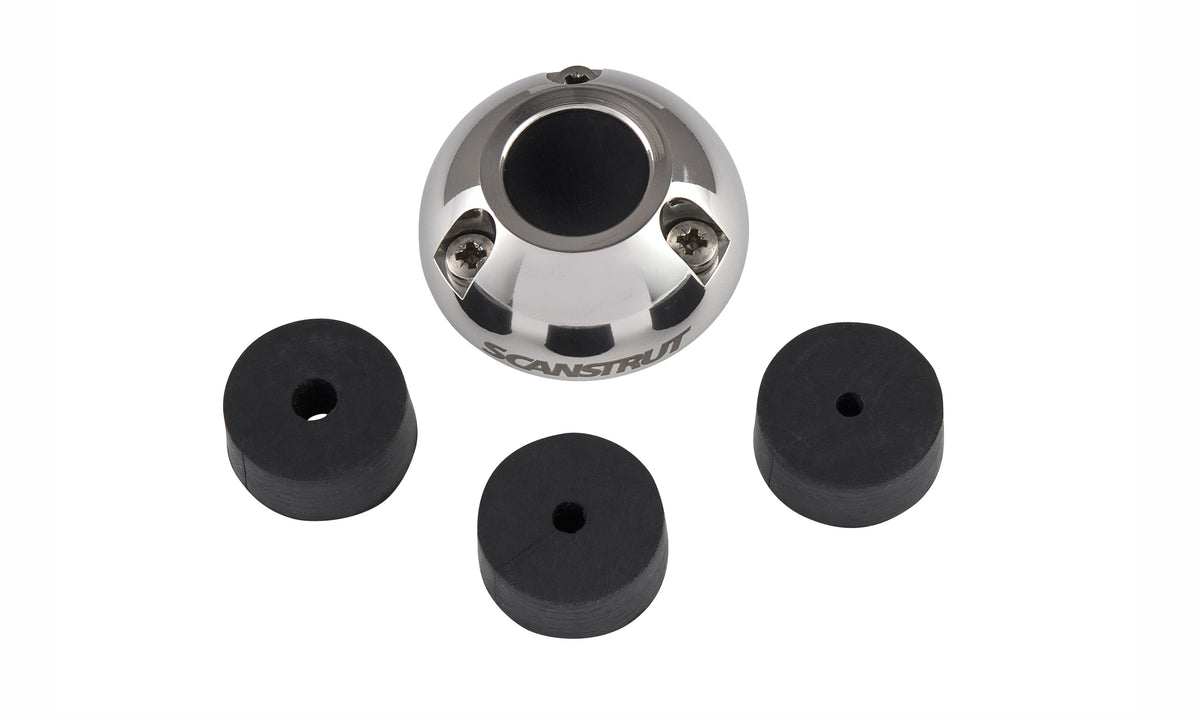

Scanstrut DS40-S large stainless cable seal dome with four black rubber inserts laid out in front

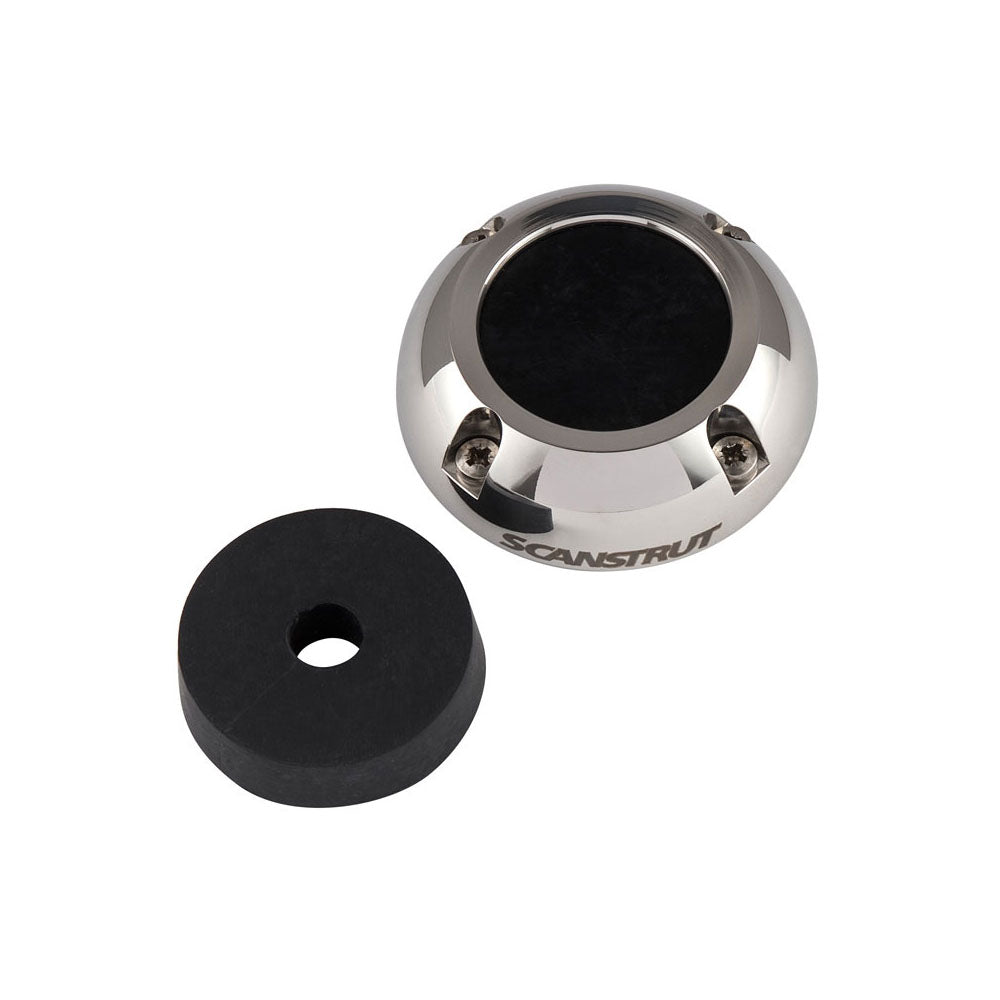

Scanstrut DS40-S large stainless cable seal angled view showing black insert on top and one large rubber insert

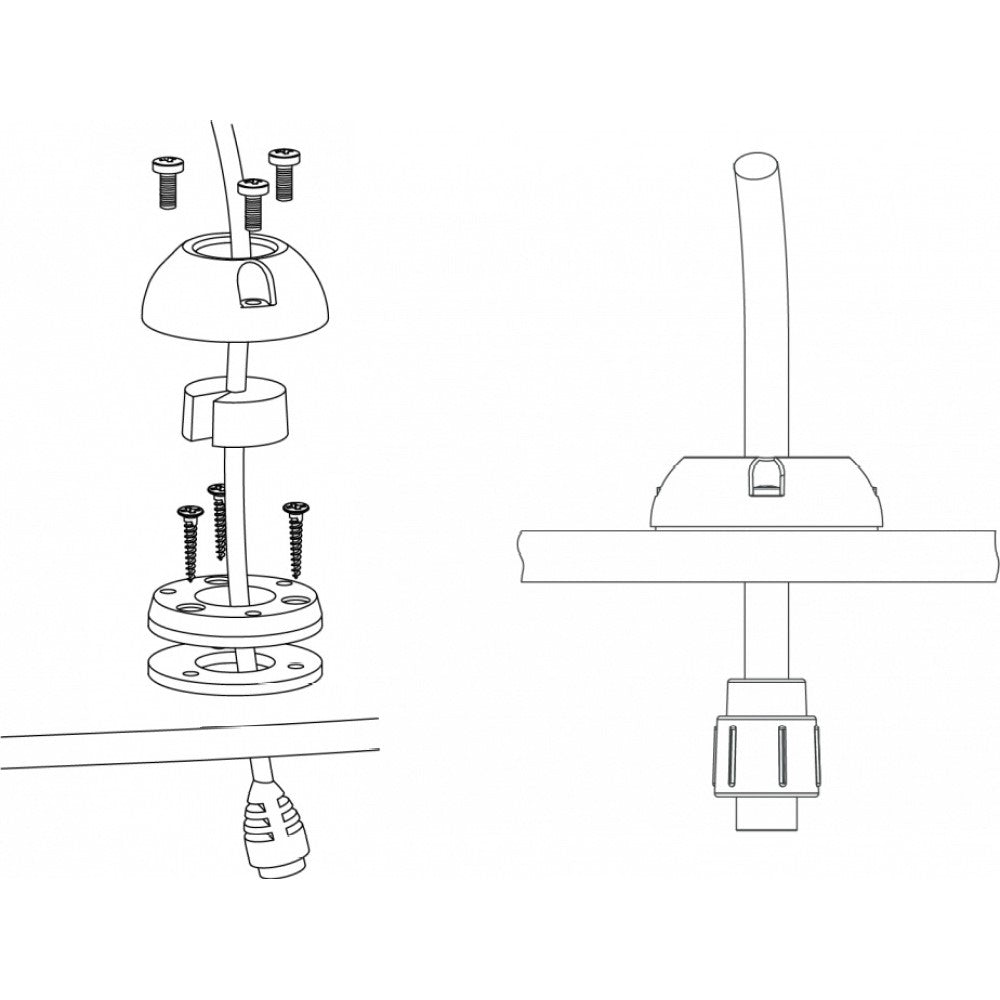

Scanstrut DS40-S cable seal exploded line drawing showing screws, dome, gasket and fitting through a deck panel

Scanstrut

Scanstrut DS40-S Large Cable Seal - Stainless Steel

£69.74
Tax included. Shipping calculated at checkout.
DS40-S
The DS40-S is the Large vertical entry cable seal machined in 316 stainless steel, sealing a single cable of 12-15mm with a 40mm opening that passes connectors of up to 40mm. It gives an IP68 watertight finish through a deck or bulkhead and installs without removing the connector. Bungs for the 12-15mm range are supplied, with no messy sealant required.
✓ In stock — ready for immediate collection or dispatch

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The DS40-S is the flagship Large seal in premium 316 stainless steel, sealing a single cable of 12-15mm while its 40mm opening lets connectors of up to 40mm pass through, where the biggest runs meet an exposed or highly visible entry point. It is the fast, easy and 100% waterproof route for heavy-gauge cabling below decks.

The marine-grade 316 housing resists salt-water corrosion and finishes the deck with a polished, hardware-grade face that matches stainless arches and hardtops. Captive nuts keep assembly quick and repeatable through multiple installations, while the included bungs suit cables across the 12-15mm range. No sealant is needed on the bungs, so the result stays clean and easy to service.

PRODUCT DETAILS

  • Watertight cable seal for routing a single large cable through a deck or panel
  • 316 stainless steel trim for a premium, corrosion-resistant finish
  • Suits cable diameters from 12 to 15 mm (0.4-0.59 in)
  • 69 mm flange with a 66 mm cut-out
  • Graduated bungs to match the exact cable size
  • No messy sealant needed on the bungs
  • Cable seal shell x1 (316 stainless steel)
  • Base x1
  • Gasket x1
  • Sealing bungs x2
  • No. 6 x 16 self-tapping screws x4
  • M4 x 10 bolt x1
  • Installation instructions

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

General

Cable typeSingle cable
Cable diameter range12-15 mm (0.4-0.59 in)
OrientationVertical (deck / top entry)
Waterproof ratingWatertight seal

Dimensions

Outer flange diameter69 mm (2.72 in)
Bore / cable opening diameter40 mm (1.57 in)
Height21.7 mm (0.85 in)

Fixing

Cut-out diameter66 mm (2.6 in)
Fixings4 x No. 6 x 16 self-tapping screws and 1 x M4 x 10 bolt (supplied)
Pilot hole2.5 mm (3/32 in) soft material, 3 mm (1/8 in) hard material

Materials

Trim material316 stainless steel
Sealing bungs2 x graduated bungs

No videos available for this product.

Can this cable seal be installed below the waterline?
No, these seals are designed to be installed above the waterline.
What's the best way to drill a blank bung?
Before drilling holes, freeze the blank seal in a freezer, this makes it very easy to accurately and neatly drill the hole. For best fit around cables drill a hole Ø1-2mm larger than the cable diameter. When drilling into a frozen blank seal this hole will look far too big but when the seal defrosts, it will be a good tight fit.
