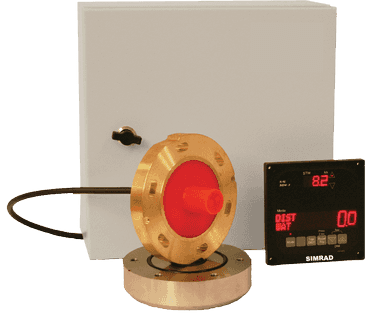

Simrad Commercial SAL R1 Easy tank, Speed Log. Speed and Distance Measuring Equipment (SDME)
Manufacturer Part No:
000-14048-001 |
£5,500.83 ex-VAT
SIMRAD R1 EASY TANK (FOR ALUMINIUM HULLS), Easy tank, Speed Log. Speed and Distance Measuring Equipment (SDME)- Speed through water as required for SOLAS vessels (300GT+ & passenger vessels).
Perfect for smaller vessels that need compact size and have limited installation space.
(For use on larger vessels, the ELC cabinet must be located close to the transducer. Note: the 10m transducer cable cannot be cut or extended).
Key Features
- High performance because of the proven Acoustic Correlation technology.
- Flexible calibration allows very accurate reading over the speed range.
- Easy set-up and calibration procedures from the bridge SD4 displays.
- Easy to install, with only a few mechanical parts and lightweight bottom parts. The transducer mounting is made from the inside of the hull.
- Space-saving with the small and compact bottom parts.
- Safe due to the rugged mechanical design and water tight cable.
- Closed-ended installation - no need for a watertight compartment or piping above sealine.
- Pressure tested and approved according to PN16 (24 bar, 240 m).
