Oceanic Systems 3416 -1200 A to +1200 A DC Shunt
£84.00
/
Tax included.
Shipping calculated at checkout.
3416
A 1200 A DC current shunt that provides a millivolt output for the Oceanic Systems 3410 DC Monitor.
✓
Available for collection or delivery in ~2 days
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

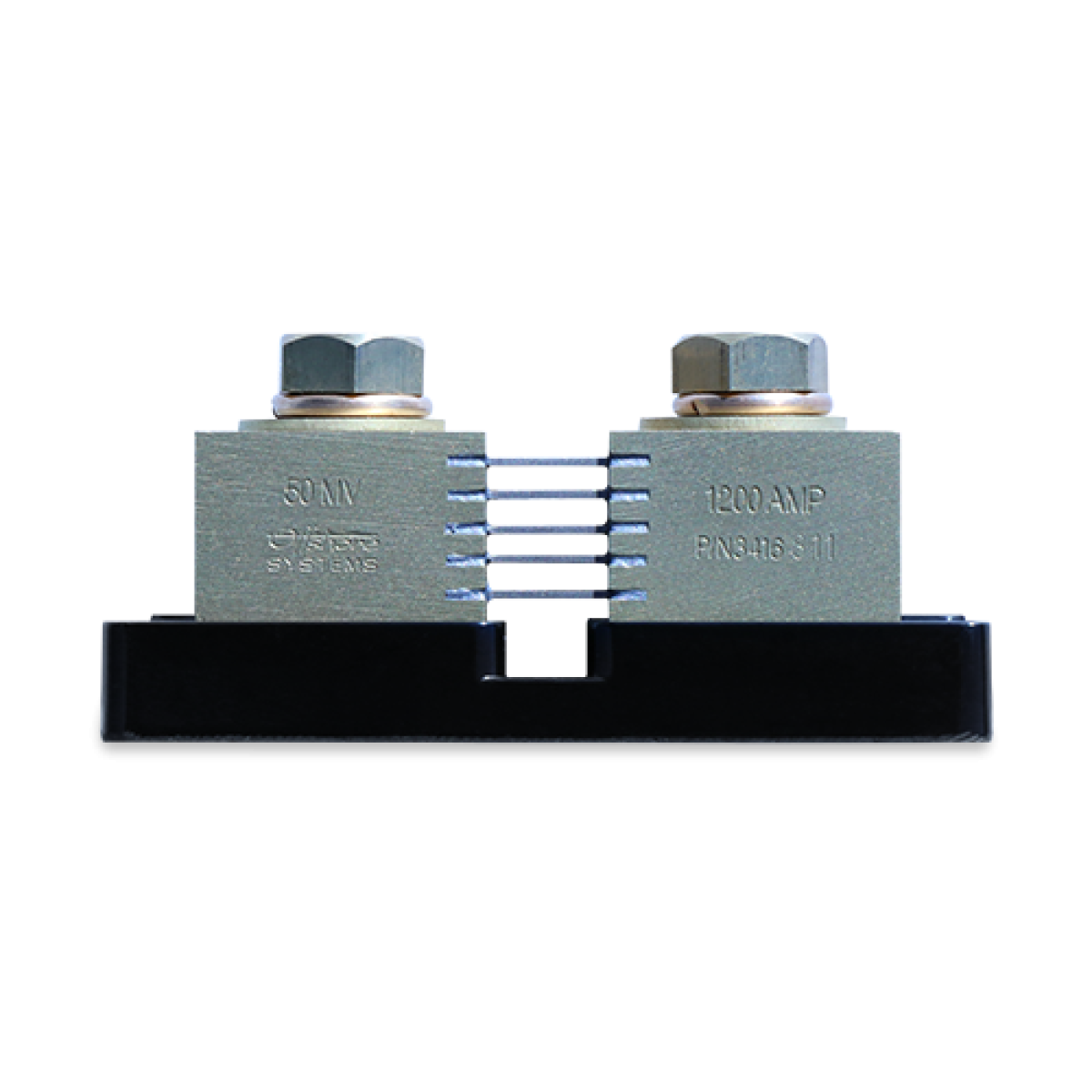

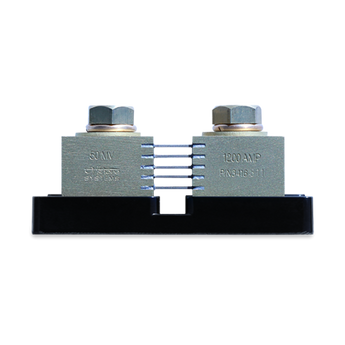

The Oceanic Systems 3416 DC Current Shunt measures direct currents from -1200 A to +1200 A and provides a low millivolt output proportional to the current passing through it. It is intended to be read by a suitably equipped Oceanic Systems measuring device such as the 3410 NMEA 2000 DC Monitor, giving accurate readings of high charge and discharge currents.
Rated for larger installations than the 500 A 3415, the 3416 is ideal where high current banks, inverters, thrusters or large charging sources are present. Wired in series with the main DC conductor, it lets the DC Monitor calculate current, state of charge and energy consumption. It is a passive component with no active electronics for dependable long term service.
PRODUCT DETAILS
- Measures DC current from -1200 A to +1200 A
- Millivolt output for Oceanic Systems measuring devices
- Designed for use with the 3410 NMEA 2000 DC Monitor
- Suited to high current banks, inverters and thrusters
- Passive, rugged construction for long service life
- Install in series with the main DC conductor
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Key specifications
| Current range | -1200 A to +1200 A |
| Output | Millivolt output proportional to current |
| Compatible monitor | Oceanic Systems 3410 DC Monitor |
Connection
| Installation | In series with main DC conductor |
No videos available for this product.
What is the Oceanic Systems 3416 used for?
The Oceanic Systems 3416 DC Current Shunt measures direct currents from -1200 A to +1200 A and provides a low millivolt output proportional to the current passing through it.
What are its main specifications?
Key specifications: Current range: -1200 A to +1200 A; Output: Millivolt output proportional to current; Compatible monitor: Oceanic Systems 3410 DC Monitor; Installation: In series with main DC conductor. The full list is in the specifications tab.
What do I need to use it with?
It is designed to work with the Oceanic Systems 3410 NMEA 2000 DC Monitor, as described in the product details.
