AquaAmp A0210-1 Rectangular Pad Surface Mount 10W Qi
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

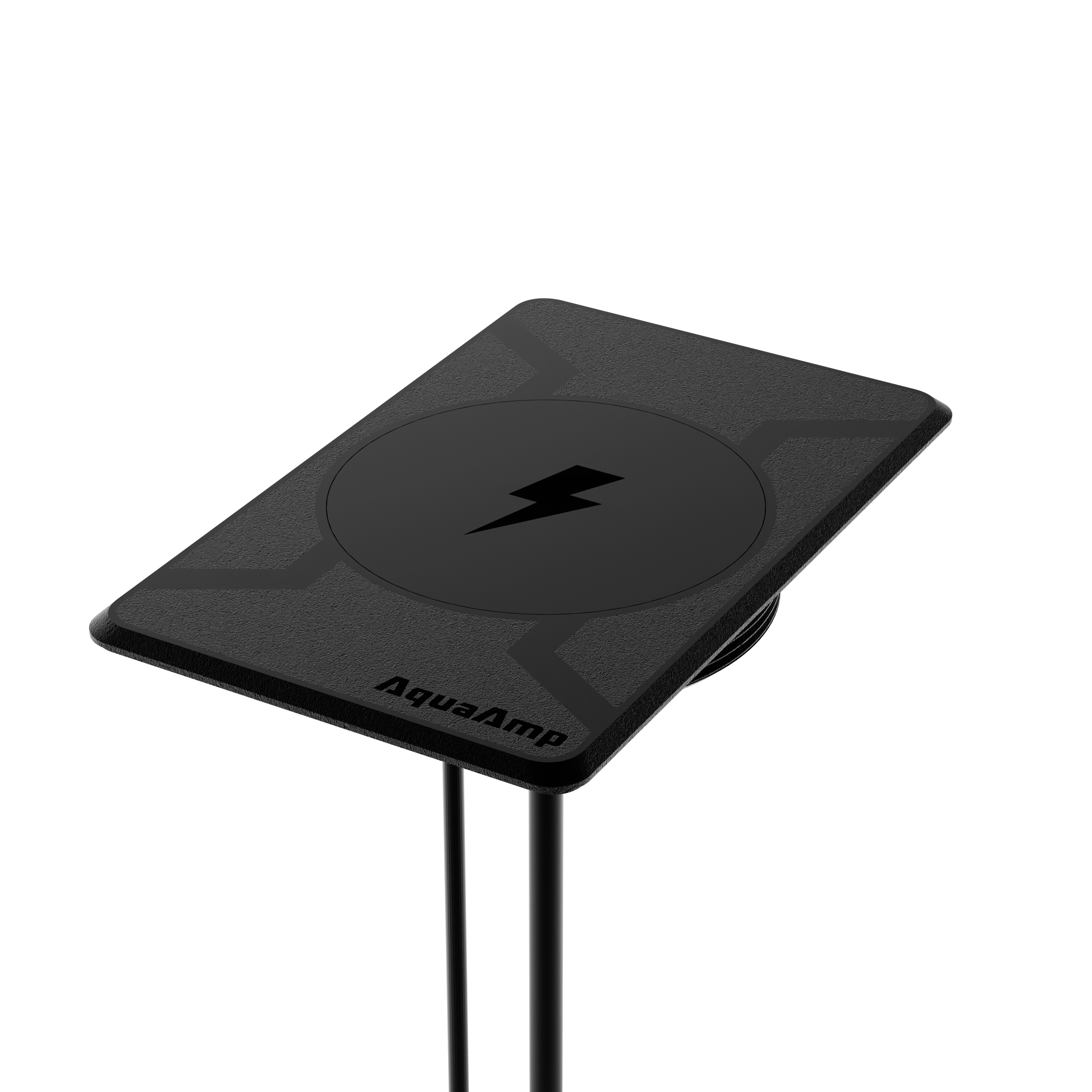

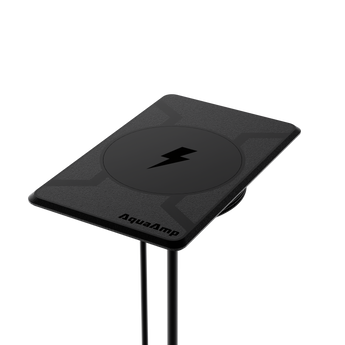

The AquaAmp A0210-1 is the Qi 10 W version with no magnets of the 200 Series rectangular surface-mount charging pad, a waterproof wireless phone charger for 12 V systems.
Series features: grippy rubber texture. Electronics are fully potted for IPX7 water protection.
The 200 Series is also offered as 10 W Qi (no magnets), Qi2 15 W (standard or extra-strength magnets) and Qi2.2 25 W (extra-strength magnets) under separate part numbers, so check the output and magnet strength suit your phone and use.
- Output: Qi 10 W
- Magnets: none (standard Qi charger)
- Waterproofing: IPX7 (fully potted electronics)
- Input: 12 V
- Digital output wire: 3.3 V @ 15 mA status indicator signal, can drive a status LED or external systems such as a vehicle ECU
- Orientation: portrait (landscape is a separate part number on the manufacturer's site)
- Dimensions (manufacturer): 70 mm (W) × 110 mm (H) × 14 mm (D)
- Mounting option: 3M adhesive version (the manufacturer lists a locknut-and-adhesive version under a separate part number)
PRODUCT DETAILS
- 10 W Qi wireless charging
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Product details
| Country of origin | Taiwan |
| Commodity code | 8504408500 |
| Range | 200 Series |
Performance
| Wireless charging output | 10 W Qi |
Design
| Style / mounting | Rectangular Pad Surface Mount |
