AquaAmp
AquaAmp A0315X-1 Hidden Top-Mounted 15W Qi2
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

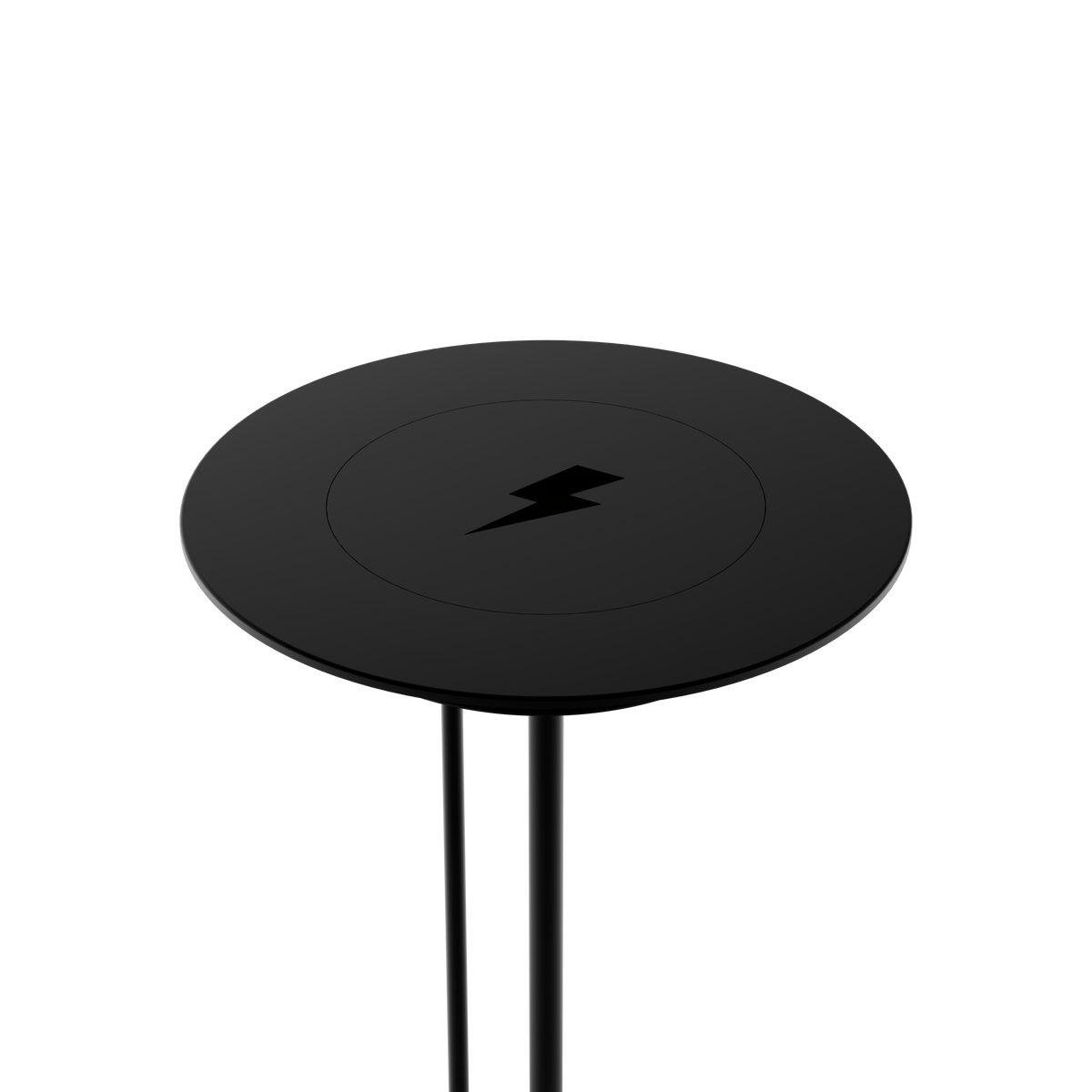

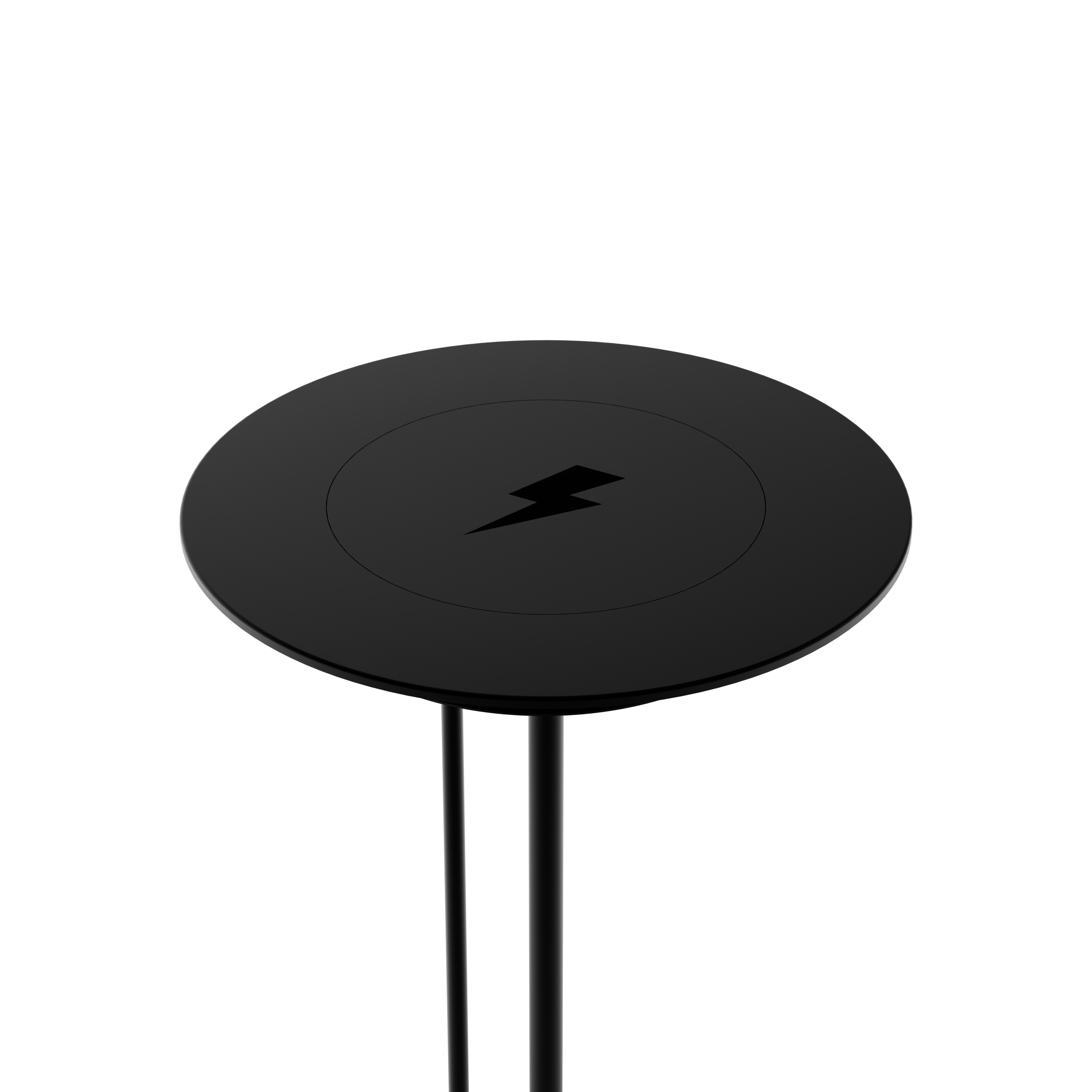

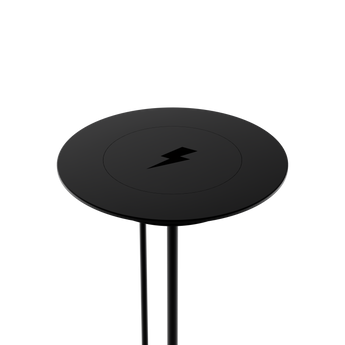

The AquaAmp A0315X-1 is the Qi2 15 W version with extra-strength magnets of the 300 Series hidden top-mounted (subsurface) charger, a waterproof wireless phone charger for 12 V systems.
Series features: works under any non-metallic surface under 3 mm thick. Electronics are fully potted for IPX7 water protection.
The 300 Series is also offered as 10 W Qi (no magnets), Qi2 15 W (standard or extra-strength magnets) and Qi2.2 25 W (extra-strength magnets) under separate part numbers, so check the output and magnet strength suit your phone and use.
- Output: Qi2 15 W
- Magnets: extra-strength magnets
- Waterproofing: IPX7 (fully potted electronics)
- Input: 12 V
- Digital output wire: 3.3 V @ 15 mA status indicator signal, can drive a status LED or external systems such as a vehicle ECU
- Dimensions (manufacturer): Ø95 mm × 14 mm (D)
- Mounting option: 3M adhesive version (the manufacturer lists a locknut-and-adhesive version under a separate part number)
PRODUCT DETAILS
- 15 W Qi2 wireless charging
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Product details
| Country of origin | Taiwan |
| Commodity code | 8504408500 |
| Range | 300 Series |
Performance
| Wireless charging output | 15 W Qi2 |
Design
| Style / mounting | Hidden Top-Mounted |
No videos available for this product.
No frequently asked questions for this product.
