AquaAmp

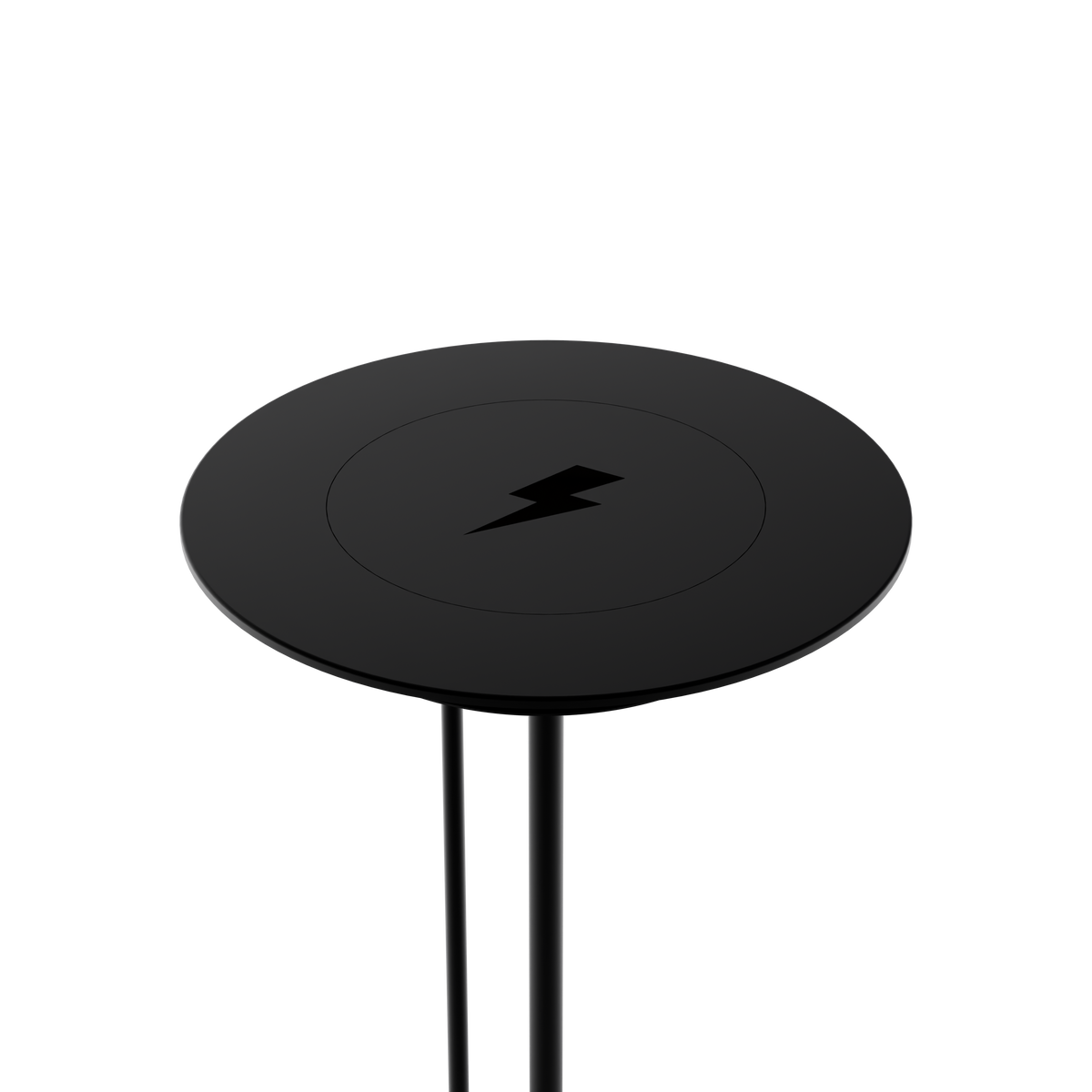

AquaAmp A0325X-1 Hidden Top-Mounted 25W Qi2.2
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

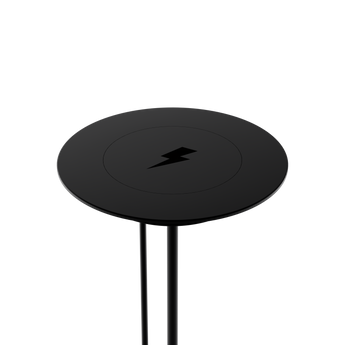

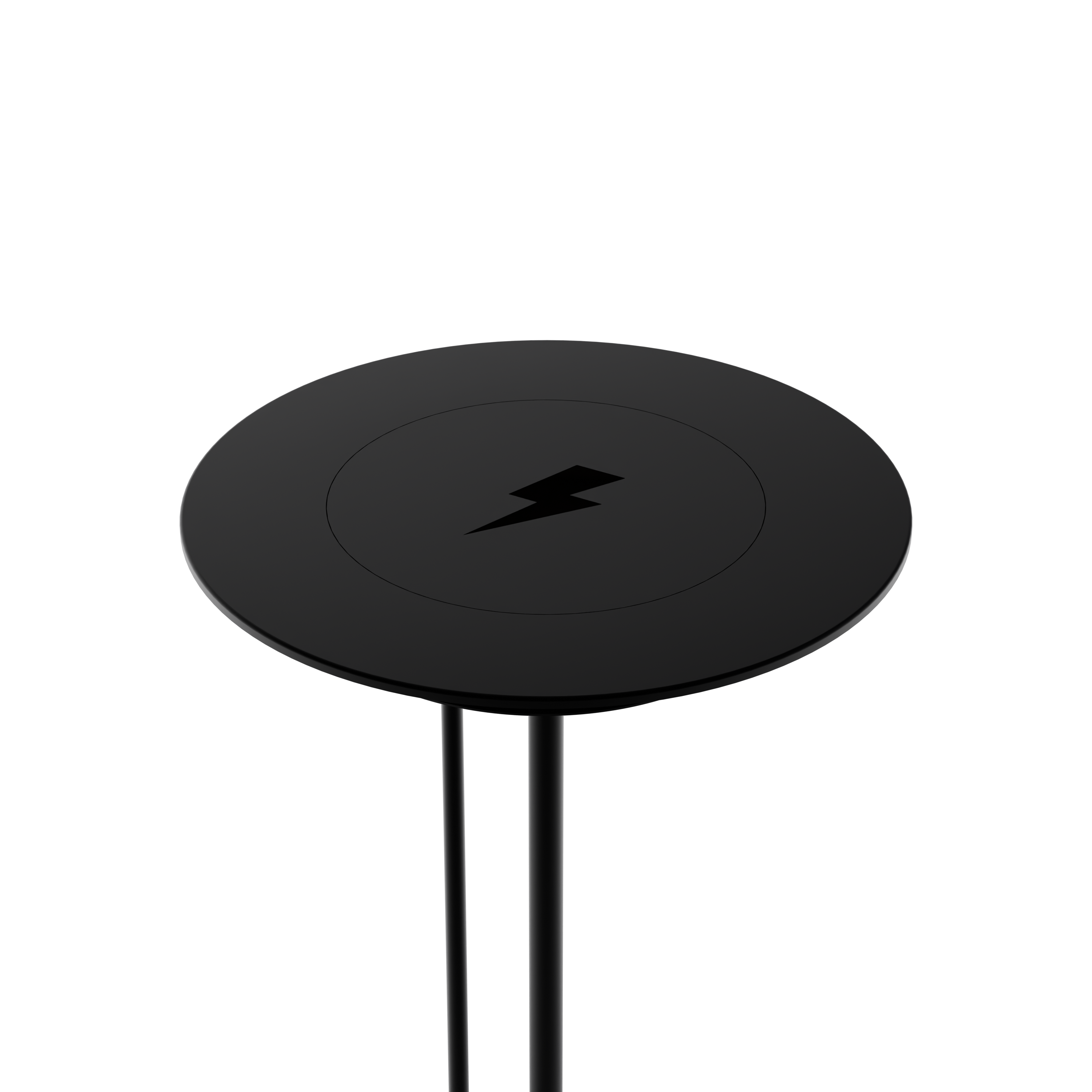

The AquaAmp A0325X-1 is the Qi2.2 25 W version with extra-strength magnets of the 300 Series hidden top-mounted (subsurface) charger, a waterproof wireless phone charger for 12 V systems.
Series features: works under any non-metallic surface under 3 mm thick. Electronics are fully potted for IPX7 water protection.
The 300 Series is also offered as 10 W Qi (no magnets), Qi2 15 W (standard or extra-strength magnets) and Qi2.2 25 W (extra-strength magnets) under separate part numbers, so check the output and magnet strength suit your phone and use.
- Output: Qi2.2 25 W
- Magnets: extra-strength magnets
- Waterproofing: IPX7 (fully potted electronics)
- Input: 12 V
- Digital output wire: 3.3 V @ 15 mA status indicator signal, can drive a status LED or external systems such as a vehicle ECU
- Dimensions (manufacturer): Ø95 mm × 14 mm (D)
- Mounting option: 3M adhesive version (the manufacturer lists a locknut-and-adhesive version under a separate part number)
PRODUCT DETAILS
- 25 W Qi2.2 wireless charging
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Product details
| Country of origin | Taiwan |
| Commodity code | 8504408500 |
| Range | 300 Series |
Performance
| Wireless charging output | 25 W Qi2.2 |
Design
| Style / mounting | Hidden Top-Mounted |
