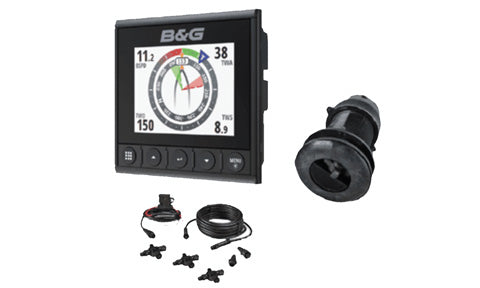

B&G Triton2 Speed, Depth Instrument Pack

Manufacturer Part No: 000-13298-001 | ID: 158114 | £649.96 ex-VAT
Price Checked √ - Free UK Delivery √

Triton² Digital Display: Multi-purpose sailing instrument and autopilot display with a 4.1-inch colour screen, optically bonded for zero condensation and featuring trans-flective LCD technology for exceptional contrast and visibility in all lighting conditions. 8mm mounting height matches other B&G MFD’s and system components.Combined with a Triton² Pilot Keypad, the display can also serve as a complete autopilot control system. Pack contains: Triton² 4.1 inch display, DST800 speed, depth transducer and NMEA 2000 Micro-C starter kit.

B&G Suncover Triton 2 Display

Suncover for B&G Triton² Display


ID: 159084 | £15.00 ex-VAT

B&G Triton 2 and Simrad IS42 Install Kit with Edge Bezel

B&G Triton 2 and Simrad IS42 Install Kit with Edge Bezel


ID: 159102 | £15.00 ex-VAT

Parts included

1. 1 x Display unit + Removable bezel

2. 1 x Micro-C Drop cable - 0.6 m (2’)

3. 1 x Micro-C T-Connector

4. 4 x Mounting screws

5. 1 x Suncover

6. Mounting template

7. Screw jig

B&G Triton2 Digital Display

Dimensions


B&G Triton2 Pilot Controller

Dimensions




Features

  • The all-in-one Smart Sensor
  • Depth, speed, and temperature in one compact housing
  • Available in NMEA 0183 and NMEA 2000® versions
  • 235 kHz frequency prevents mutual interference with other echosounders on the vessel
  • Plastic, bronze, or stainless steel housings available
  • Fast-response temperature sensor provides ±0.2°C (±0.1°F) accuracy
  • Available as a Smart Sensor at 235 kHz or an analog output sensor operating at 200 kHz or 235 kHz
  • Available in low-profile, countersunk, or beveled-edge housings
  •






Specifications

  • Weight:
    • 0.9 kg (2.0 lb)—Plastic
    • 1.6 kg (3.5 lb)—Bronze
    • 1.9 kg (4.2 lb)—Stainless Steel
  • Acoustic Window: Urethane
  • Hull Deadrise: Up to 22°
  • Data Update Rate: 1 per second
  • Minimum Depth Range: 0.5 m (1.6’)
  • Maximum Depth Range:
    • Up to 70 m (230’)—NMEA 0183
    • Up to 100 m (330’)—NMEA 2000
  • Pressure Rating: 3 m (10’)
  • Pulse Rate: 20,000 p/nm* (5.6 Hz per knot)
    • *p/nm = pulses per nautical mile
  • Supply Voltage:
    • 10 VDC to 25 VDC—NMEA 0183
    • 9 VDC to 16 VDC—NMEA 2000
  • Supply Current:
    • <40 mA &em; NMEA0183
    • <200 mA &em; NMEA2000
  • Standard Cable Length:
    • 10 m (33’)—NMEA 0183 cable
    • 6 m (20’)—NMEA 2000 cable
  • Temperature Sensor Accuracy: ±0.5°C (±1.8°F)
  • Temperature Sensor Range: -10°C to 40°C (14°F to 104°F)
  • NMEA 2000® Load Equivalency Number (LEN): 4
  • CE Regulation: Complies to IERC60945
  •
