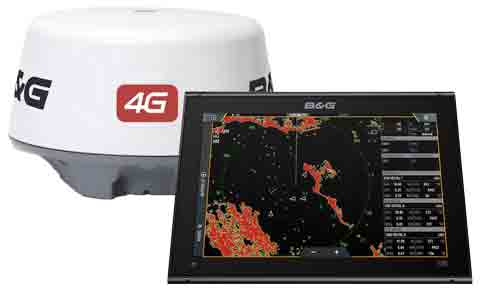

B&G Vulcan 12R 12-Inch Chartplotter Radar Sonar - Broadband 4G Radar

B&G Vulcan 12R 12-Inch Chartplotter Radar Sonar - Broadband 4G Radar

Manufacturer Part No: 000-14157-001 |
Price Checked √ - Free UK Delivery √

B&G Vulcan 12 is a 12-inch touch screen chartplotter built specifically for sailors. Packed with sailing specific functions such as B&G’s Award Winning SailSteer™ and Sailing Time, sailors can see all key sailing data at a glance. SailSteer allows sailors to view crucial sailing data on one handy screen or alternatively overlaid on your position on the chartplotter screen. GoFree™ Compatible with built in Wi-Fi functionality. Advanced NMEA2000® networking. Broadband Radar™ and ForwardScan™ ready. Comes with B&G 4G BB Radar Kit

B&G, Simrad 4 Pin Power Cable

Power Cable 4 Pin to 4 bare wires for Power in, Power control bus and external alarm 2 meters (6.5 ft)

£35.46 ex-VAT

Parts included

1. Display unit

2. Panel mounting kit
  • Gasket
  • Mounting screws (4x #4 x 3/4" PN HD SS)

3. Sun cover

4. Cable - Combined power and NMEA 2000 cable - 5" unit - Power cable - 7", 9" and 12" units

5. Fuseholder and fuse (3 A, ATC-blade)

6. Protective caps -2x - 5" unit 3x - 7", 9" and 12" units

7. Documentation package

• Installation manual

• Quick guide • Mounting template


Bracket

8 A: Bracket mounting kit - 5" unit

• Quick Release Bracket

• Mounting screws (4x #10 x 3/4" PN HD SS)

B: Bracket mounting kit - 7" and 9" units

• U bracket (plastic)

• Mounting screws (4x #10 x 3/4" PN HD SS)

• Bracket knobs (2x)

C: Bracket mounting kit - 12" unit

• U bracket (metal)

• Mounting screws (4

Dimensions

B&G Vulcan 5FS


Dimensions

B&G Vulcan 7R

Dimensions

B&G Vulcan 9FS



Dimensions

B&G Vulcan 12R

In the Box

1. 3G or 4G Broadband Radar

2. Radar interconnection cable

Lowrance 10 meter

B&G and Simrad 20 meter

3. Option heading sensor required for MARPA and chart overlay (not included)

4. RI10 Radar interface box

5. Ethernet cable: shipped with 1.8 m (6 ft)

6. Display: Simrad NSO, NSE or NSS / B&G Zeus / Lowrance HDS (not included).

7. SimNet or NMEA2000 data network (not included)

Dimensions for

B&G 3G and 4G

Lowrance 3G and 4G

Simrad 3G and 4G


Underside Dimensions

A. Cable entry area

B. Cable retention channel

C. Bolt holes x 4 M8 x 30 mm

D. Breather


RI 10 Dimensions

Radar interface box
