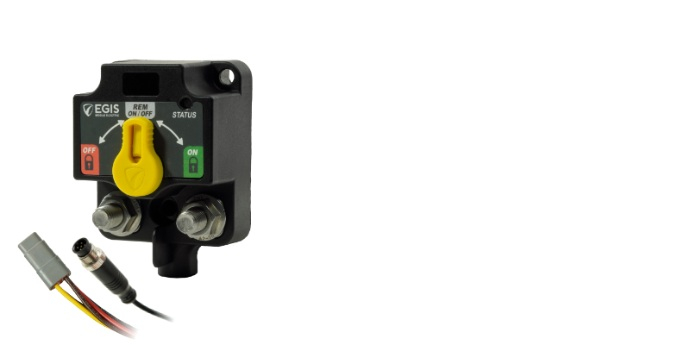

EGIS Single XD – NMEA 2000 Relay with Knobs | 9811-4500

EGIS Single XD – NMEA 2000 Relay with Knobs | 9811-4500

Manufacturer Part No: 9811-4500 | £199.99 ex-VAT

NMEA 2000 controllable whilst also responding to optional discrete remote control switches

Reports switch status, status of manual overide knobs and battery voltage on input studs to the NMEA2000 networrk

Simple Programming via DIP for NMEA2000 instance selection and battery voltage reporting, & cole/open set points on ACR in Dual and Triple XDs

Supports single and multiple engines installations with dual start / engine isolation inputs.

35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.

Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays, supports 2 or 3 battery systems with standard busbar interconnect accessories.

Improved replacement / alternative to legacy solenoids and remote battery switches. Wire for wire compatible with Blue Sea ML-solenoid and ML-remote battery switch products.

Forward facing input studs make landing large wires easy and protective cover with integrated label recesses enables easy identification while providing anti-contact short protection

Feature Summary

Bullet-proof Construction:

  • Sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere.
  • Stainless steel cable lug studs.
  • Large mounting holes accept 1/4-20 / M6 attachment hardware.

Intuitive Manual Control option simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.

Plug & Play Compatible with Legacy Competitor Products:
Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays.

90-95% Less Off-State Current:
Compared to competitive products and system solutions that require multiple devices for similar functionality



Specification Details
Manufacturer EGIS Electrical Systems
Model Number 9811-4500
Product Name Single XD – NMEA 2000 Relay w/Knobs
Continuous Current Rating 500 A
Cranking Current Rating 1600 A (10 sec)
Input Voltage 12 V / 24 V DC systems
Control Interface NMEA 2000
Manual Override Dual rotary knobs
Status Indication LED feedback
Environmental Rating IP67 / IP6K9K
Operating Temperature –40 °C to +85 °C
Mounting Panel or surface mount
Dimensions (approx.) 3 × 4 × 8 in
Weight (approx.) 1.2 lb
GTIN (UPC) 850067590200
