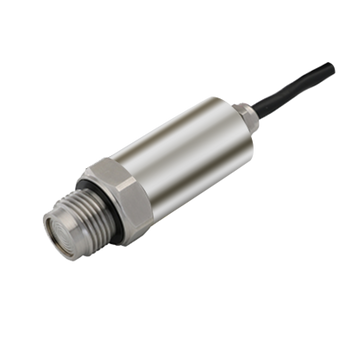

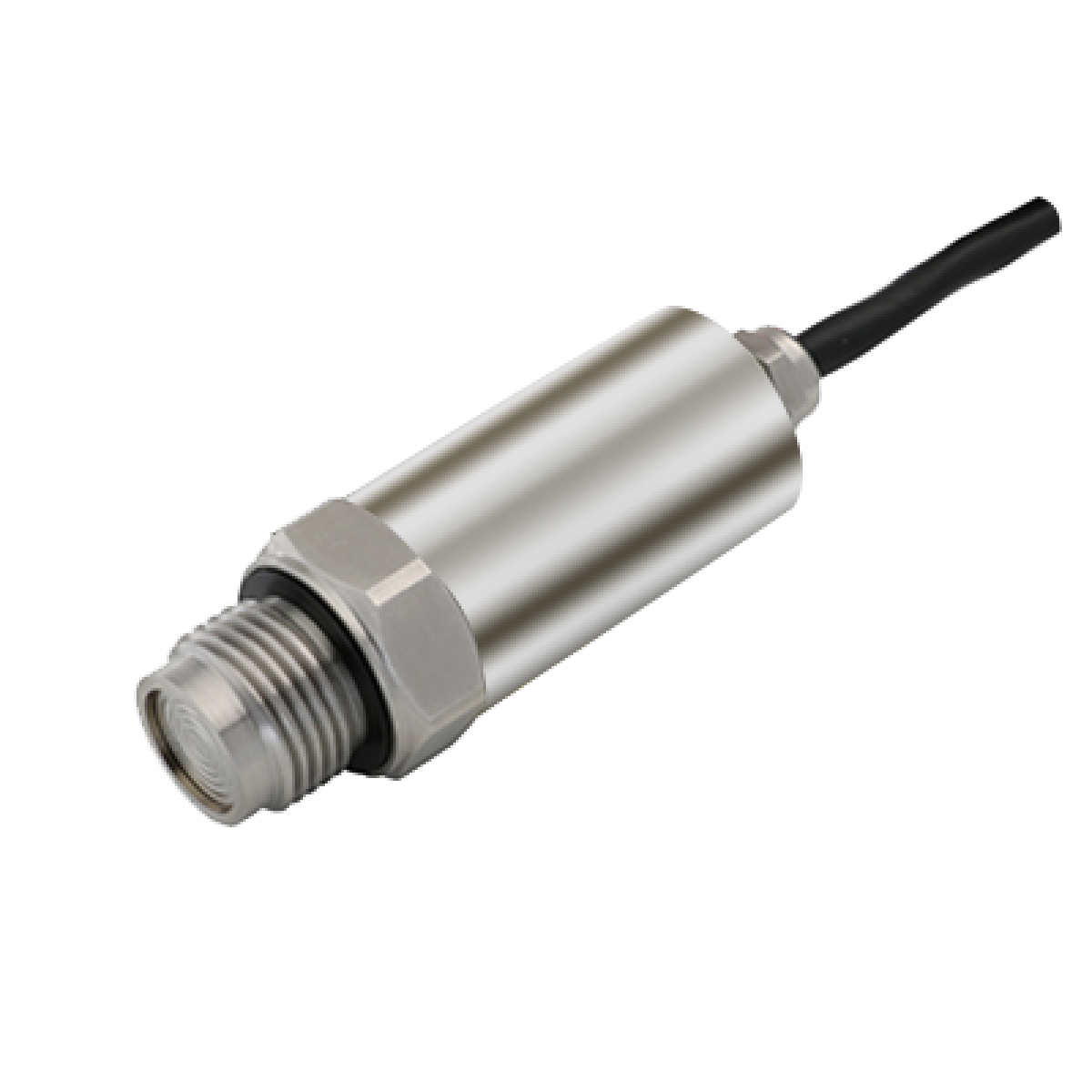

Oceanic Systems 4670 Fuel/Fresh Water 0-2 m Side Mount Pressure Transmitter
£198.00
/
Tax included.
Shipping calculated at checkout.
4670
A side mount hydrostatic sensor for fuel or fresh water tanks up to 2 metres deep with 4-20mA output.
✓
Available for collection or delivery in ~2 days
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Oceanic Systems 4670 Side Mount Hydrostatic Sensor measures fuel or fresh water level in a tank up to 2 metres deep and provides a 4-20mA output. It mounts through the side of the tank rather than being submerged, and works on the piezoresistive principle with an isolated, silicone oil filled construction able to sense a wide range of media.
The sensor has a stainless steel 316L diaphragm, a G1/2 inch pressure connection and a direct cable output, with a -10 to 70 degrees C compensated temperature range and zero and span adjustment. Combined with an Oceanic Systems 4291 tank level adaptor it reports tank level onto the NMEA 2000 network for display on compatible instruments.
PRODUCT DETAILS
- For fuel or fresh water tanks
- Depth range 0 to 2 metres
- Side mount, G1/2 inch connection
- 4-20mA output
- Stainless steel 316L diaphragm
- Zero and span adjustable
- Piezoresistive, silicone oil filled
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Key specifications
| Application | Fuel or fresh water |
| Depth range | 0 to 2 metres |
| Output signal | 4-20mA |
| Accuracy at 25 C | plus or minus 0.5 percent FS |
Electrical
| Supply voltage (4-20mA) | 12 to 36 V DC |
| Zero and span adjustment | Yes |
Environmental
| Compensated temperature range | -10 to 70 C |
Physical
| Diaphragm material | Stainless steel 316L |
| Enclosure material | Stainless steel 304 |
Connection
| Pressure connection | G1/2 inch |
| Electrical connection | Direct cable |
No videos available for this product.
What is the Oceanic Systems 4670 used for?
The Oceanic Systems 4670 Side Mount Hydrostatic Sensor measures fuel or fresh water level in a tank up to 2 metres deep and provides a 4-20mA output.
What are its main specifications?
Key specifications: Application: Fuel or fresh water; Depth range: 0 to 2 metres; Output signal: 4-20mA; Accuracy at 25 C: plus or minus 0.5 percent FS; Supply voltage (4-20mA): 12 to 36 V DC. The full list is in the specifications tab.
What do I need to use it with?
It is designed to work with the Oceanic Systems 4291 NMEA 2000 4-20 mA Tank Level Adaptor, as described in the product details.
What supply voltage does it need?
The supply voltage is 12 to 36 V DC.
