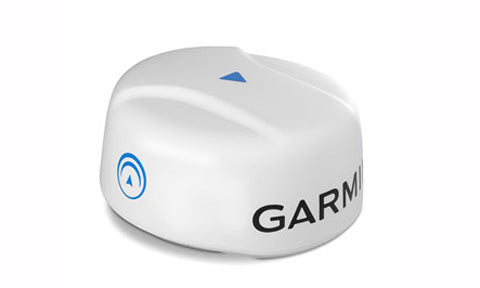

GMR Fantom 18 Solid State 18 inch Radome with 15m Power and Data Cables

GMR Fantom 18 Solid State 18 inch Radome with 15m Power and Data Cables

Manufacturer Part No: 010-01706-00 | £1,581.63 ex-VAT
Price Checked √ - Free UK Delivery √

The 18-inch, 40 W solid-state Garmin GMR Fantom 18 dome radar features MotionScope technology, which uses the Doppler effect to detect and highlight moving targets to help you avoid potential collisions. Fully integrates with selected Garmin chartplotters.

Garmin GMR Fantom 18 Solid State 18 inch Radome with 15m Power and Data Cables

The 18-inch, 40 W solid-state Garmin GMR Fantom 18 dome radar features MotionScope technology, which uses the Doppler effect to detect and highlight moving targets to help you avoid potential collisions. Fully integrates with selected Garmin chartplotters.


High-power 40 W Radar with 5.2 Degree Beam

You get excellent close- and long-range target detection ranging from as close as 6m to 48 nm, even in fog or rain. Its 5.2 degree horizontal beamwidth provides a high resolution image and high antenna gain so it can pick out targets at a distance. The result is this radar paints a clear, concise image of the shoreline, other vessels and impending weather — right on your Garmin chartplotter. You get consistent target positions, excellent target separation and reliable operation. Its 8-bit true colour imagery also helps you discriminate large targets from small ones and enhances target separation. Radar data is overlaid onto charts (autopilot or heading sensor recommended). Low power consumption, instant turn on and no delay from warming up as with magnetron radars. Rotation speeds of 24 for reduced power consumption and 48 rpm to provide fast screen updates.


MotionScope Doppler Technology

GMR Fantom radars use the Doppler effect to detect and highlight moving targets to help you avoid potential collisions, find flocks of birds and track weather formations. The Doppler effect is the frequency shift in the radar echo due to the relative motion of the target. This allows for instant detection of any targets moving toward or away from the radar. MotionScope highlights the moving targets in different colours on the radar display so you can navigate around other boats or severe weather, or toward fishing spots where birds are feeding at the surface.


Target Size

Allows you to adjust the size of objects on the radar image.


Auto Bird Gain

Fishermen know, when you find birds at the water’s surface, you’ll also find fish. To further improve your fishing experience, use Auto Bird Gain, which helps to locate birds at the water’s surface where baitfish are also likely to be found.


Echo Trails

A historical “trail” is left on the screen to help you quickly and easily identify moving targets and potential collision threats.




Dual Range

Single radar antenna is capable of providing split screen images on your chartplotter for both close and long range.


Dual Radar Support

Provides redundancy and the ability for each display unit on the boat to select data from 1 of 2 different radar sources.


Dynamic Auto Gain

Dynamic Auto Gain automatically adjusts gain levels to optimum settings for harbours, near shore and offshore in open waters.


Dynamic Sea Filter

Dynamic Sea Filter automatically adjusts gain to calm, medium and rough sea conditions.


Radar Overlay

Overlays the radar image on the chartplotter’s map page.


MARPA Target Tracking

Mini-automatic radar plotting aid (MARPA) tracks up to 10 selected targets, helping you keep track of other vessels and avoid collisions.


Guard Zone

Set the safety zone and receive an alarm when an object enters the zone.


VRM and EBL

Variable range markers (VRM) and electronic bearing lines (EBL) allow rapid measurements of distance and bearing to vessels and land.


It’s Your Time

All Garmin radars are designed to be easy to install and easy to use. There are no complex user settings to adjust; just install your radar and start using it. You can rely on the GMR Fantom radar to provide reliable, optimum performance in all conditions. Because, it’s your time.

  • GMR Fantom 18
  • Mounting hardware kit
  • Power cable 15 m (49.21 ft)
  • Network cable 15 m (49.21 ft)
  • Installation instructions
  • Mounting template
