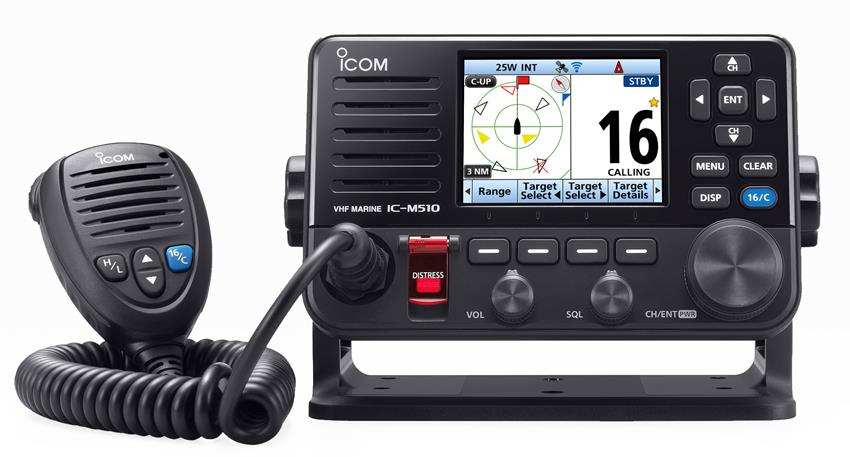

Icom IC-M510E VHF/DSC Marine Radio with Smartphone Control
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Icom IC-M510E is an award-winning fixed-mount VHF/DSC marine radio that brings smartphone connectivity to the helm. Using the dedicated RS-M500 app for iOS and Android, up to three smart devices can act as a wireless microphone or remote controller over the radio's built-in WLAN. The iF Design Award 2022 winning body installs in either panel or trunnion mount.
This is the predecessor to the IC-M510 EVO. For built-in NMEA 2000 and 25 W two-way hailer/foghorn, choose the IC-M510 EVO (or add the optional CT-M500 interface to this model where required).
PRODUCT DETAILS
- Radio control and intercom via smartphone (RS-M500 app, up to 3 devices)
- Award-winning iF Design Award 2022 styling; panel or trunnion mount
- Built-in NMEA 2000 connectivity
- Built-in Class D DSC with dedicated distress button
- Loud 25 W two-way hailer / 20 W RX hailer and foghorn
- Wide viewing angle colour TFT LCD with night mode
- Active Noise Cancelling technology
- Integrated GNSS receiver (internal or optional UX-241 antenna)
- IP68 advanced waterproofing (1 m depth for 60 minutes)
- HM-205RB speaker-microphone
- Microphone hanger
- DC power cable
- Mounting bracket kit
- Flush mount gasket
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
General
| Frequency range TX | 156.025-161.425 MHz |
| Frequency range RX | 156.500-162.000 MHz |
| Frequency DSC | 156.525 MHz |
| Usable channels | INT, USA, ATIS channels |
| Type of emission | 16K0G3E (FM), 16K0G2B (DSC) |
| Power supply requirement | 12.0 V DC (10.8-15.6 V DC) |
| Current drain (TX 25 W output) | 5.0 A |
| Current drain (RX max. audio, radio only) | 1.6 A |
| Current drain (with ext SP, RX hailer and HM-195) | 7.3 A |
| Operating temperature range | -20 C to +60 C |
| Antenna impedance | 50 ohm |
| Dimensions (W x H x D) | 175 x 110 x 53 mm |
| Weight (approx.) | 750 g (not including microphone) |
Transmitter
| Output power (at 12.0 V DC) | 25 W, 1 W |
| Max. frequency deviation | +/-5 kHz |
| Frequency error | Less than +/-0.5 kHz |
| Spurious emissions | Less than 0.25 uW |
| Residual modulation | More than 40 dB |
| Adjacent channel power | More than 70 dB |
Receiver
| Sensitivity (20 dB SINAD) | -5 dBu emf typical |
| Sensitivity DSC (1% BER) | -1 dBu emf typical |
| Adjacent channel selectivity | More than 75 dB |
| Spurious response | More than 75 dB |
| Intermodulation | More than 75 dB |
| Hum and noise | More than 40 dB |
| Audio output power (10% distortion, 4 ohm) | More than 15 W (external speaker), 20 W typ (RX hailer), 25 W typ (hailer) |
Wireless LAN
| Standard | IEEE 802.11 b/g/n |
| Authentication and encryption | WEP (64/128 bit), WPA-PSK (TKIP), WPA2-PSK (AES) |
| Channels | 1-13 (2.4 GHz band) |
| Output power | Less than 10 mW/MHz |
Environmental
| Ingress protection | IP68 (dust-tight and waterproof, 1 m depth for 60 minutes) |
| MIL-STD | MIL-STD-810G (and equivalent C, D, E, F) |
