JBL Marine
JBL Marine PA1254 4 x 75W channel amplifier, class D, ultra compact
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

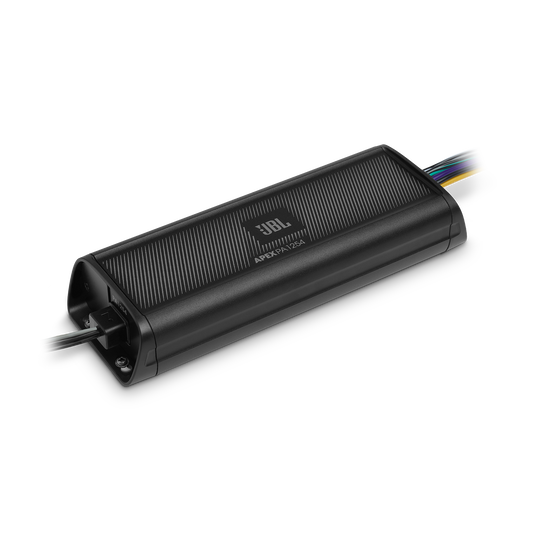

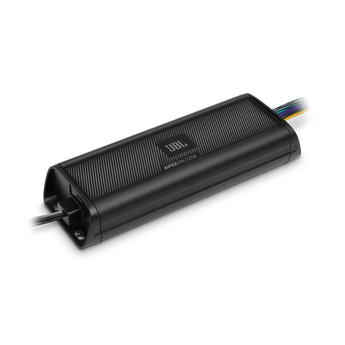

The JBL PA1254 is a compact 4-channel Class D amplifier from the JBL Apex range, described by JBL as weather-resistant and suited to car, marine and powersports audio systems.
It has an ultra-compact aluminium chassis and a conformal-coated PCB for outdoor environments, selectable front and rear electronic crossovers, and both high-level and low-level inputs, so it can be paired with most source units.
- Channels: 4, Class D
- RMS power: 75 W x 4 at 4 ohm; 125 W x 4 at 2 ohm; 250 W x 2 bridged at 4 ohm
- Maximum power: 1,250 W peak
- Frequency response: 20 Hz - 20 kHz
- Crossovers: selectable front and rear, 60 / 80 / 120 Hz at 12 dB per octave
- Inputs: high-level and low-level
- Fuse rating: 40 A
- Supplied with stainless steel mounting hardware, 4 high-level input adapters, 4 cable ties and a spare fuse (per JBL spec sheet)
PRODUCT DETAILS
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Product details
| Country of origin | China |
| Commodity code | 8517620050 |
| Weight | 1.3 kg |
| Barcode (EAN) | 6925281953323 |
| Type | Marine amplifier, class D, ultra compact |
Performance
| Output | 4 x 75 W channels |
